Daikin CTKM28PV2S Service Manual page 5

Si041351ED
Step

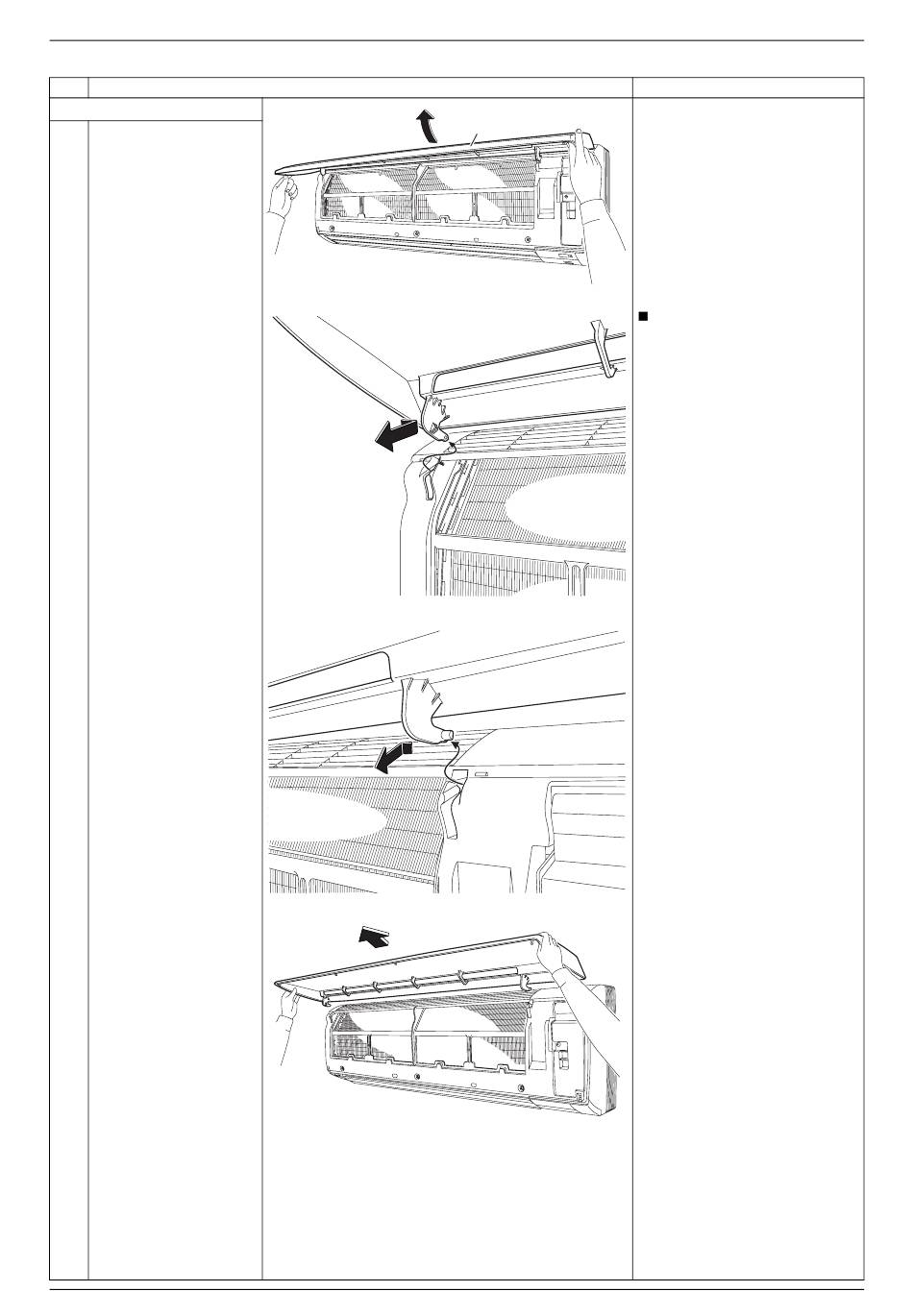

3. Remove the front panel.
1 Open the front panel
over the position where
it stops.
2 Slide the left rotary
shaft to the right and
release it.
3 Release the right rotary
shaft in the same way.
4 Remove the front panel.
Removal Procedure
Procedure
Front Panel
Air Filters / Front Panel
Points
(R16456)
When reassembling the front
panel, fit the right and left
rotary shafts one by one into
the grooves and fully push
them into position.
(R9480)
(R9481)
(R16451)
