Step

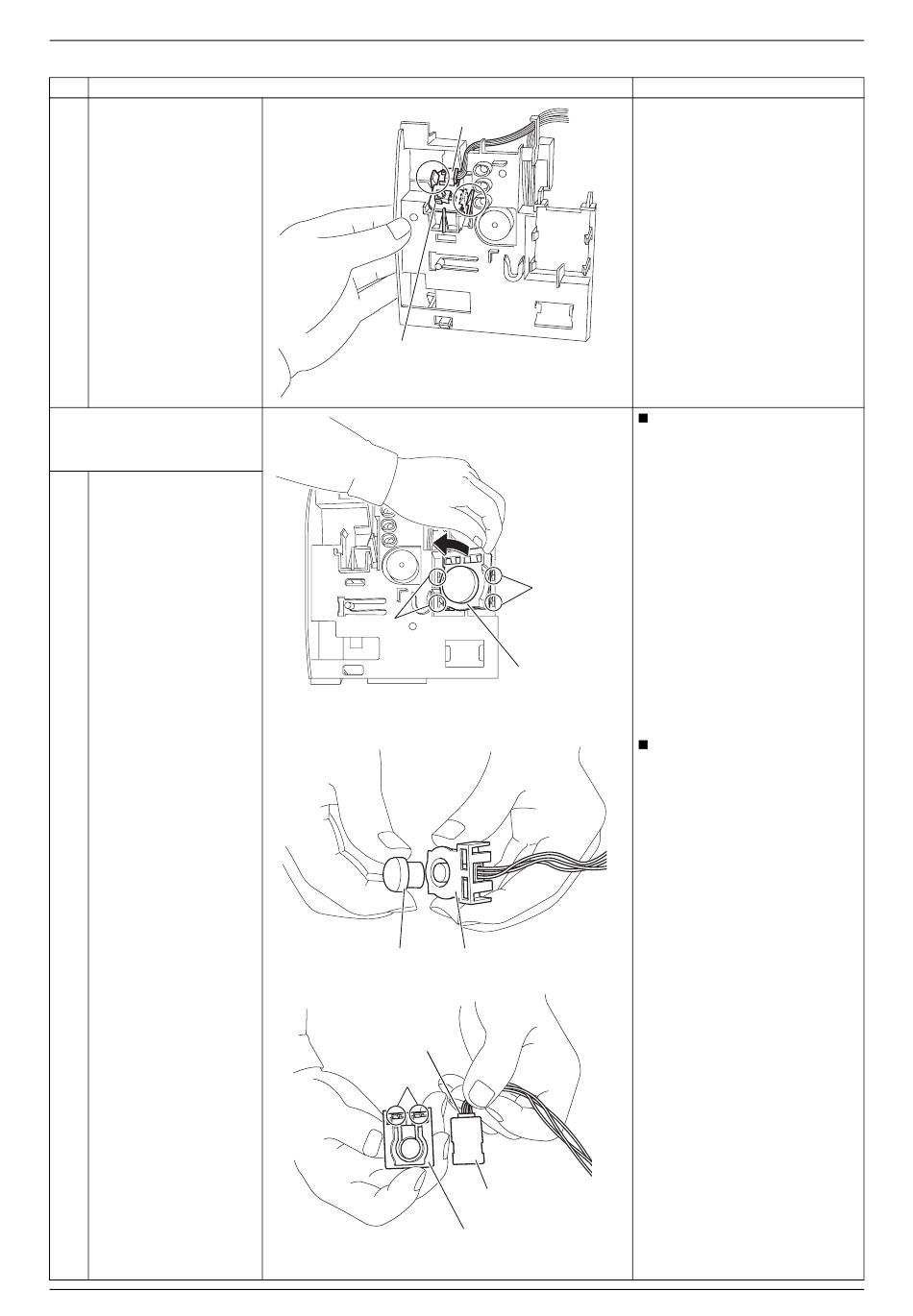

9 Unfasten the 2 hooks
and remove the signal
receiver PCB.
10 Disconnect the
connector [S48].
2. Remove the
INTELLIGENT EYE
sensor PCB.
1 Unfasten the 4 hooks
and remove the
INTELLIGENT EYE
sensor ASSY.
2 Remove the sensor
from the shield plate.
3 Remove the shield
plate by unfastening the
2 hooks.
4 Disconnect the
connector [S36].
5 Remove the
INTELLIGENT EYE
sensor PCB.
Removal Procedure
Procedure
[S48]
Signal receiver PCB
Hook
Sensor Shield plate
[S36]
Hook
INTELLIGENT EYE
sensor PCB
Shield plate (rear)
[S48]: to control PCB
(R18737)
Some models have no
INTELLIGENT EYE sensor
PCB.
Hook
INTELLIGENT EYE
sensor ASSY
(R9523)
When reassembling, set the
sensor at the position where
it clicks. Otherwise, the
sensor is not completely set.
(R9525)
[S36]: to control PCB
(R18893)
