Summary of Contents for Aircat VIBROTHERM DRIVE 1058-VXL

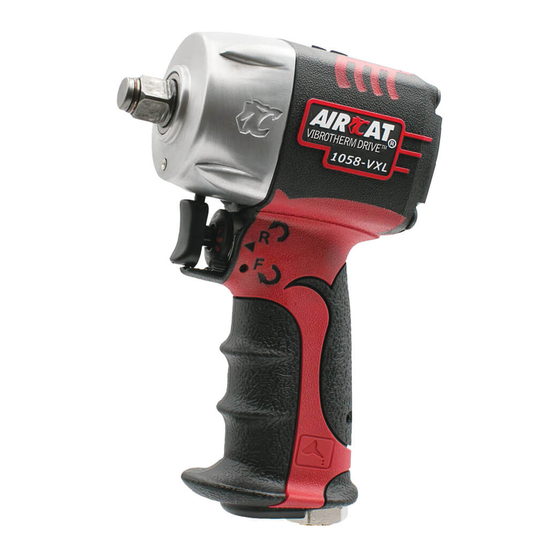

- Page 1 MODEL: 1058-VXL 1/2" COMPACT IMPACT WRENCH...

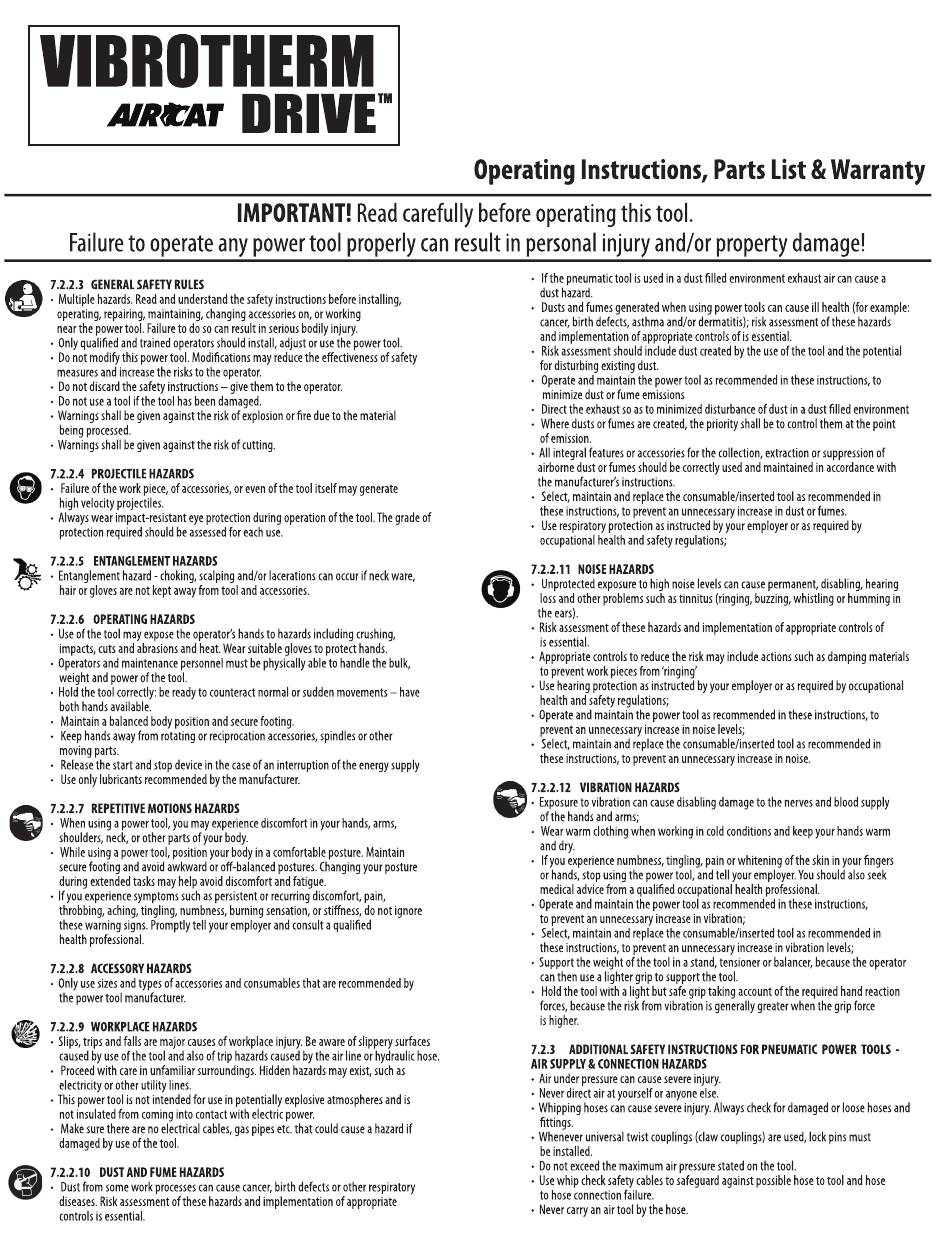

- Page 2 Important Warnings - Impacts 1. Eye protection and hearing protection and safety gloves must always be worn when operating an impact wrench or impact driver. 2. When using heavy impact sockets or sockets on impact wrenches with 3/4” drive anvils or larger, a socket retaining ring and pin should be used to prevent the socket falling off and causing injury.
- Page 3 MODEL: 1058-VXL 1/2" COMPACT IMPACT WRENCH Exploded View & Parts List Part Number Description Part Number Description Qty. 00-4603 Grease Fitting(1/8") 243Q-034B F/R Lever 243Q-002 Hammer Case 243D-021 R/F Valve 00-4302 Helicoil 305Y-027 Spring 243D-019 Front Gasket 00-3816 Steel Ball 243Q-010 Anvil Bushing 00-41175...
- Page 4 AIRCAT or Florida Pneumatic Authorized Service Center) are not covered by this warranty. Return your tool to an AIRCAT or Florida Pneumatic Authorized Service Center freight prepaid. Be sure to include your name, address, copy of purchase with date and description of the suspected defect.
