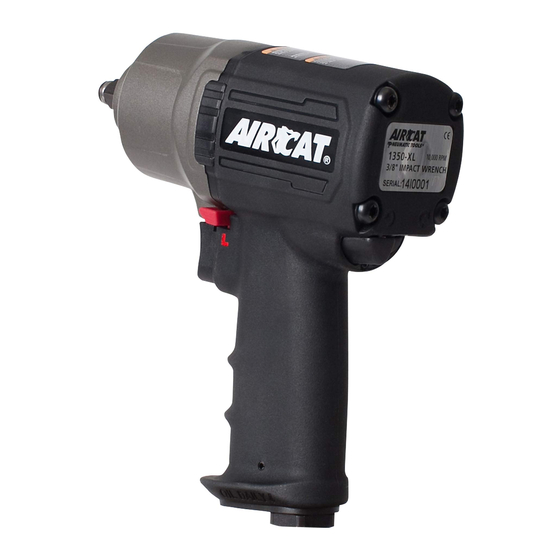

Aircat 1350-XL Operating Instructions & Parts List

High-low torque 3/8" impact wrench

Download this manual

MODEL: 1350-XL

HIGH-LOW TORQUE 3/8" IMPACT WRENCH

Need help?

Do you have a question about the 1350-XL and is the answer not in the manual?

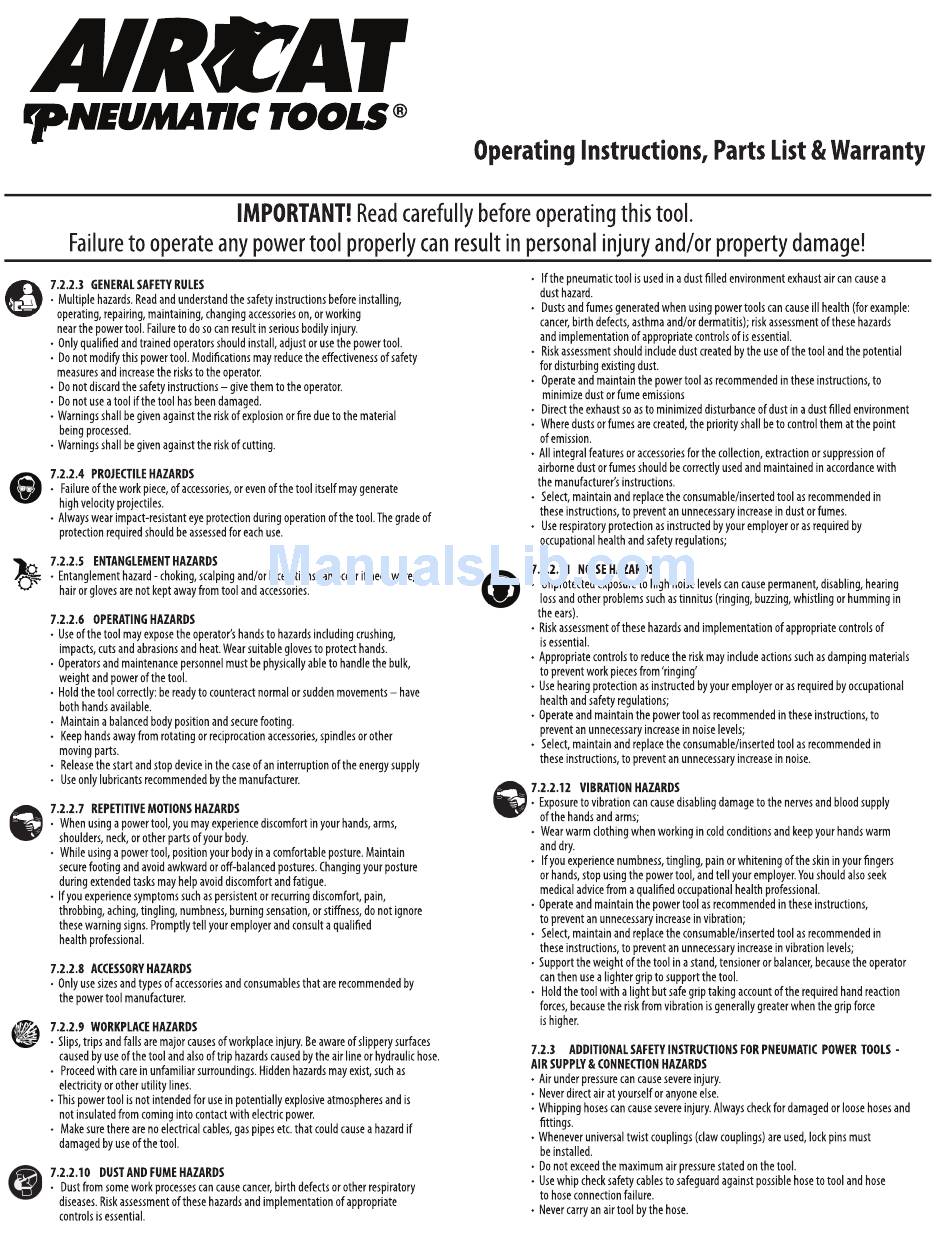

Page 1 MODEL: 1350-XL HIGH-LOW TORQUE 3/8" IMPACT WRENCH...
Page 2: Air Supply
(lbs.) (in) (CFM) (in.) (in.) Setting (ft-lb) (in.) (in.) 1350-XL 10,000 1700 500 & 100 3.15 1/4 NPT (Reverse Torque) Air Supply Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free. Higher pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition and void the warranty.
Page 3 MODEL: 1350-XL HIGH-LOW TORQUE 3/8" IMPACT WRENCH Exploded View & Parts List Part Number Description Part Number Description Qty. 9638001M AIR INLET 9612834 HAMMER FRAME 9OR2002 O-RING 9612835 HAMMER 9ORAS-115 O-RING 9612837-38 3/8" ANVIL 9612805 DEFLECTOR 9328829-3 O-RING 9638006 SPRING...
Page 4 AIRCAT and NITROCAT air tools are warranted to be free from defects in material and workmanship for 2 years from date of purchase. We will repair or replace; at our option any defective part or unit which proves to be defective in material or workmanship during this 2 year period.
