Setup

Camera / Port Cover Alignment

Visually Check the Nikonos RS Mount and Port Cover mate. The Nikonos RS
Mount flange ( the innermost ring shown in
(0.02 to 0.04 in) forward of the next step on the Bulkhead Cover (shown in BLACK
color). It should also be an even step around the perimeter.
If you see more then 0.5 to 1mm difference or uneven step, stop and loosen the
four corner screws of the Port Cover and adjust the position until the Nikonos RS
Mount Flange is even around the perimeter with the Port Cover.
color) – should be ~ 0.5 to 1mm
RED
Page 9

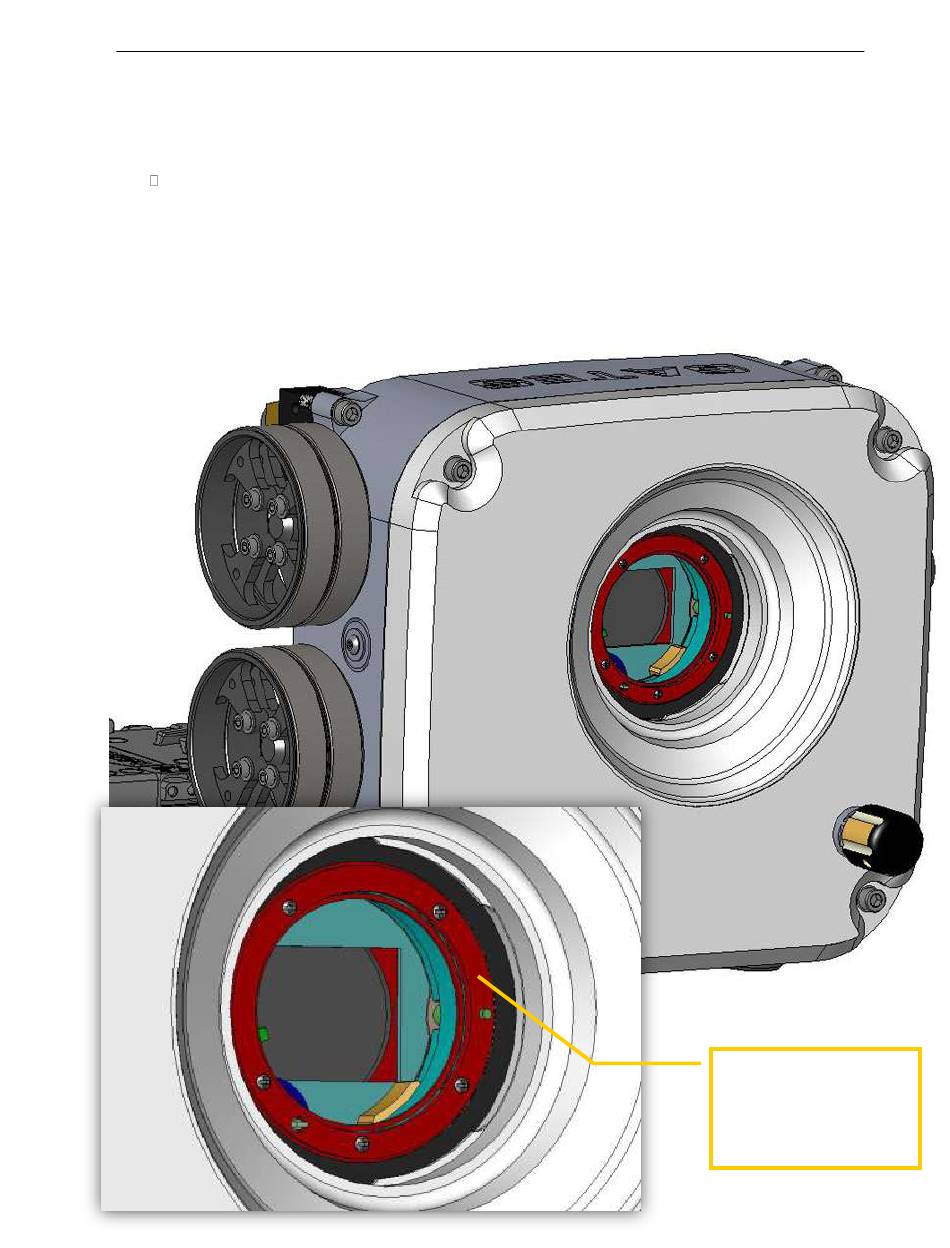

The Nikonos RS Mount
flange (RED color) should
be 0.5 to 1mm (0.02 to
0.04 in) forward of the next
outward step (BLACK
color)
