Gates GCC KOMODO-X KEYMAP V1.20 Quick Setup

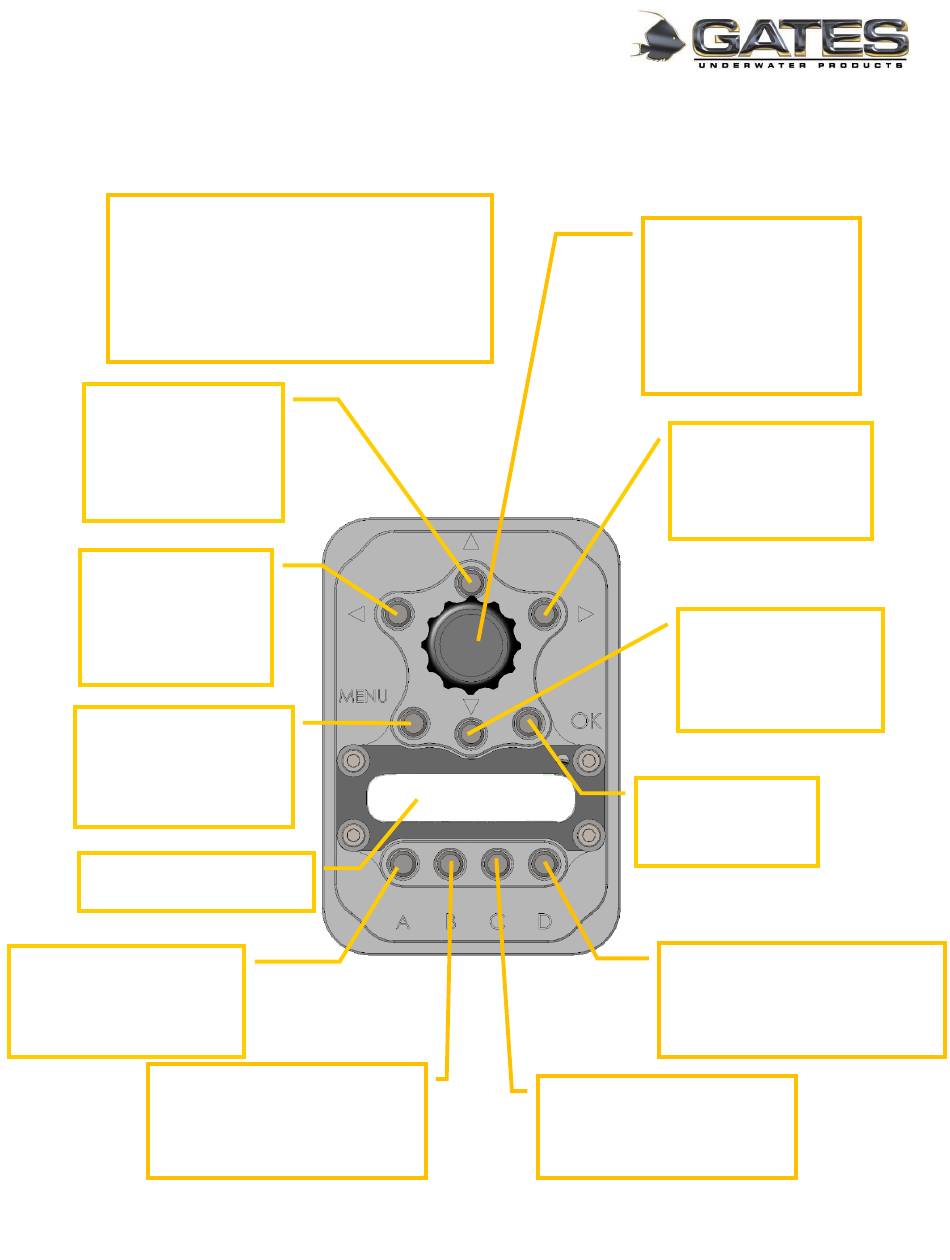

GCC KOMODO-X KEYMAP V1.20
QUICK SETUP NOTES:
---------------------------------
•
SET SERIAL IP TO CAMERA DEFAULT 169.254.1.1
•
SET SERIAL BAUD RATE TO 1,000,000
DEFAULT KEYMAPPING
IF USING CAMERA SHUTDOWN
COMMAND, TURN HOUSING POWER OFF
AFTER SCREEN COMPLETELY BLANK
SENSOR FRAMERATE
INCREMENT (+)
HOLD 10 SECONDS
FOR CAMERA SOFT
SHUTDOWN/REBOOT
SHUTTER SPEED
DECREMENT (-)
HOLD 1 SECOND
FOR RECORD
TOGGLE
ISO DECREMENT (-)
HOLD 4 SECONDS FOR
AUTO WHITE BALANCE
CALIBRATION
IDLE SCREEN DISPLAYS
BATTERY VOLTAGE
BRAIN FRONT PRESS
USER ASSIGNABLE
HOLD 1 SECOND FOR SDI1
OVERLAY TOGGLE
BRAIN FRONT HALF PRESS
HOLD 1 SECOND FOR SDI1
FRAME GUIDES TOGGLE
KOMODO X
v1.20
USER ASSIGNABLE
GATES UNDERWATER PRODUCTS, INC
13685 STOWE DR. POWAY CA 92064 • +858-391-0052 • +858-391-0053 FAX
DEEP KOMODO-X
DC 14.8V
HOLD 1 SECOND FOR ZEBRA
GATESHOUSINGS.COM
ELECTRONIC IRIS
CONTROL
For native Canon RF
lenses or other types
that are supported
with adapters.
SHUTTER SPEED
INCREMENT (+)
HOLD 1 SECOND FOR
RECORD TOGGLE
SENSOR FRAMERATE
DECREMENT (-)
HOLD 1 SECOND FOR
PEAKING TOGGLE
ISO INCREMENT (+)
HOLD 1 SECOND
FOR SDI MAGNIFY 1
BRAIN SIDE HALF PRESS
USER ASSIGNABLE
HOLD 1 SECOND FOR SDI1
TOOLS TOGGLE
BRAIN SIDE PRESS
USER ASSIGNABLE
TOGGLE
