L2
L3
N
L1
Lo va t o
PMVF 10
ROCOF
A
+/- 0.3Hz
OFF
B
+/- 0.3Hz
OFF
C
+/- 1Hz
OFF
D
+/- 1Hz
OFF
E
+/- 0.3Hz
ON
F
+/- 0.3Hz
ON
G
+/- 1Hz
ON
H
+/- 1Hz
ON
D
E
10
20
F
C
B
G
0.1
30
A
H
Mode
Reset delay [s]
14
12
11
24
22
21
I324IGB04_12.doc

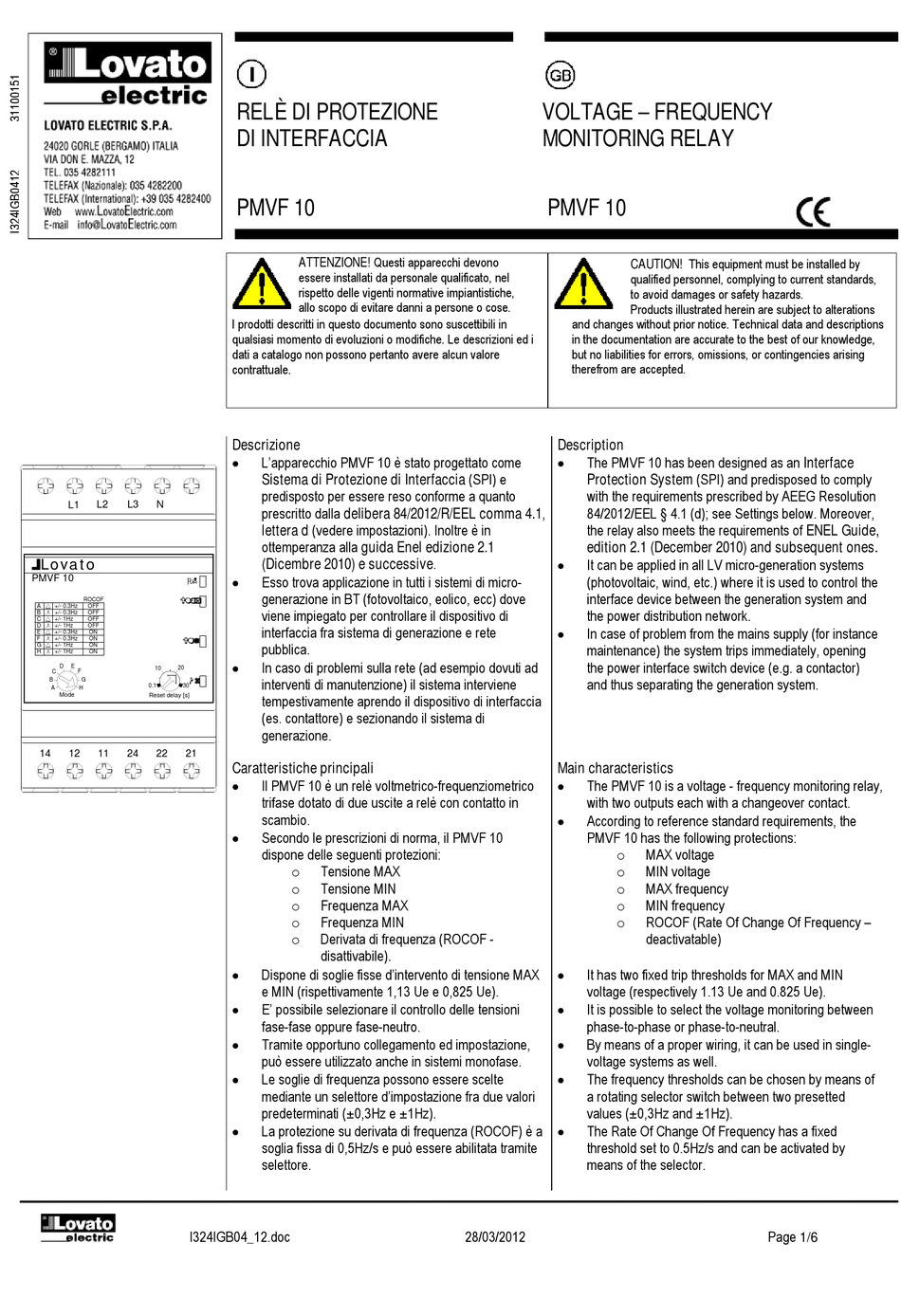

RELÈ DI PROTEZIONE
DI INTERFACCIA
PMVF 10
ATTENZIONE! Questi apparecchi devono
essere installati da personale qualificato, nel
rispetto delle vigenti normative impiantistiche,
allo scopo di evitare danni a persone o cose.
I prodotti descritti in questo documento sono suscettibili in
qualsiasi momento di evoluzioni o modifiche. Le descrizioni ed i
dati a catalogo non possono pertanto avere alcun valore
contrattuale.
Descrizione
L'apparecchio PMVF 10 è stato progettato come
Sistema di Protezione di Interfaccia (SPI) e
predisposto per essere reso conforme a quanto
prescritto dalla delibera 84/2012/R/EEL comma 4.1,
lettera d (vedere impostazioni). Inoltre è in
ottemperanza alla guida Enel edizione 2.1
(Dicembre 2010) e successive.
Esso trova applicazione in tutti i sistemi di micro-
generazione in BT (fotovoltaico, eolico, ecc) dove
viene impiegato per controllare il dispositivo di
interfaccia fra sistema di generazione e rete
pubblica.
In caso di problemi sulla rete (ad esempio dovuti ad
interventi di manutenzione) il sistema interviene
tempestivamente aprendo il dispositivo di interfaccia
(es. contattore) e sezionando il sistema di
generazione.
Caratteristiche principali
Il PMVF 10 è un relè voltmetrico-frequenziometrico
trifase dotato di due uscite a relè con contatto in
scambio.
Secondo le prescrizioni di norma, il PMVF 10
dispone delle seguenti protezioni:
Tensione MAX
o
Tensione MIN
o
Frequenza MAX
o
Frequenza MIN
o
Derivata di frequenza (ROCOF -
o
disattivabile).
Dispone di soglie fisse d'intervento di tensione MAX
e MIN (rispettivamente 1,13 Ue e 0,825 Ue).
E' possibile selezionare il controllo delle tensioni
fase-fase oppure fase-neutro.
Tramite opportuno collegamento ed impostazione,
può essere utilizzato anche in sistemi monofase.
Le soglie di frequenza possono essere scelte
mediante un selettore d'impostazione fra due valori
predeterminati (±0,3Hz e ±1Hz).
La protezione su derivata di frequenza (ROCOF) è a
soglia fissa di 0,5Hz/s e può essere abilitata tramite
selettore.
VOLTAGE – FREQUENCY
MONITORING RELAY
PMVF 10
CAUTION! This equipment must be installed by
qualified personnel, complying to current standards,
to avoid damages or safety hazards.
Products illustrated herein are subject to alterations
and changes without prior notice. Technical data and descriptions
in the documentation are accurate to the best of our knowledge,
but no liabilities for errors, omissions, or contingencies arising
therefrom are accepted.
Description
The PMVF 10 has been designed as an Interface
Protection System (SPI) and predisposed to comply
with the requirements prescribed by AEEG Resolution
84/2012/EEL § 4.1 (d); see Settings below. Moreover,
the relay also meets the requirements of ENEL Guide,
edition 2.1 (December 2010) and subsequent ones.
It can be applied in all LV micro-generation systems
(photovoltaic, wind, etc.) where it is used to control the
interface device between the generation system and
the power distribution network.
In case of problem from the mains supply (for instance
maintenance) the system trips immediately, opening
the power interface switch device (e.g. a contactor)
and thus separating the generation system.
Main characteristics
The PMVF 10 is a voltage - frequency monitoring relay,
with two outputs each with a changeover contact.
According to reference standard requirements, the
PMVF 10 has the following protections:
o
o
o
o
o
It has two fixed trip thresholds for MAX and MIN
voltage (respectively 1.13 Ue and 0.825 Ue).
It is possible to select the voltage monitoring between
phase-to-phase or phase-to-neutral.
By means of a proper wiring, it can be used in single-
voltage systems as well.
The frequency thresholds can be chosen by means of
a rotating selector switch between two presetted
values (±0,3Hz and ±1Hz).
The Rate Of Change Of Frequency has a fixed
threshold set to 0.5Hz/s and can be activated by
means of the selector.
28/03/2012
MAX voltage
MIN voltage
MAX frequency
MIN frequency
ROCOF (Rate Of Change Of Frequency –
deactivatable)
Page
1/6
