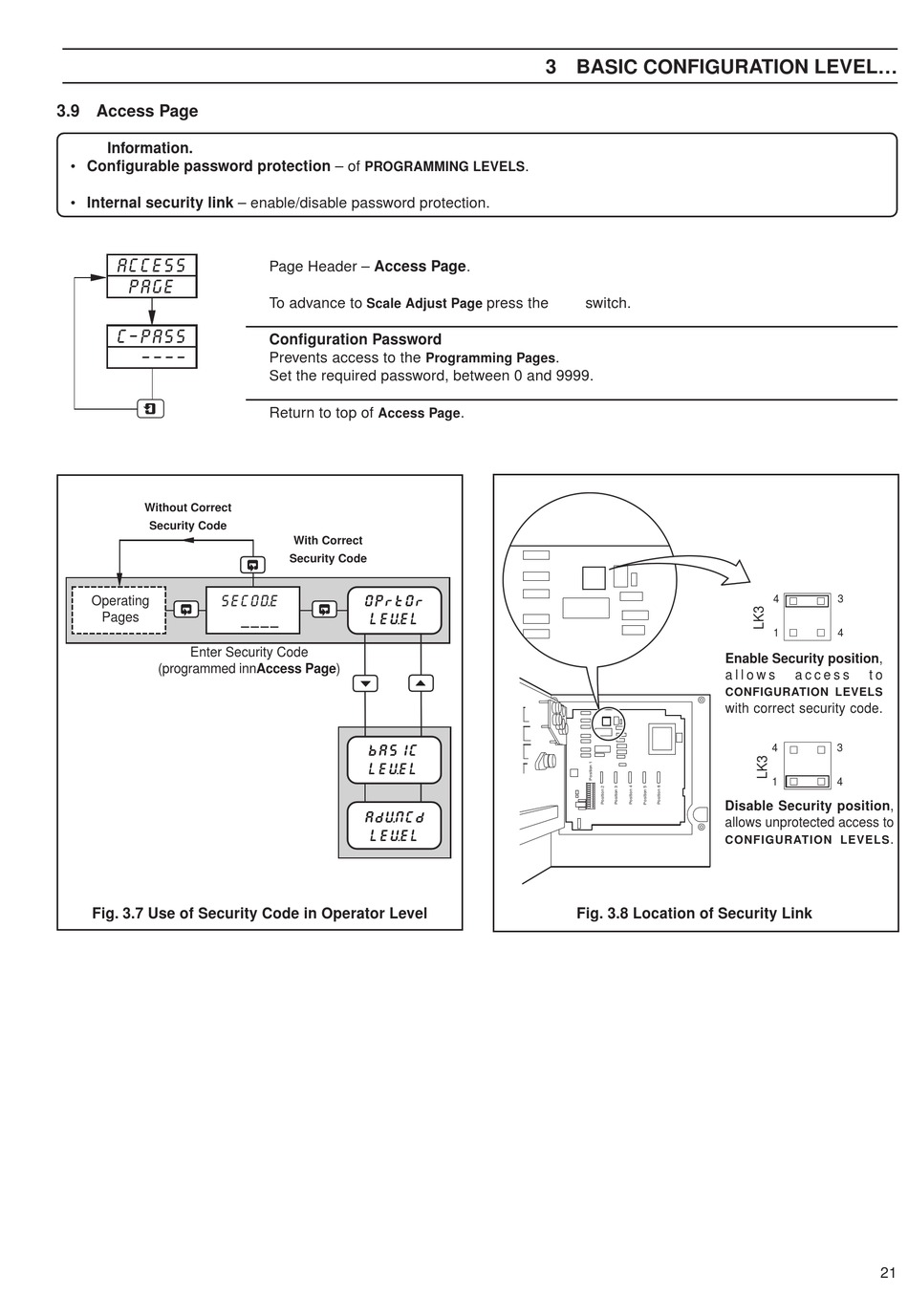

3.9 Access Page
Information.
• Configurable password protection – of
• Internal security link – enable/disable password protection.
ACCESS
PAGE
C–PASS
––––
Without Correct
Security Code
Operating
SECODE
Pages
Enter Security Code
(programmed innAccess Page)
Fig. 3.7 Use of Security Code in Operator Level
PROGRAMMING LEVELS
Page Header – Access Page.
To advance to
Scale Adjust Page
Configuration Password
Prevents access to the
Set the required password, between 0 and 9999.
Return to top of
Access Page
With Correct
Security Code
OPrtOr
____
LEVEL
bASIC
LEVEL
AdVNCd
LEVEL
3 BASIC CONFIGURATION LEVEL...
.
press the
switch.
.
Programming Pages
.
Fig. 3.8 Location of Security Link
4
3
1
4
Enable Security position,
a l l o w s
a c c e s s
t o
CONFIGURATION LEVELS
with correct security code.
4
3
1
4
Disable Security position,
allows unprotected access to
.
CONFIGURATION LEVELS
21
