4 ADVANCED CONFIGURATION LEVEL

4.1

Set Up Function Keys ....................................................................................................................................................... 25

4.2 Set Up Logic .................................................................................................................................................................... 26
4.3 Set Up Pen Functions ....................................................................................................................................................... 28
4.1 Set Up Function Keys
Information.
• Programmable function key – on each faceplate
• Home function – returns the instrument display to the start of the operating page when at the top of any page.
• Global alarm acknowledge function – acknowledges any unacknowledged alarms on all channels.
SEt UP
F–KEYS
F–KEY1
HOME
ALMACK
F–KEY2
ALMACK
OPrtOr
LEVEL
Operator Level
bASIC
CONFIG
Basic Config
AdVNCd
CONFIG
Advanced Config

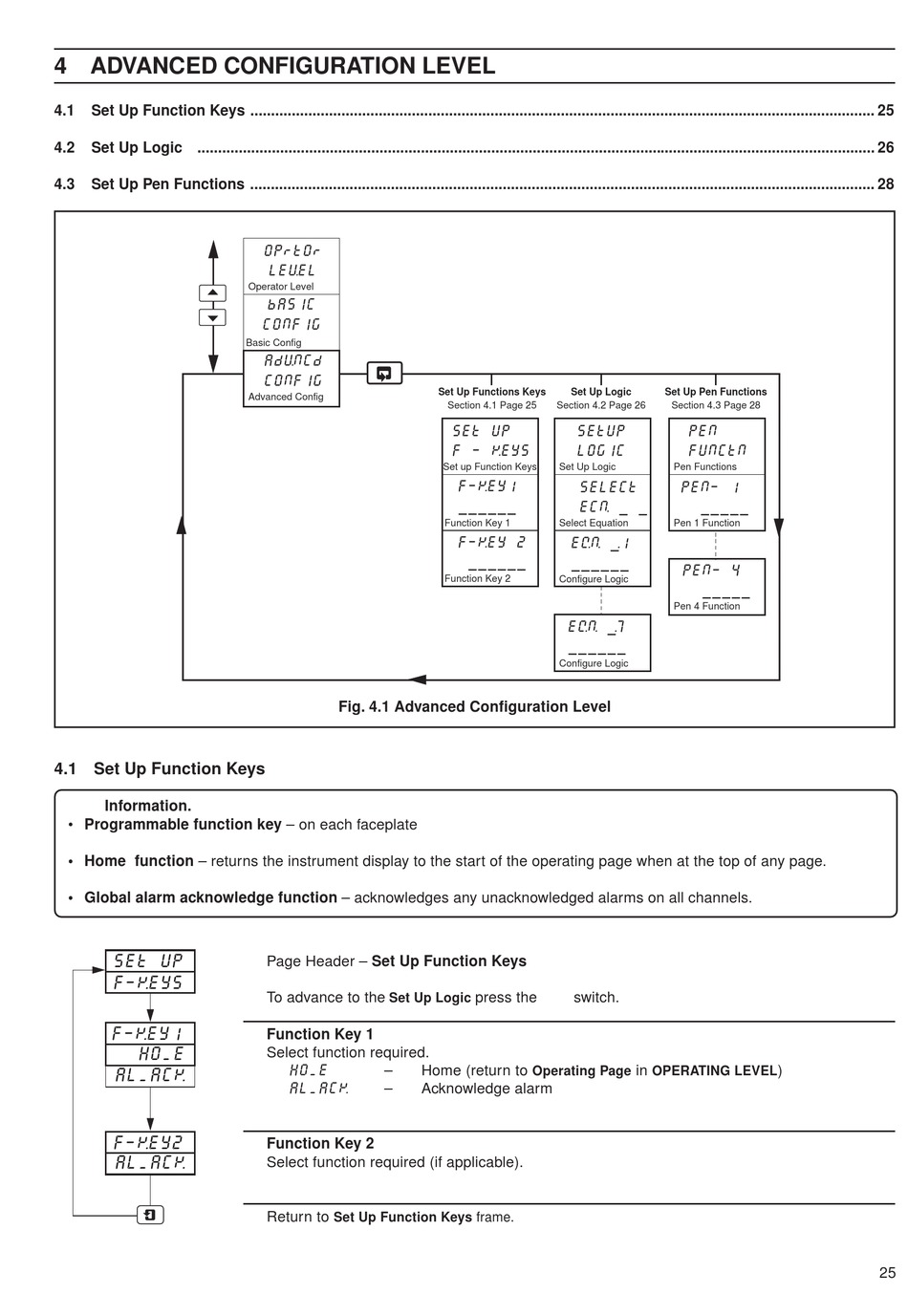

Fig. 4.1 Advanced Configuration Level
Page Header – Set Up Function Keys
To advance to the
Set Up Logic
Function Key 1
Select function required.
HOME –
ALMACK –
Function Key 2
Select function required (if applicable).
Return to
Set Up Function Keys frame.
Set Up Functions Keys Set Up Logic
Section 4.1 Page 25 Section 4.2 Page 26
SEt UP SEtUP
F – KEYS LOGIC
Set up Function Keys Set Up Logic
F–KEY1
SELECt
______ ECN. _ _
Function Key 1 Select Equation
F–KEY 2
EQN. _. 1
______
______
Function Key 2 Configure Logic
EQN. _. 7
______
Configure Logic
press the switch.
Home (return to
Operating Page
Acknowledge alarm
Set Up Pen Functions
Section 4.3 Page 28
PEN
FUNCtN
Pen Functions
PEN– 1
_____
Pen 1 Function
PEN– 4
_____
Pen 4 Function
in )
OPERATING LEVEL
25
