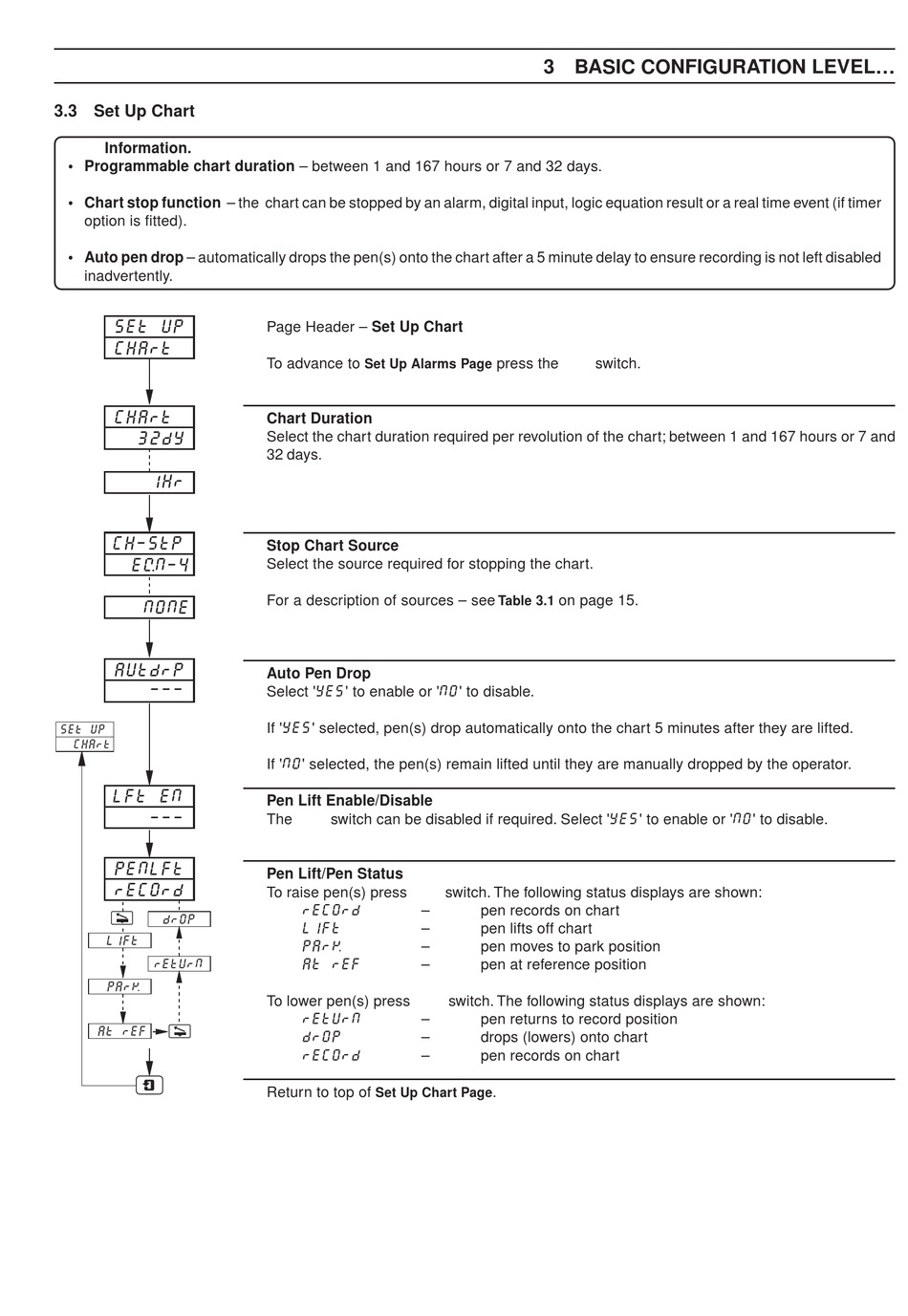

3.3 Set Up Chart

Information.
• Programmable chart duration – between 1 and 167 hours or 7 and 32 days.
• Chart stop function – the chart can be stopped by an alarm, digital input, logic equation result or a real time event (if timer
option is fitted).
• Auto pen drop – automatically drops the pen(s) onto the chart after a 5 minute delay to ensure recording is not left disabled
inadvertently.
SEt UP
CHArt
CHArt
32dY
1Hr
CH–StP
EQN–4
NONE
AUtdrP
–––
SEt UP
CHArt
LFt EN
–––
PENLFt
rECOrd
drOP
LIFt
rEtUrN
PArK
At rEF
Page Header – Set Up Chart
To advance to
Set Up Alarms Page
Chart Duration
Select the chart duration required per revolution of the chart; between 1 and 167 hours or 7 and
32 days.
Stop Chart Source
Select the source required for stopping the chart.
For a description of sources – see

Auto Pen Drop

Select ' YES ' to enable or '
YES
If ' ' selected, pen(s) drop automatically onto the chart 5 minutes after they are lifted.
NO
If ' ' selected, the pen(s) remain lifted until they are manually dropped by the operator.
Pen Lift Enable/Disable
The switch can be disabled if required. Select '
Pen Lift/Pen Status
To raise pen(s) press
rECOrd –
LIFt –
PArK
–
At rEF –
To lower pen(s) press
rEtUrN
–
drOP –
rECOrd –
Return to top of
Set Up Chart Page
3 BASIC CONFIGURATION LEVEL...
press the switch.
on page 15.
Table 3.1
NO ' to disable.
YES
switch. The following status displays are shown:
pen records on chart
pen lifts off chart
pen moves to park position
pen at reference position
switch. The following status displays are shown:
pen returns to record position
drops (lowers) onto chart
pen records on chart
.
' to enable or ' NO ' to disable.
