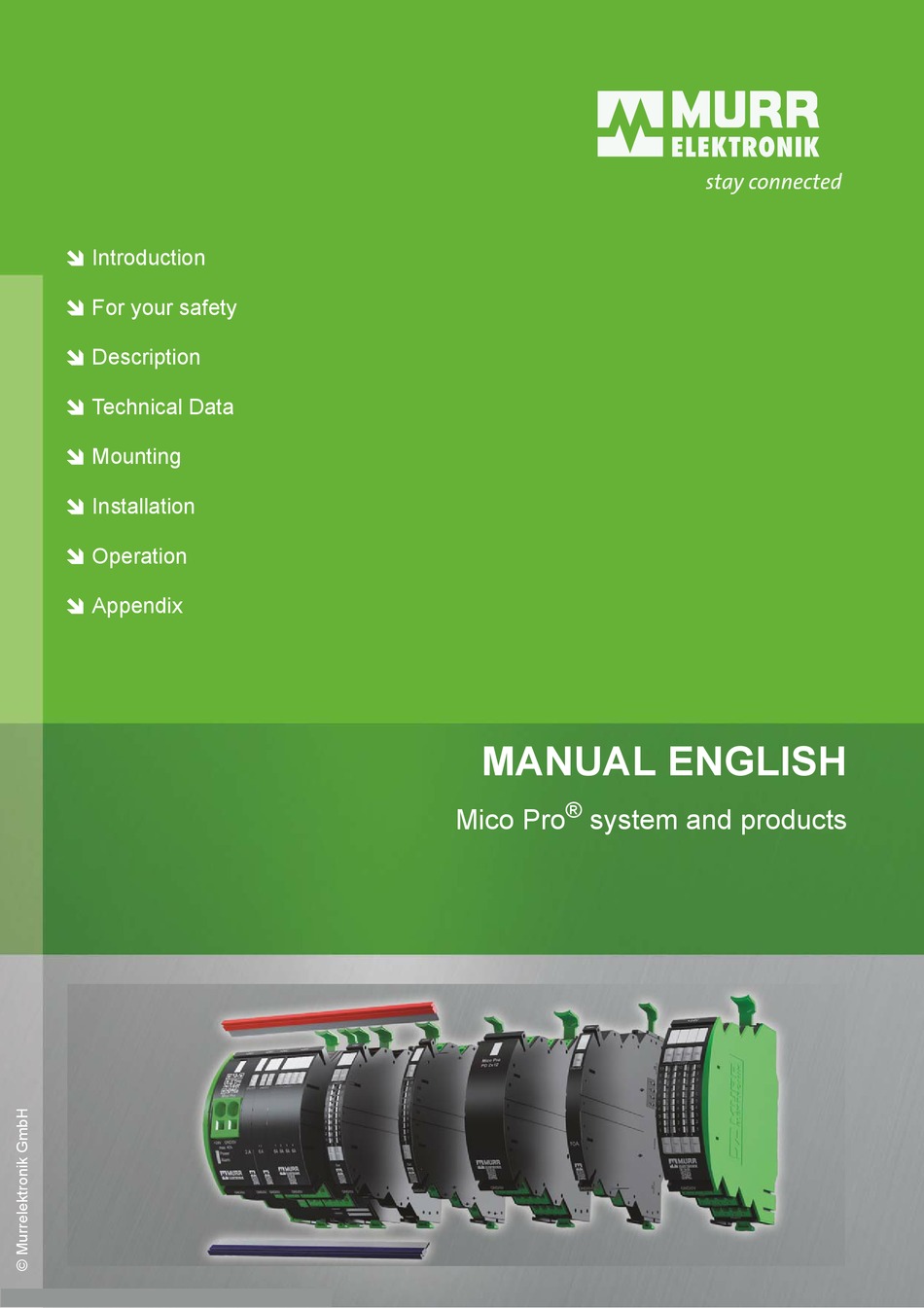

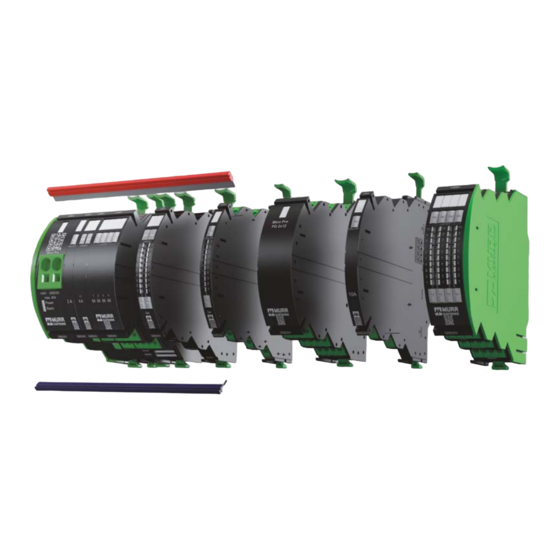

MANUAL ENGLISH
®
Mico Pro
system and products

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mico Pro Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Murr Elektronik Mico Pro Series

Summary of Contents for Murr Elektronik Mico Pro Series

  • Page 1  Introduction  For your safety  Description  Technical Data  Mounting  Installation  Operation  Appendix MANUAL ENGLISH ® Mico Pro system and products...
