  • Page 1 MANUAL ® Mico Pro...
  • Page 2 Document status: Manual number 9000-41011-0200000 Language Version Date 2019-08 Murrelektronik GmbH Falkenstraße 3 71570 Oppenweiler GERMANY Phone +49 7191 47-0 Fax +49 7191 47-491000 info@murrelektronik.com NOTE Translation of the original instructions...
  • Page 3 This document is valid for the following products: Mico Pro PS (power-supply) Designation Art.-No. Mico Pro PS 5-100-240/24 9000-41190-0000105 Mico Pro PS 10-100-240/24 9000-41190-0000110 Mico Pro PM (power module) Power feeding module for system supply and control options Designation Art.-No. Mico Pro PM 24 V DC / 40 A 9000-41190-0000000 Mico Pro PD (power distribution)

  • Page 4: Table Of Contents

    Table of Contents Introduction Symbols Service and support General notes 1.3.1 Purpose of this document 1.3.2 Applicable documents 1.3.3 Trademarks 1.3.4 Storage and transport 1.3.5 Environmentally friendly disposal For your safety General safety instructions Qualified personnel (target group) Intended purpose Foreseeable misuse Warranty and liability claims Legal regulations...
  • Page 5 4.1.3.4 Output protections with signal connector 4.1.4 Isolation voltages 4.1.4.1 Type testing 4.1.4.2 Routine testing 4.1.4.3 Field testing 4.1.4.4 Isolation resistance 4.1.4.5 PE resistance 4.1.5 Mechanical data 4.1.5.1 Materials 4.1.5.2 Mounting data 4.1.6 Product reliability 4.1.7 Conformity, Approvals Mico Pro PM (power module) 4.2.1 Electrical data 4.2.1.1...
  • Page 6 Mico Pro Plug-In link 4.4.1 Electrical data 4.4.1.1 Input 4.4.2 Environmental characteristics 4.4.2.1 Climatic 4.4.2.2 Mechanical 4.4.2.3 Electrical safety 4.4.3 Mechanical data 4.4.3.1 Materials 4.4.3.2 Mounting data 4.4.4 Conformity, Approvals Mico Pro fix module 4.5.1 Electrical data 4.5.1.1 Input 4.5.1.2 Output 4.5.1.3 Performance record...
  • Page 7 Mico Pro flex module 4.7.1 Electrical data 4.7.1.1 Input 4.7.1.2 Control input 4.7.1.3 Output 4.7.1.4 Control output 4.7.1.5 Performance record 4.7.2 Environmental characteristics 4.7.2.1 Climatic 4.7.2.2 Mechanical 4.7.2.3 Electrical safety 4.7.2.4 EMC-interference 4.7.2.5 EMC-immunity 4.7.3 Protection 4.7.3.1 Device protection 4.7.4 Mechanical data 4.7.4.1 Materials...
  • Page 8 Adjust 7.2.1 Mico Pro fix 7.2.2 Mico Pro flex Module/device 7.3.1 Mico Pro fix and flex Control and signals 7.4.1 Mico Pro PS / Mico Pro PM 7.4.2 Mico Pro fix 7.4.3 Mico Pro flex Diagnostic 7.5.1 Mico Pro PS (power supply) 7.5.2 Mico Pro PM (power module) 7.5.3...

  • Page 9: Introduction

    Introduction Introduction Symbols This document includes information and notes that have to be observed for your own safety and to avoid injuries and material damage. They are marked as follows: DANGER! Immediate danger Failure to observe this warning involves an imminent risk of death or seri- ...

  • Page 10: Service And Support

    Introduction Service and support Service and support Sales Our sales staff in-house and in the field, and our technicians will support you at all times. Sales support Our sales support will assist you:  with consultation during the development phase of your application, ...

  • Page 11: General Notes

    Introduction General notes 1.3.1 Purpose of this document Purpose of this docu- This document describes the use of the system Mico Pro. It instructs the tech- ment nical staff of the machine manufacturer or machine operator on the assembly, parameterization, electrical installation, commissioning as well as operation of the system Mico Pro.
  • Page 12 Introduction Disposal The product can be returned to Murrelektronik GmbH free of charge for dis- posal. The same is true for the original packaging and any batteries or power packs. Any units that have been contaminated with hazardous substances will not be accepted for repair or disposal.

  • Page 13: For Your Safety

    For your safety For your safety Safety for you and peo-  Read this chapter carefully. ple around you!  Only then can you work with the device. Use of the device  Comply with all safety and accident prevention regulations when conduct- ing project engineering, installation, startup, operation, and testing of the device.

  • Page 14: Warranty And Liability Claims

    For your safety  Do not alter the design, engineering, or electrical features of the connect- ed devices.  Use the Mico Pro system only in the application fields described in this manual and other applicable documents. (see 1.3.2 "Applicable documents") ...

  • Page 15: Description

    Description Description Maximum system expansion NOTE The maximum possible expansion of the Mico Pro system depends on the fol- lowing points:  Maximum operating current of 40 A per Mico Pro power module (PM).  Maximum of 40 Mico Pro modules, including Mico Pro power module (PM).

  • Page 16: Products

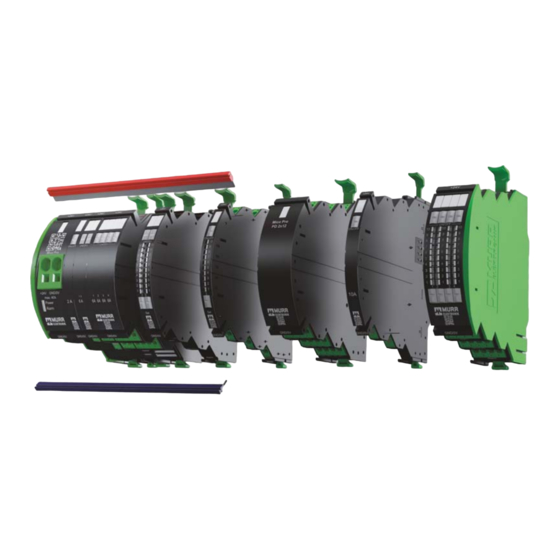

    Description Products 3.2.1 Mico Pro PS (power supply) Mico Pro Power-Supply (PS) Designation Article number Function  Mico Pro PS 9000-41190-0000105 Nominal voltage: 5-100-240/24 100 V ... 240 V  Voltage range: 90 V ... 265 V  Mico Pro PS 9000-41190-0000110 Nominal voltage: 10-100-240/24...

  • Page 17: Mico Pro Plug-In Link

    Description 3.2.4 Mico Pro Plug-In link Model overview Mico Pro Plug-In link Continuous jumper for distributing the supply voltage Designation Article number Function  Mico Pro Plug-In link 9000-41000-0000000 2 pieces 2x blue  Color: blue  Total operating current continuous jumper: ≤40 A ...

  • Page 18: Mico Pro Fix

    Description 3.2.5 Mico Pro fix Model overview Mico Pro fix load circuit monitoring with preadjusted tripping current value Designation Article number Function  Mico Pro fix 1.2 9000-41011-0200000 Number of channels: 1  Tripping current: 2 A (0 % ... +20 %) ...

  • Page 19: Mico Pro Flex

    Description 3.2.6 Mico Pro flex Model overview Mico Pro flex load circuit monitoring with adjustable tripping current and channel-specific diagnostics and control options Designation Article number Function  Mico Pro flex 1.10 9000-41091-0101000 Number of channels: 1  Tripping current setting range selectable via button: 1-2-3-4-5-6-7-8-9-10 A (0 % ...
  • Page 20 Description Approvals Article Mico Pro PS 5 / 10 Mico Pro PM Mico Pro fix 1.2 Mico Pro fix 1.4 Mico Pro fix 1.4 CL2 Mico Pro fix 1.6 Mico Pro fix 1.8 Mico Pro fix 1.10 Mico Pro fix 2.2 Mico Pro fix 2.4 Mico Pro fix 2.6 Mico Pro fix 4.2...
  • Page 21 Description RECOMMENDATION Refer to the appendix for an overview of accessories 8.2 "Accessories". Storage and transport  Avoid mechanical vibrations during transport of the system Mico Pro .  Adhere to the prescribed climatic conditions (see chapter 4 "Technical Da- ta").

  • Page 22: Technical Data

    Technical Data Technical Data Mico Pro PS (Power Supply) 4.1.1 Electrical data 4.1.1.1 Input Parameter Conditions Value Nominal Voltage 100 ... 240 V Voltage range 90 ... 265 V Electric strength ≤30 seconds 300 V Power distribution system TN, TT, IT DC input operation 2-phase operation Use external fuse for...

  • Page 23: Output

    Technical Data Variants Input: Power losses, No-load power losses, Power factor, Start-up volt- Art.-No. Parameter Conditions Value 9000-41190-0000105 Power losses 100% load /115 V 14 W Power losses 100% load /230 V 12 W Power losses 50% load /115 V Power losses 50% load /230 V No-load power losses...
  • Page 24 Technical Data Parameter Conditions Value Power Boost duration Power Boost recovery time Output power - Power Boost Derating Variants Output: Line regulation, Load regulation, Ripple, Spikes, Current, Output power Art.-No. Parameter Conditions Value 9000-41190-0000105 Line regulation 5 mV Load regulation 55 mV Ripple Static...

  • Page 25: Environmental Characteristics

    Technical Data Variants Output: Input failure bridging, Start-up time, Short-circuit current, Out- put capacitance, Return current when switched-off Art.-No. Parameter Conditions Value 9000-41190-0000105 Input failure bridging 115 V >20 ms Input failure bridging 230 V >65 ms Start-up time 115 V <300 ms Start-up time 230 V...

  • Page 26: Electrical Safety

    Technical Data Art.-No. Parameter Conditions Value 9000-41190-0000110 Vibration test 3 axis, 60 minutes 2-17.8Hz: ±1.6 mm 17.8-500 Hz: 2,0g Shock test 1 shock/s, 3 axis, 15 g / 11ms 3 pos. & 3 neg. per sinusoidal axis with single channel out- put;...
  • Page 27 Technical Data Parameter Conditions Value Voltage dips and short interruptions EN 61000-4-11 70% / 10 ms, Criterion A; 40% / 100 ms, Criterion A; 0% / 5 s, Criterion C After installation in a system, the EMC emission values may vary (eg due to other ground connections).

  • Page 28: Protection

    Technical Data 4.1.3 Protection 4.1.3.1 Input protections Parameter Conditions Value Branch circuit protection max. in building installa- 32 A (T) tion Overvoltage protection (L ... N) Metal-Oxide-Varistor 300 V / 6 kA Overvoltage protection (L/N ... PE) Undervoltage protection Yes, electronic Variants Input protection: Internal device protection Art.-No.

  • Page 29: Output Protections With Signal Connector

    Technical Data Parameter Conditions Value Over temperature protection (OTP) Yes, autorestart Short-circuit protection (OCP) Yes, constant current Overvoltage protection from device Yes, type 31 V to load (OVP) Overvoltage protection from load to device Resistance to back feeding loads ≤35 V , autostart Reverse polarity protection Input / Output separation...

  • Page 30: Isolation Resistance

    Technical Data 4.1.4.4 Isolation resistance Parameter Conditions Value Input-output >50 MOhm Input-PE Output-PE Output-Alarm 4.1.4.5 PE resistance Parameter Conditions Value PE resistance 4.1.5 Mechanical data 4.1.5.1 Materials Parameter Conditions Value Flame resistance UL 94 Housing material Plastic Protection class IEC 61140 4.1.5.2 Mounting data Art.-No.

  • Page 31: Product Reliability

    Technical Data Fig. 4-8: Dimensions 4.1.6 Product reliability Art.-No. Parameter Conditions Value 9000-41190-0000105 MTBF 100% load, Ta: 40 °C >1500000 h DIN EN 61709:1999- 01, SN 29500, DIN EN ISO 13849- 1:2008-12 9000-41190-0000110 MTBF 100% load, Ta: 40 °C >800000 h DIN EN 61709:1999- 01, SN 29500, DIN EN ISO 13849-...

  • Page 32: Mico Pro Pm (Power Module)

    Technical Data Mico Pro PM (power module) 4.2.1 Electrical data 4.2.1.1 Input Parameter Conditions Value Operating voltage 12 V , 24 V Input voltage range 9 V ... 30 V Cut-in/cut-out frequency 0.5 Hz Total operating current 40 A Supply current ≥5 A 4.2.1.2 Control input...

  • Page 33: Control Output

    Technical Data 4.2.1.4 Control output Parameter Conditions Value Ohmic resistance terminals "Alarm" Input voltage 0 V 100 kOhm ±1 kOhm Ohmic resistance terminals "Alarm" Input voltage ≥9 V 100 kOhm ±1 kOhm Min. 1 channel in composite Ohmic resistance terminals "Alarm" Input voltage ≥9 V 35 Ohm ±15 Ohm all channel in composite off Adjustable voltage terminals...

  • Page 34: Electrical Safety

    Technical Data 4.2.2.3 Electrical safety Parameter Conditions Value Degree of protection EN 60529 IP20 Pollution degree Safe separation External power supply unit SELV/PELV Overvoltage category Insulation voltage Type testing / routine check 50 V input-output test 4.2.2.4 EMC-interference Parameter Conditions Value Radio interference field strength EN 61000-6-3...

  • Page 35: Mounting Data

    Technical Data 4.2.4.2 Mounting data Parameter Conditions Value Dimension Depth (D) 114 m Dimension Height with unlocking actuator (H) 130 mm Dimension Height without unlocking actuator (H2) 111 mm Dimension Width (W), 24.35 mm 0.35 mm are inserted into the adjacent module Dimension Mounting (a)

  • Page 36: Mico Pro Pd (Power Distribution)

    Technical Data Mico Pro PD (power distribution) 4.3.1 Electrical data 4.3.1.1 Input Parameter Conditions Value Operating voltage 12 V , 24 V Input voltage range 9 V ... 30 V Total operating current continuous Plug-In link ≤20 A jumper Variants input current Art.-No.

  • Page 37: Mechanical

    Technical Data Variants installation height Art.-No. Parameter Conditions Value 9000-41000-0002206 Installation height Above sea level, -500 m ... 2000 m without any restric- tions Installation height Above sea level, 2000 m ... 4000 m max. 2x16 A total op- erating current Installation height Above sea level, 4000 m ...

  • Page 38: Protection

    Technical Data 4.3.3 Protection 4.3.3.1 Device protection Parameter Conditions Value Short circuit protection Short circuit-proof Overvoltage protection input Suppressor diode 36 V 4.3.4 Mechanical data 4.3.4.1 Materials Parameter Conditions Value Flame resistance EN 60695-2-1 Low flammability Housing material Plastic 4.3.4.2 Mounting data Parameter Conditions...

  • Page 39: Conformity, Approvals

    Technical Data 4.3.5 Conformity, Approvals Parameter Conditions Value Product standard EN 61000-6-2 and EN 61000-6-3 Compliant EMC Directive 2014/30/EU Compliant RoHS 2011/65/EU Compliant REACH No. 1907/2006 Compliant LoHS ME list of banned substances Compliant Compliant UL508 NMTR.E200364 CSA C22.2 No. 14 NMTR7.E200364 UL2367 QVRQ2.E321289...

  • Page 40: Mico Pro Plug-In Link

    Technical Data Mico Pro Plug-In link 4.4.1 Electrical data 4.4.1.1 Input Parameter Conditions Value Operating voltage 12 V , 24 V Input voltage range 9 V ... 30 V Total operating current continuous Plug-In link 40 A jumper Output current 40 A 4.4.2 Environmental characteristics...

  • Page 41: Mechanical Data

    Technical Data 4.4.3 Mechanical data 4.4.3.1 Materials Parameter Conditions Value Flame resistance EN 60695-2-1 Low flammability Housing material Plastic Variants Color Art.-No. Designation Parameter Value 9000-41000-0000000 Mico Pro Plug-In link Color Blue 2x blue 9000-41000-0000001 Mico Pro Plug-In link Color 2x red 9000-41000-0000002 Mico Pro Plug-In link...

  • Page 42: Mico Pro Fix Module

    Technical Data Mico Pro fix module 4.5.1 Electrical data 4.5.1.1 Input Parameter Conditions Value Operating voltage 12 V , 24 V Input voltage range 9 V - 30 V Total operating current continuous Plug-In link 40 A jumper 4.5.1.2 Output Parameter Conditions Value...
  • Page 43 Technical Data Variants Output: Number of channels, Tripping current (I ), Output current (I ∑ Power-up delay Art.-No. Parameter Conditions Value 9000-41012-0400000 Tripping current (I Full load per channel 4 A (+20%) Output current (I Full load all channels 8 A ∑...
  • Page 44 Technical Data Characteristics: Disconnecting characteristics | Tripping current (I For Mico Pro fix Tripping current (I ) 16 A  Disconnection time at short circuit: approx. 5 ms Fig. 4-12: Disconnecting characteristics | Tripping current User manual 9000-41011-0200000_hdb_en_20 44 / 92...

  • Page 45: Performance Record

    Technical Data 4.5.1.3 Performance record Article Art.-No. Efficiency Voltage drop per channel Mico Pro fix 1.2 9000-41011-0200000 99,0 % 0,23 V Mico Pro fix 1.4 9000-41011-0400000 99,4 % 0,16 V Mico Pro fix 1.6 9000-41011-0600000 99,5 % 0,13 V Mico Pro fix 1.8 9000-41011-0800000 99,5 % 0,11 V...

  • Page 46: Mechanical

    Technical Data Variants installation height Art.-No. Conditions Value 9000-41011-1000000 Above sea level, -500 m ... 2000 m without any restrictions Above sea level, 2000 m ... 4000 m max. 8 A trigger current full load per channel Above sea level, 4000 m ...

  • Page 47: Electrical Safety

    Technical Data 4.5.2.3 Electrical safety Parameter Conditions Value Degree of protection EN 60529 IP20 Pollution degree Overvoltage category Insulation voltage Type testing / routine check test 50 V input-output 4.5.2.4 EMC-interference Parameter Conditions Value Radio interference field strength EN 61000-6-3 Industrial and residual areas housing Conducted emission...

  • Page 48: Mechanical Data

    Technical Data Safety fuse variants: Internal fuse (Fail-Safe-Element), per channel Art.-No. Designation Tripping current Fuse 9000-41011-0800000 Mico Pro fix 1.8 Safety fuse 10 A (T) time-lag fuse 9000-41011-1000000 Mico Pro fix 1.10 10 A Safety fuse 15 A (F) fast-blow fuse 9000-41011-1600000 Mico Pro fix 1.16 16 A Safety fuse 25 A (F) fast-blow fuse...

  • Page 49: Product Reliability

    Technical Data Fig. 4-14: Dimensions Variants Net weight Art.-No. Parameter Conditions Value 9000-41011-0200000, Net weight 53 g 9000-41011-0400000, 9000-41011-0600000, 9000-41011-0800000, 9000-41011-1000000 9000-41011-1600000 Net weight 60 g 9000-41012-0200000, Net weight 64 g 9000-41012-0400000, 9000-41012-0600000 9000-41014-0200000, Net weight 96 g 9000-41014-0400000, 9000-41014-0600000 4.5.5 Product reliability Variants MTBF, MTTF...

  • Page 50: Mico Pro Fix Cl2 Module

    Technical Data Mico Pro fix CL2 module 4.6.1 Electrical data 4.6.1.1 Input Parameter Conditions Value Operating voltage 12 V , 24 V Input voltage range 9 V - 30 V Total operating current continuous Plug-In link 40 A jumper 4.6.1.2 Output Parameter Conditions...
  • Page 51 Technical Data Characteristics: Tripping current For Mico Pro fix 1.4 CL2 / 4.4 CL2 Fig. 4-15: Tripping current for Mico Pro fix 1.4 CL2 and Mico Pro fix 4.4 CL2 NOTE A high-energy impulse (surge) applied to the output of the Mico Pro modules can cause short-term voltage interruption (max.

  • Page 52: Performance Record

    Technical Data Characteristics: Disconnecting characteristics | Tripping current (I For Mico Pro fix Tripping current (I ) 2 A to 10 A  Disconnection time at short circuit: approx. 5 ms Fig. 4-16: Disconnecting characteristics | Tripping current 4.6.1.3 Performance record Article Art.-No.

  • Page 53: Mechanical

    Technical Data Fig. 4-17: Temperature derating Ws System width ∑I Total current NA Not allowed 4.6.2.2 Mechanical Parameter Conditions Value Vibration test IEC 60068-2-6:2007 Test Fc; sin 5 ... 17.8 Hz: 1.6 EN 60068-2-6:2008 17.8 ... 500 Hz: 2.3 g 10x f Shock test IEC 60068-2-27:2008 Test Ea;...

  • Page 54: Emc-Immunity

    Technical Data 4.6.2.5 EMC-immunity Parameter Conditions Value Fast transients / burst EN 61000-6-2, ±2 kV / 5 kHz DC inputs and outputs EN 61000-4-4 Fast transients / burst EN 61000-6-2, ±2 kV / 5 kHz signal connections EN 61000-4-4 Surge voltage EN 61000-6-2, ±0.5 kV DM DC inputs and outputs...

  • Page 55: Product Reliability

    Technical Data Parameter Conditions Value Dimension Mounting (c) 3.5 mm Dimension Mounting (d) 7.5 mm Variants Dimension Width (W) Art.-No. Parameter Conditions Value 9000-41011-0400001 Dimension Width (W), 8,35 mm 0.35 mm are inserted 9000-41014-0400001 Dimension 24,35 mm into the adjacent module Fig.
  • Page 56 Technical Data Parameter Conditions Value Compliant UL508 NMTR.E200364 CSA C22.2 No. 14 NMTR7.E200364 UL2367 QVRQ2.E321289 CSA C22.2 No. 14 CLASS 3211 07 CSAus UL 508, Ed. 17 CLASS 3211 87 User manual 9000-41011-0200000_hdb_en_20 56 / 92...

  • Page 57: Mico Pro Flex Module

    Technical Data Mico Pro flex module 4.7.1 Electrical data 4.7.1.1 Input Parameter Conditions Value Operating voltage 12 V , 24 V Input voltage range 9 V ... 30 V Total operating current continuous Plug-In link 40 A jumper 4.7.1.2 Control input Parameter Conditions Value...
  • Page 58 Technical Data Output variants: Number of channels, Tripping current (I ), Output current (I ∑ Tripping current setting range, Power-up delay Art.-No. Parameter Conditions Value 9000-41091-0101000 Number of channels Tripping current (I ) Full load 10 A (+20%) Tripping current set- Selectable for 1 A, 2 A, 3 A, 4 A, 5 A, ting range...
  • Page 59 Technical Data Characteristics: Disconnecting characteristics | Tripping current (I For Mico Pro flex Tripping current (I ): 1 A to 10 A  Disconnection time at short circuit: approx. 5 ms Fig. 4-19: Disconnecting characteristics | Tripping current Characteristics: Disconnecting characteristics | Tripping current (I For Mico Pro flex Tripping current (I ): 11 A to 20 A ...

  • Page 60: Control Output

    Technical Data 4.7.1.4 Control output Parameter Conditions Value Output voltage terminal "Alarm" Channel off Output voltage terminal "Alarm" Channel on Input voltage Current terminal "Alarm" ≤20 mA Parameter Conditions Value Output voltage terminal "90 %" Channel with output current ≤90 % trigger current Output voltage terminal "90 %"...
  • Page 61 Technical Data Variants Installation height Art.-No. Parameter Conditions Value 9000-41094-0101000 Installation height Above sea level, 2000 m ... 4000 m max. 8 A tripping cur- rent full load per channel, max. +40°C 9000-41094-0101000 Installation height Above sea level, 2000 m ... 4000 m max.

  • Page 62: Mechanical

    Technical Data Fig. 4-21: Temperature derating Ws System width ∑I Total current NA Not allowed 4.7.2.2 Mechanical Parameter Conditions Value Vibration test IEC 60068-2-6:2007 Test sin 5 ... 17.8 Hz: 1.6 EN 60068-2-6:2008 17.8 ... 500 Hz: 2.3 g 10x f Shock test IEC 60068-2-27:2008 Test 1/2 sin 30 g, 11 ms...

  • Page 63: Emc-Immunity

    Technical Data 4.7.2.5 EMC-immunity Parameter Conditions Value Fast transients / burst EN 61000-6-2, ±2 kV / 5 kHz DC inputs and outputs EN 61000-4-4 Fast transients / burst EN 61000-6-2, ±2 kV / 5 kHz signal connections EN 61000-4-4 Surge voltage EN 61000-6-2, ±0.5 kV DM DC inputs and outputs...

  • Page 64: Product Reliability

    Technical Data Parameter Conditions Value Dimension Mounting (a) 55.5 mm Dimension Mounting (b) 15.5 mm Dimension Mounting (c) 3.5 mm Dimension Mounting (d) 7.5 mm Variants Dimension Width (W) Art.-No. Parameter Conditions Value 9000-41091-0101000 Dimension Width (W), 8,35 mm 0.35 mm are insert- 9000-41091-1102000, Dimension 12,35 mm...

  • Page 65: Conformity, Approvals

    Technical Data 4.7.6 Conformity, Approvals Parameter Conditions Value Product standard EN 61000-6-2 and EN 61000-6-3 Compliant EMC Directive 2014/30/EU Compliant RoHS 2011/65/EU Compliant REACH No. 1907/2006 Compliant LoHS ME list of banned substances Compliant Compliant UL508 NMTR.E200364 CSA C22.2 No. 14 NMTR7.E200364 UL2367 QVRQ2.E321289...

  • Page 66: Mounting

    Mounting Mounting NOTE The cooling of the device ensued by natural air circulation. The installation location have to be in accordance with the requirements of  EN 60950-1 point 4.7 and 4.6.1 (Housing protection class IP20, EN 60529) Installation distances Fig.

  • Page 67: Installation Position

    Mounting Installation position The device must be installed in the intended position in order to ensure sufficient cool- ing and mechanical stability. Fig. 5-2: Installation position CAUTION! Material damage caused by wrong installation position!  Module Mico Pro fix 1.16 (9000-41011-1600000) and Mico Pro flex 1.20 (9000-41091-1102000) may only be installed in the following positions.
  • Page 68 Mounting CAUTION! Material damage caused by wrong installation position!  The Mico Pro PS (power supply) may only be installed in the following po- sition. The device must be installed in the intended position in order to ensure sufficient cool- ing and mechanical stability.

  • Page 69: Mounting/Dismounting

    Mounting Mounting/Dismounting Mounting rail NOTE The device snaps onto a DIN mounting rail TH 35 according to EN 60715.  The mounting rail must be fastened in a way that it is not twisted during mounting and dismounting  Observe the maximum permissible load of the DIN mounting rail ac- cording to EN 60715 Fig.
  • Page 70 Mounting Mounting on mounting rail 1. Mounting the power module 2. Mounting the expansion modules Mounting the power module: Expansion modules:   The power module can be located anywhere in the Place additional modules on the left or right side of the system previous modules side by side Locking device closed...
  • Page 71 Mounting 4. Mounting the plug-in link continuous jumpers To mount the plug-in link:  Measure the length between cover plates 1 and 2 Use side-cutting pliers to cut the plug-in link (continuous jumper) to the desired length Insert the plug-in link (continuous jumper) into position 3 between the cover plates and press it in as far as it will go Dismounting Disconnecting the wiring: To dismount:...

  • Page 72: Installation

    Installation Installation CAUTION! Risk of hot surfaces due to overload Excessive total operating current > 40 A may lead to overheating of the mod- ules or devices and connecting cables and cause hot surfaces.  Power feeding ≤40 A For this product EPLAN macros are available: EPLAN macros are in Murrelektronik Onlineshop ...

  • Page 73: Overview

    Installation Overview 6.1.1 Mico Pro PS (power supply) Input terminal GND/0V bridging contact supply Plug-in link continuous jumper +24V bridging contact supply Plug-in link continuous jumper Internal system connection I/O signals- CTRL control input - ON control input - 90% 23, 24 control output - Alarm 13, 14 control output Fig.

  • Page 74: Mico Pro Pd (Power Distribution)

    Installation 6.1.3 Mico Pro PD (power distribution) PD 2x12 PD 2x2x06 (Art.-No. 9000-41000-0002206) (Art.-No. 9000-41000-0000212) Not contacted Not contacted GND/0V bridging contact supply GND/0V bridging contact supply Plug-In link continuous jumper Plug-In link continuous jumper U1/U2/0V terminal U+/0V terminal U1/U2/0V terminal U+/0V terminal U1/U2/0V terminal U+/0V terminal...

  • Page 75: Terminal

    Installation Terminal Symbol Conditions Ø Flexible, 0,25 ... 2,5 mm² 12 mm 10 mm with core end ferrule and plastic collar (AWG 23 ... 14) Flexible, 0,25 ... 2,5 mm² 12 mm 10 mm with core end ferrule (AWG 20 ... 18) Flexible, 0,5 ...

  • Page 76: Connecting Cable

    Installation Connecting cable 6.3.1 Mico Pro PS (power supply) NOTE The connection cables must be approved for the following operating tempera- tures: ≥75 ºC 6.3.2 Mico Pro PM (power module) NOTE The connection cable at the INPUT terminals (+ 24V, GND/0V) must be ap- proved for the following operating temperatures: ≥75 ºC with surrounding air temperature ≤40 °C ≥90 ºC with surrounding air temperature 40 °C ...

  • Page 77: Operation

    Operation Operation NOTE Use a short circuit-proof power supply unit. NOTE The voltage generated at the output is not allowed to remain higher than the input voltage. NOTE Parallel connection of multiple load branches for increase of power is not per- mitted with fix or flex modules.

  • Page 78: Mico Pro Pm (Power Module)

    Operation Block diagram Fig. 7-2: Block diagram 7.1.2 Mico Pro PM (power module) Power LED indication Alarm LED indication ON terminal 90-% 23, 24 terminals Alarm 13, 14 terminals CTRL terminal Fig. 7-3: Operation overview 7.1.3 Mico Pro PD (power distribution) Schematic wiring dia- gram Fig.

  • Page 79: Mico Pro Fix

    Operation Fig. 7-5: Schematic wiring diagram PD 2x2x06 (Art.-No. 9000-41000-0002206) 7.1.4 Mico Pro fix ON/OFF LED indication ON/OFF button Fig. 7-6: Operation overview Schematic wiring dia- gram Fig. 7-7: Schematic wiring diagram User manual 9000-41011-0200000_hdb_en_20 79 / 92...

  • Page 80: Mico Pro Flex

    Operation 7.1.5 Mico Pro flex ON/OFF LED indication ON/OFF button LED indication 1 ... 10 I or 11 ... 20 I markable optical fiber 1 ... 10 I or 11 ... 20 I Set button CTRL terminal ON terminal 90-% terminal Alarm terminal Fig.
  • Page 81 Operation 7.2.2 Mico Pro flex Connecting and discon- There are 5 options necting consumer cir- ATTENTION: cuits - If a consumer circuit (channel) is disconnected manually using the "ON/ OFF" button, it can only be reconnected manually by means of the "ON/ OFF"...
  • Page 82 Operation Module/device 7.3.1 Mico Pro fix and flex Operating state memory Stores the state of each consumer circuit (channel) beyond any voltage reset. device Cascading the expan- sion modules NOTE - The admissible total current may not be exceeded during cascading. - Cascading on level 3 (L 3) is not allowed.
  • Page 83 Operation Control and signals 7.4.1 Mico Pro PS / Mico Pro PM The control and diagnostic functions described on the Mico Pro PS (power supply) / Mico Pro PM (power module) are group signals from or for the entire Mico Pro system (Mico Pro PS / Mico Pro PM with added system compo- nents).
  • Page 84 Operation 7.4.2 Mico Pro fix Group signals can be used via the Mico Pro power module (power feeding module). These functions are described in the manual of the Mico Pro power module. 7.4.3 Mico Pro flex Group signals can be used via the Mico Pro power module (power feeding module).
  • Page 85 Operation Fig. 7-11: Turn on after short circuit Fig. 7-12: CTRL signal variant 1 User manual 9000-41011-0200000_hdb_en_20 85 / 92...
  • Page 86 Operation Fig. 7-13: CTRL signal variant 2 Fig. 7-14: CTRL signal variant 3 User manual 9000-41011-0200000_hdb_en_20 86 / 92...
  • Page 87 Operation Diagnostic 7.5.1 Mico Pro PS (power supply) Power LED indication LED state Description Input voltage not connected Permanently lit Output voltage OK (≥21 V Green Permanently lit Power supply alarm; Output voltage too low (<21 V Tab. 7-1: Power Alarm LED indication LED state...
  • Page 88 Operation 7.5.3 Mico Pro fix and flex ON/OFF LED indication LED state Description Device is switched off (no power supply available on the input side) Permanently lit Channel connected, function OK Green Flashing Channel in the limit range, load >90 % of the tripping current Green Permanently lit...
  • Page 89 Appendix Appendix Components Mico Pro PS (power-supply) Designation Art.-No. Mico Pro PS 5-100-240/24 9000-41190-0000105 Mico Pro PS 10-100-240/24 9000-41190-0000110 Mico Pro PM (power module) Power feeding module for system supply and control options Designation Art.-No. Mico Pro PM 24 V DC / 40 A 9000-41190-0000000 Mico Pro PD (power distribution) Potential distributor...
  • Page 90 Appendix Accessories PRODUCTS AND ACCESSORIES You will find a wide range of products in our catalog or in our Murrelektronik online shop http://shop.murrelektronik.com Accessories Type Article number Packaging unit Designation label White 996078 1 PU = 64 pieces 10 x 5 mm Mico Pro Plug-In link Blue bridge 9000-41000-0000000 1 PU = 1 piece...
  • Page 91 Appendix amended, or copied, and transferred to the customer's users as part of the customer's own technical documentation on paper or on electronic media. In this case, the customers shall bear sole responsibility for the correctness of the contents of the technical documentation produced by them. If the technical documentation is integrated in part, or in full in the customer's technical documentation, the customer shall refer to the copyright of Murrelek- tronik GmbH.
