4.10.2 AUTOMATIC MASTER STREAM NOZZLES

Automatic nozzles maintain a constant pressure by adjusting their opening to match the available flow. Consult the nozzle
manufacturer for maximum flow and pressure ratings. In all cases, do not exceed 1250 gpm (5000 l/min) or 175 psi (12 bar) on a truck
mounted monitor or 800 gpm (3000 l/min) on the STOW-A-WAY base.

4.10.3 STREAM STRAIGHTENERS

Stream quality, especially with smooth bore nozzles, is generally improved with a stream straightener because the water must make
many bends passing through a monitor.

4.11 TRANSPORTING MONITOR ON TRUCK MOUNT BASE

If the monitor is to be transported on a truck mount base, the horizontal lock should be kept locked to keep the monitor from spinning
on its base. The rotational position can be locked by moving the rotation lock lever to its down position. The nozzle may be supported
by a bracket or pointed straight up.

5.0 STOW-A-WAY 800 BASE

The portable base allows the monitor to be positioned in places that are not accessible with a fire truck. The legs are made of stainless
spring steel and will flex when in use to compensate for small ground irregularities. It is intended for maximum flows of 800 gpm (3000
l/min).

5.1 SITE SELECTION

Safe operation of the monitor on the portable base begins with site selection. The site should be a safe distance from the fire yet within
reach of the nozzle stream. Select a flat even surface within 8 feet of a sturdy stationary object that can be used as an attachment point
for the anchor strap. Set up the portable base with the anchor point between the portable base and desired target of the nozzle stream.

5.2 EXTENDING PORTABLE BASE LEGS

The portable base legs are extended by following these steps:
(Refer to figures 5.2.1, 5.2.2, & 5.2.3)
a) Hold the base carrying handle with one hand and grasp the end of one
of the longer legs with the other hand. Pull this leg away from the base
forward in an arc, until the locking pin engages. The locking pin is spring
loaded and automatically engages when the legs are in the correct
position. Watch the leg lock knob drop down, even with the lower band
on the base, indicated by an arrow.
b) Repeat procedure (a) to extend other set of legs.
c) Set portable base on even ground with all leg spikes in contact with the ground.

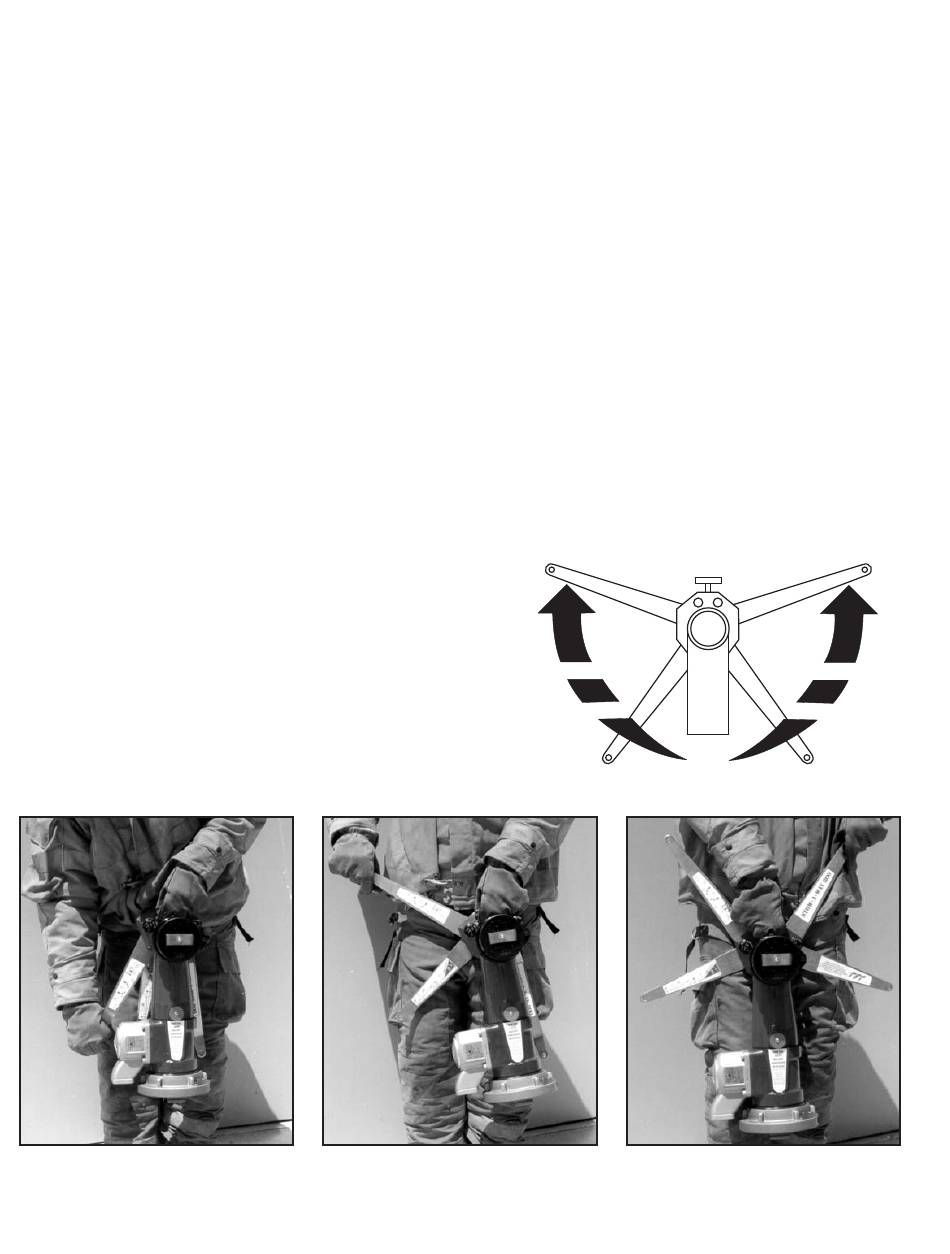

Figure 5.2.1 Figure 5.2.2 Figure 5.2.3
Hold base carrying handle and One set of legs opened and Both sets of legs opened and
grasp end of longer leg locked in position locked in position
