3.1 CROSSFIRE PART IDENTIFICATION

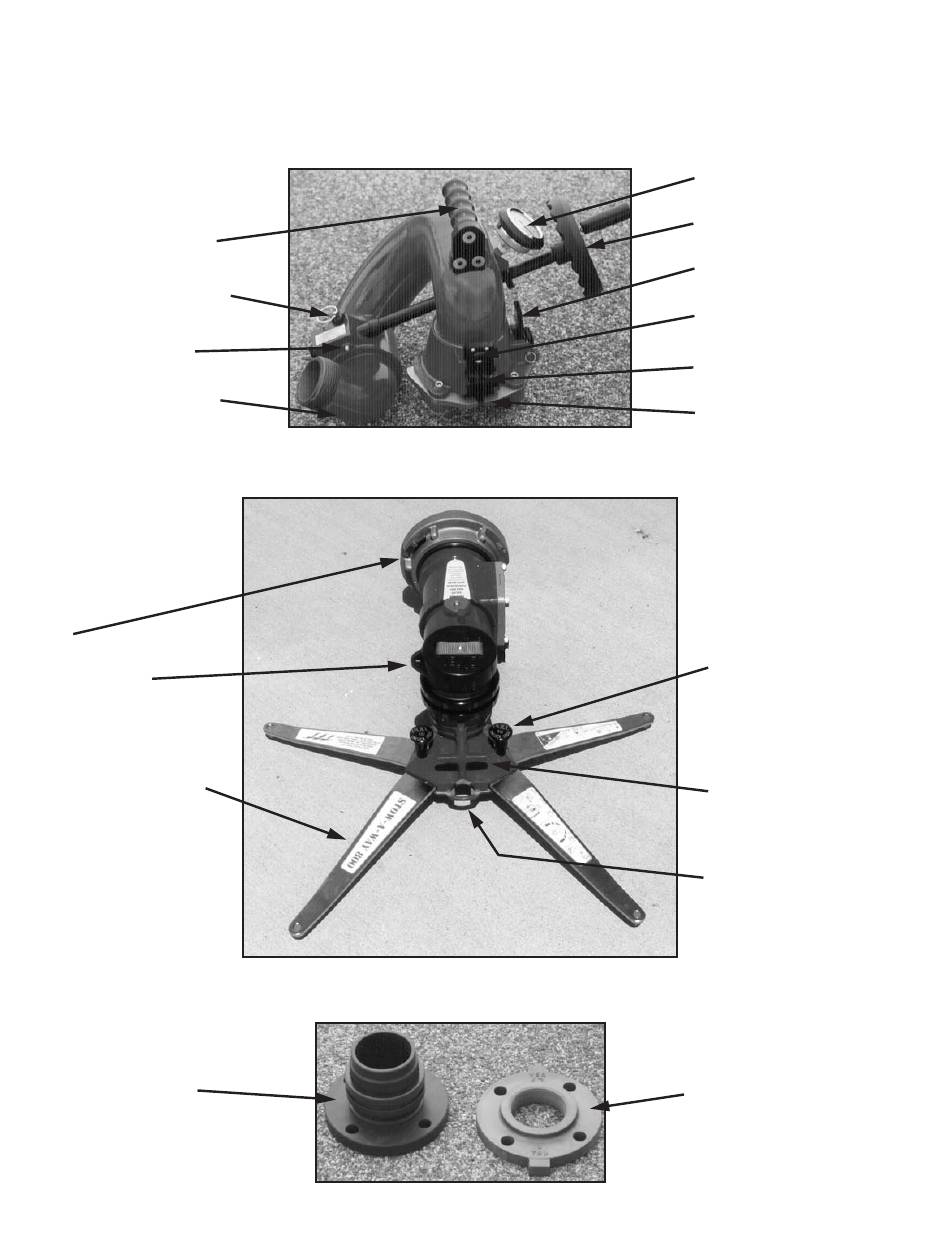

Figures 3.1.1, 3.1.2, & 3.1.3 show the CROSSFIRE monitor, STOW-A-WAY 800 portable base, truck mount adapter and identifies the
various parts and controls.
CROSSFIRE
MONITOR TOP
Carrying Handle
Elevation Pin Stop
Grease Fitting
Automatic Drain
STOW-A-WAY 800
BASE
Inlet
Anchor Strap
& Storage Cover
Stainless Steel Leg
TRUCK MOUNT
ADAPTOR
Figure 3.1.1
Figure 3.1.2
Figure 3.1.3
4
Pressure Gauge
Elevation Control
Rotation Lock
Safety Plunger
Slide Bar
Pawls
Leg Lock Knob
Carrying Handle
Anchor
Attachment Point
COMPANION
FLANGE
