4.0 CROSSFIRE DEPLOYMENT

The CROSSFIRE monitor can be used on either a truck mount adaptor, Extend-A-Gun or portable base. Installation on either base
makes use of a quick connect swivel joint. The use of each base and the quick connect joint is explained in the following sections.

4.1 QUICK CONNECT SWIVEL JOINT

Two pawls, actuated by the slide bar, engage in the base swivel to make the quick connect joint. A safety plunger engages in the slide
bar to prevent accidental unlocking of the slide bar when the monitor is under pressure.

4.2 INSTALLING MONITOR ON BASE

To install the monitor on either the truck mount flange or portable base: Refer to figures 4.2.1, 4.2.2, & 4.2.3.

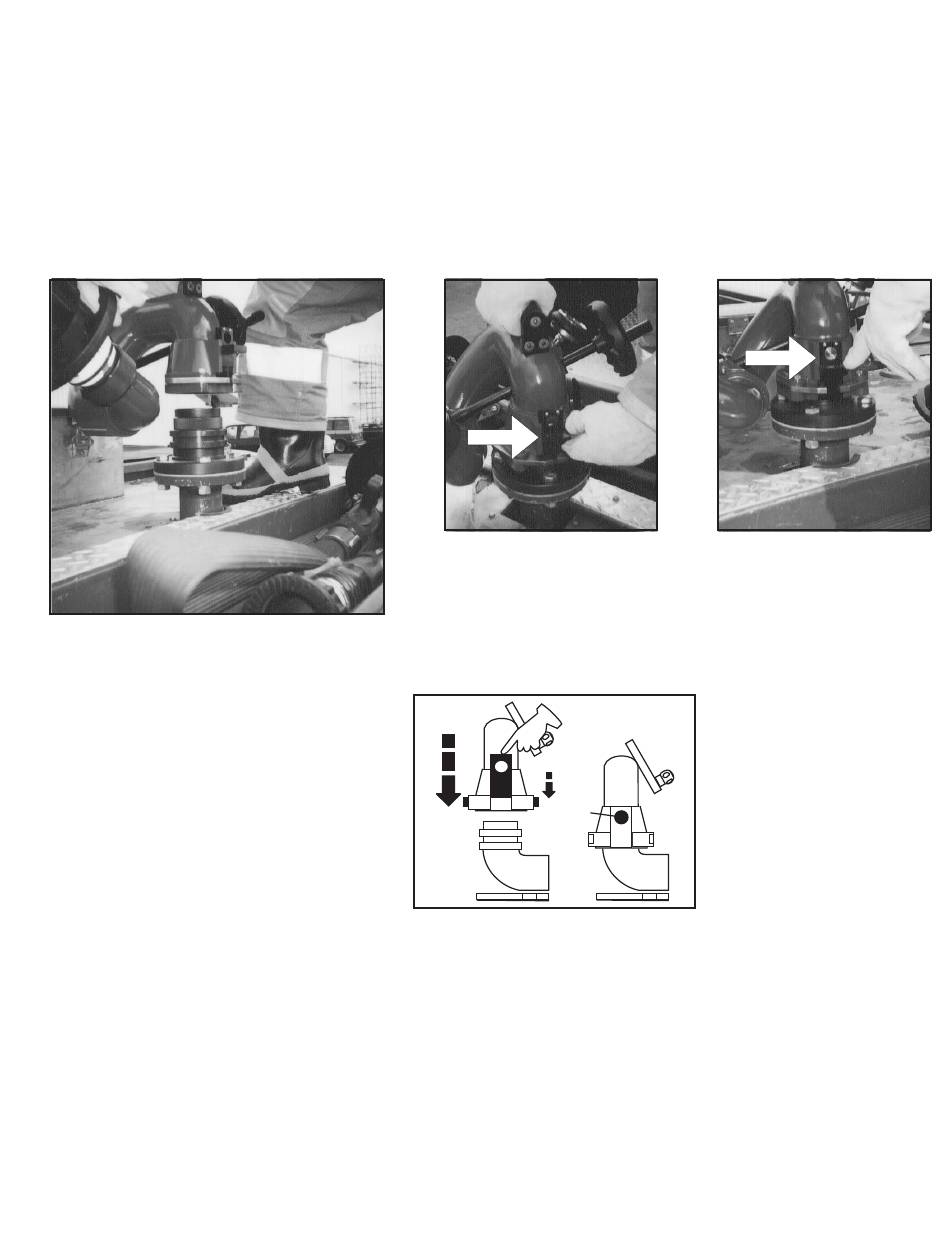

Figure 4.2.1
A
A) Turn elevation handwheel to make sure the
elevation of the nozzle is above the 35° safety stop.
Verify that the elevation stop pin is down and
engaged.
Make sure the slide bar is in the up position.

4.3 REMOVING MONITOR TOP FROM BASE

To remove the monitor from it's base:
• Stop all water flow.
• Depress the safety plunger and lift the slide bar which will disengage the spring loaded pawls from the groove in the base.
• Lift the monitor straight up off the base by the handle on top of the monitor.
4.4 SIDE-TO-SIDE ROTATION AND ROTATION LOCK
Side-to-side rotation is accomplished by rotating the monitor on its base. The rotational position can be locked by moving the rotation
lock lever to its down position as shown in Figures 4.4.1 & 4.4.2. Before the monitor is removed from the base, the rotation lock should
be manually disengaged. A small spring holds the rotational lock in the unlocked position. When not rotating the monitor on the base,
keep the rotation lock locked.
Figure 4.2.2
B
Slide bar up, safety
plunger is not engaged.
B) Hold the monitor by the top
carrying handle, position
monitor over base and slide
straight down.
A
B
C
5
Figure 4.2.3
C
Slide bar locked, safety
plunger is engaged.
C) Push the slide bar down,
watch the pawls engage the
groove in the base and the
safety plunger engage in the
hole in the slide bar.
