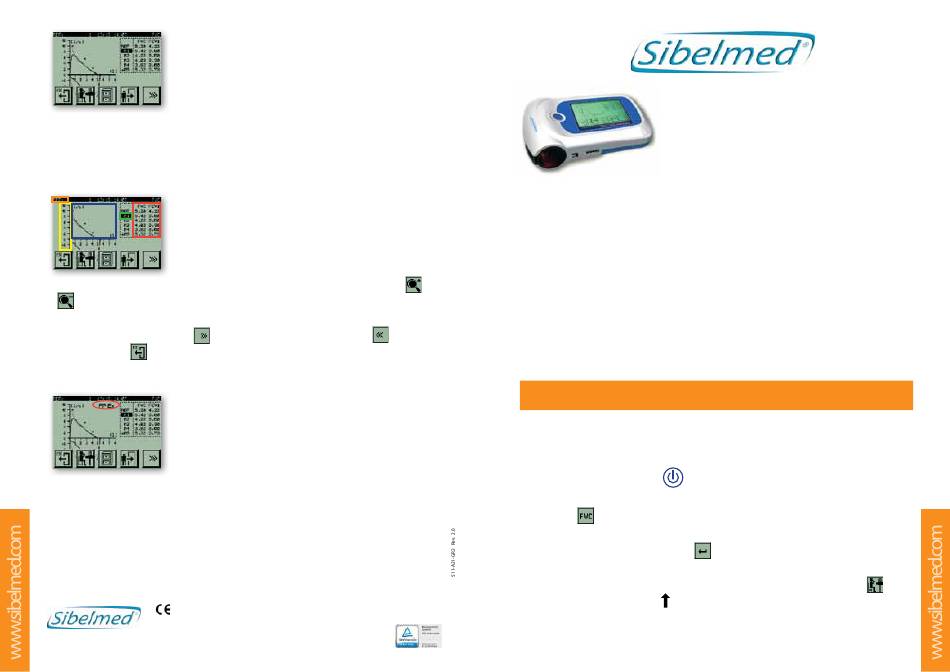

Sibelmed DATOSPIR MICRO B Quick Reference Manual

Once the maneuver is finished, the values of the FVC and FEV1
parameters appear on the top right-hand of the screen, underneath
the REFerence values (theoretical).
If three or more maneuvers have been performed and the FVC and/or
FEV1 parameters blink on and off, this indicates that repeatability
criterion has been fulfilled for one or both parameters..
This criterion indicates that the two best FVC or FEV1 values do not differ by more than 150 ml if FVC is
more than 1 liter or more than 100 ml if FVC is less than or equal to one liter.
The device allows us to perform any number of necessary maneuvers. The DATOSPIR MICRO always
stores the five best maneuvers for Forced Vital Capacity (FVC), and orders them according to ATS/ERS
criteria, so that M1 is the best and M5 the worst.
AXES to switch from one graphic type to the other
Press on
(Flow/Volume or Volume/Time).
Press on PARAMETERS, to view the screen containing the data of the
selected maneuver.
Press on a MANEUVER, to select it. This allows you to see a graphic,
consult parameters or print out a report.
Press on the GRAPHIC area to delete the regular keys and enable the magnifying key and use
to enlarge or reduce. Press on the same area again to return to the regular keys view.
REFERENCE
Press on the area to access the patient's data.
To view the second set of keys, press and to return to the first set of keys, press
Remember that the key can be used to return to the menu without losing the available infor-
mation, except if a new patient code is entered or on certain other occasions, but a warning is always
displayed before loosing the data.
If the warnings are enabled, once the maneuver is finished, one or more
WARNINGS may appear on the screen indicating that the maneuver has
not been performed according to one or more ATS/ERS criteria.
FP- This indicates that expiration did not end satisfactorily because
the variation of accumulated volume during the last second of the
maneuver was over 25 ml, or that the maneuver lasted for less than
6 seconds (in individuals 10 or older) or less than 3 seconds (in children under 10).
EX- This indicates that the expiration did not start satisfactorily because the extrapolated volume was greater than 5% of the FVC or 0.15 liters.
According to the ATS/ERS recommendations, this volume should be lower than 5% of the FVC or 0.15 liters, whichever is greater.
WARNING: The DATOSPIR MICRO always stores the five best Forced Vital Capacity (FVC) maneuvers and these
are ordered according to ATS/ERS criterion, meaning that M1 is the best and M5 the worst. Therefore, to present
the diagnosis, print the report or save the maneuver for POSTbronchodilation or for the internal DataBase it is
recommendable to use M1, unless the technician deems it convenient to use a different one.
0318
Producto clase IIa según Directiva 93/42/CEE
SIBEL S.A.U., Rosellón 500 bajos, 08026 BARCELONA (Spain)
National Sales Office: Tel. 93 436 00 08 - E-mail: comercial@sibelmed.com
International Sales: Tel. +34 93 436 00 07 - E-mail: export@sibelmed.com
After Sales Service: Tel. +34 93 433 54 50 - E-mail: sat@sibelmed.com
Fax: +34 93 436 16 11 www.sibelmed.com
Thank you for purchasing a SIBELMED spirometer. SIBELMED is a leading manufacturer of
spirometry technology. SIBELMED spirometers are supplied with multiple functions that allow
absolute control and maximum comfort while performing spirometry maneuvers.
This is a concise guide that will allow you to perform the basic functions quickly. For maximum
performance, refer to the USER

Installation / Location

or
The DATOSPIR MICRO
Be careful not to use the equipment in places that:
- Are not safe for the patient or can cause patient stress.
- Can be subject to splashing of water or other liquids.
- Are subject to strong air currents.
Once the batteries have been placed correctly, the equipment is ready to operate.
Use products that are certified in accordance with directive 93/42/CEE which ensure the patient's
safety and the quality of the spirometers.
MY FIRST SPIROMETRY
(A) Perfoming a FVC (Forced Vital Capacity) maneuver:
1. Start the equipment by pressing
2. The MAIN SCREEN appears.
3. Press the key to view the screen to enter patient parameters,
screen will appear, depending on the mode selected).
4. Enter the patient's parameters and press
maneuver will appear.
5. After having instructed the patient and the patient is ready for the maneuver, press the
and wait until a blinking arrow
THE FVC MANEUVER CAN NOW BE STARTED
quick reference guide
DATOSPIR MICRO
Models B and
MANUAL.
is totally portable and autonomous and does not require special installation.
step by step
>
1 second.
(a numeric or alphanumeric
A screen containing the axes for plotting the
appears on the screen.
C
key,
