C&T Solution RCO-3200 Series User Manual

Advanced fanless embedded system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S
MANUAL
RCO-3200 Series
Advanced Fanless Embedded System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCO-3200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for C&T Solution RCO-3200 Series

Summary of Contents for C&T Solution RCO-3200 Series

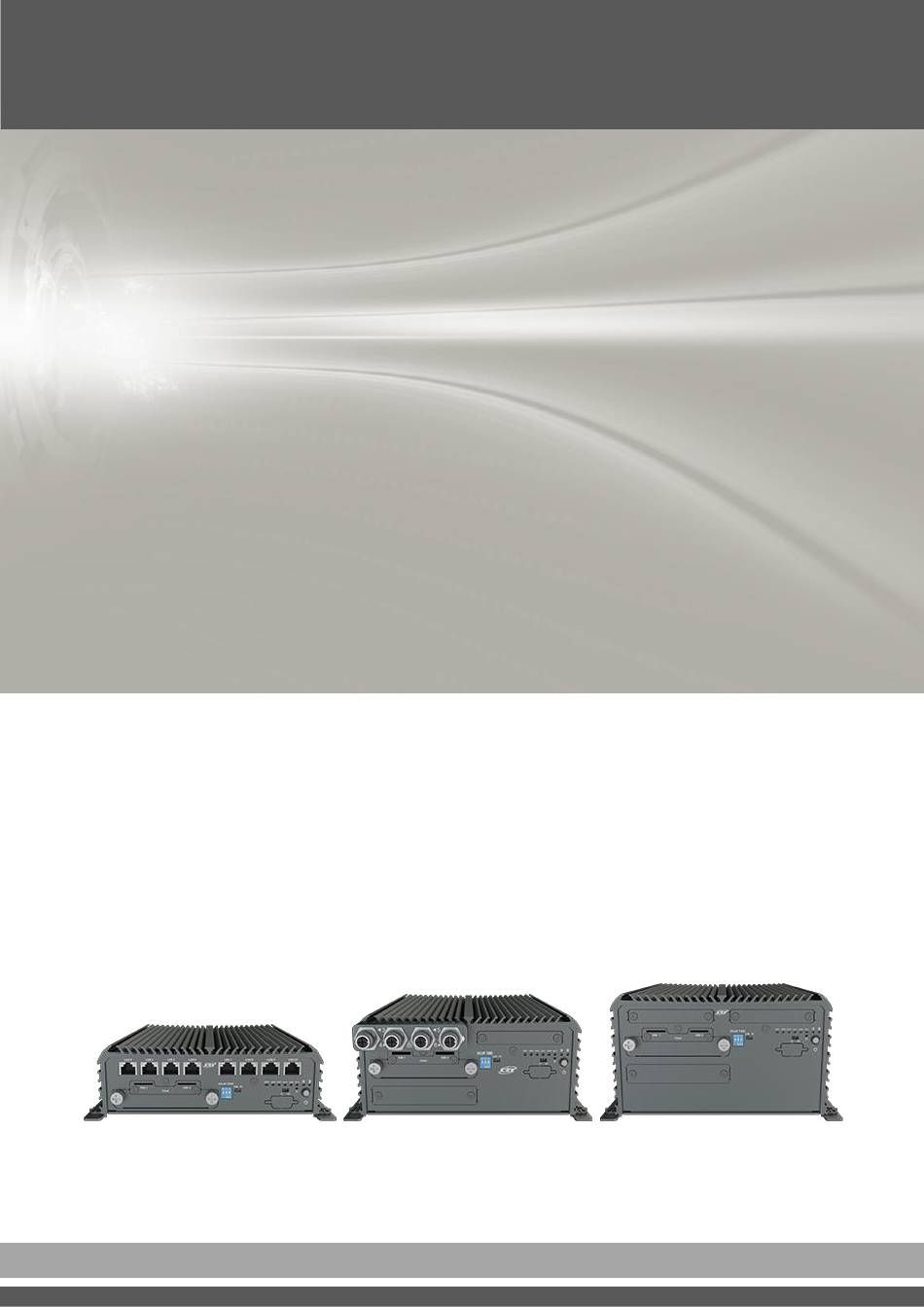

  • Page 1 USER’S MANUAL RCO-3200 Series Advanced Fanless Embedded System...

  • Page 2: Table Of Contents

    RCO-3200 | User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision …………………………………………………………………………………………..……………….……….. 04 Disclaimer ………………………………………………………..…….…….………………………….………………..04 Copyright Notice …………………………………….…………………….…………………………………………… 04 Trademarks Acknowledgment …………..………………………………………………………....04 Environmental Protection Announcement …………………………….………………….……………….. 04 Safety Precautions ………………………………………….……………………………….…………….………….. 05 Technical Support and Assistance …………………………………….…………….…………….…………….06 Conventions Used in this Manual ………………………………………………………………….….………..06 Package Contents …………………………………………………………………………………………….…………...
  • Page 3 RCO-3200 | User’s Manual Chapter 3 System Setup …………………………..……………………………………………56 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing …………………………………………………………………….……………………….. 57 Removing chassis bottom cover ……………….…..…….………..…….…….………….… 57 Removing PCIe/PCI expansion module ……………………………..….…....58 Installing SODIMM ………………….………………….………………………..…….……..…..59 Installing Mini PCIe card / mSATA …….………..……….…..…..….………….…….……..

  • Page 4: Prefaces

    RCO-3200 | User’s Manual Prefaces Revision Revision Description Date Manual Released 2018/12/27 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. Premio Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice and does not represent a commitment on the part of Premio Inc.

  • Page 5: Safety Precautions

    Preface RCO-3200 | User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions: ⚫ Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. ⚫ The power outlet shall be installed near the equipment and shall be easily accessible. ⚫...

  • Page 6: Technical Support And Assistance

    Preface RCO-3200 | User’s Manual Technical Support and Assistance 1. Visit the Premio Inc. website at www.premioinc.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance.

  • Page 7: Package Contents

    Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty RCO-3200 Series Embedded System Utility DVD Driver Wall Mount Kit Accessory Kit DVI to VGA Adapter Ordering Information Model No.

  • Page 8: Optional Accessory

    Preface RCO-3200 | User’s Manual Ordering Information Model No. Product Description Advanced Fanless Embedded System with Intel® Pentium® Processor N4200, 2x LAN, RCO-3211P-N4200 1x PCI Slot Advanced Fanless Embedded System with Intel® Pentium® Processor N4200, 6x LAN, RCO-3211P-4L-N4200 1x PCI Slot Advanced Fanless Embedded System with Intel®...

  • Page 9: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 10: Overview

    RCO-3200 series are ruggedized systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reserve voltage protection, and wide range DC power input makes RCO-3200 series are safety system for all industrial applications.

  • Page 11: Hardware Specification

    • 8x 802.3at Compliant PoE Port, The Maximum DC Power Physical Delivery on Each PoE is 10W (RCO-3200-8P and RCO-3200-8P- M12 Only) • RCO-3200 Series ✓ Dimension (WxDxH, mm): 185 x 197 x 57.4 mm Audio ✓ Weight: 1.93 kg ~ 2.35 kg • Codec: Realtek ALC888S •...

  • Page 12: System I/O

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.3 System I/O 1.3.1 RCO-3200 Front Panel Universal I/O Bracket Power on/off switch Used to customized I/O output Press to power-on or power-off the system HDD port Reset switch Removable 2.5" SATA HDD Area Press to reset the system Power LED AT/ATX mode select switch...
  • Page 13 Chapter 1: Product Introductions RCO-3200 | User’s Manual Rear Panel LAN port DC IN Used to connect the system to a local area Used to plug a DC power input with terminal network block Remote Power on/off Terminal Block DVI-I port Used to plug a remote power on/off terminal Used to connect a DVI monitor or connect block...

  • Page 14: Rco-3200-4L(P)

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.3.2 RCO-3200-4L(P) Front Panel PoE Port Power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network with power over Ethernet (RCO-3200-4P Reset switch Only) Press to reset the system Universal I/O Bracket...
  • Page 15 Chapter 1: Product Introductions RCO-3200 | User’s Manual Rear Panel LAN port DC IN Used to connect the system to a local area Used to plug a DC power input with terminal network block Remote Power on/off Terminal Block DVI-I port Used to plug a remote power on/off terminal Used to connect a DVI monitor or connect block...

  • Page 16: Rco-3200-4L(P)-M12

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.3.3 RCO-3200-4L(P)-M12 Front Panel M12 PoE Port Power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network with power over Ethernet (RCO-3200- Reset switch 4P-M12 Only) Press to reset the system...
  • Page 17 Chapter 1: Product Introductions RCO-3200 | User’s Manual Rear Panel LAN port DC IN Used to connect the system to a local area Used to plug a DC power input with terminal network block Remote Power on/off Terminal Block DVI-I port Used to plug a remote power on/off terminal Used to connect a DVI monitor or connect block...

  • Page 18: Rco-3200-8L(P)

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.3.4 RCO-3200-8L(P) Front Panel PoE Port Power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network with power over Ethernet (RCO-3200-8P Reset switch Only) Press to reset the system HDD port...
  • Page 19 Chapter 1: Product Introductions RCO-3200 | User’s Manual Rear Panel LAN port DC IN Used to connect the system to a local area Used to plug a DC power input with terminal network block Remote Power on/off Terminal Block DVI-I port Used to plug a remote power on/off terminal Used to connect a DVI monitor or connect block...

  • Page 20: Rco-3200-8L(P)-M12

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.3.5 RCO-3200-8L(P)-M12 Front Panel M12 PoE Port Power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network with power over Ethernet (RCO-3200- Reset switch 8P-M12 Only) Press to reset the system...
  • Page 21 Chapter 1: Product Introductions RCO-3200 | User’s Manual Rear Panel LAN port DC IN Used to connect the system to a local area Used to plug a DC power input with terminal network block Remote Power on/off Terminal Block DVI-I port Used to plug a remote power on/off terminal Used to connect a DVI monitor or connect block...

  • Page 22: Rco-3211E(P)

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.3.6 RCO-3211E(P) Front Panel Universal I/O Bracket Power on/off switch Used to customized I/O output Press to power-on or power-off the system HDD port Reset switch Removable 2.5" SATA HDD Area Press to reset the system Power LED AT/ATX mode select switch Indicates the power status of the system...
  • Page 23 Chapter 1: Product Introductions RCO-3200 | User’s Manual Rear Panel LAN port DC IN Used to connect the system to a local area Used to plug a DC power input with terminal network block Remote Power on/off Terminal Block DVI-I port Used to plug a remote power on/off terminal Used to connect a DVI monitor or connect block...

  • Page 24: Rco-3211E-4L(P) / Rco-3211P-4L(P)

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.3.7 RCO-3211E-4L(P) / RCO-3211P-4L(P) Front Panel PoE Port Power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network with power over Ethernet (RCO- Reset switch 3211E/P-4P Only) Press to reset the system...
  • Page 25 Chapter 1: Product Introductions RCO-3200 | User’s Manual Rear Panel LAN port DC IN Used to connect the system to a local area Used to plug a DC power input with terminal network block Remote Power on/off Terminal Block DVI-I port Used to plug a remote power on/off terminal Used to connect a DVI monitor or connect block...

  • Page 26: Rco-3211E-4L(P)-M12 / Rco-3211P-4L(P)-M12

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.3.8 RCO-3211E-4L(P)-M12 / RCO-3211P-4L(P)-M12 Front Panel M12 PoE Port Power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network with power over Ethernet (RCO- Reset switch 3211E/P-4P-M12 Only) Press to reset the system...
  • Page 27 Chapter 1: Product Introductions RCO-3200 | User’s Manual Rear Panel LAN port DC IN Used to connect the system to a local area Used to plug a DC power input with terminal network block Remote Power on/off Terminal Block DVI-I port Used to plug a remote power on/off terminal Used to connect a DVI monitor or connect block...

  • Page 28: Rco-3222Ee(Pp)

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.3.9 RCO-3222EE(PP) Front Panel Universal I/O Bracket Power on/off switch Used to customized I/O output Press to power-on or power-off the system HDD port Reset switch Removable 2.5" SATA HDD Area Press to reset the system Power LED AT/ATX mode select switch Indicates the power status of the system...
  • Page 29 Chapter 1: Product Introductions RCO-3200 | User’s Manual Rear Panel LAN port DC IN Used to connect the system to a local area Used to plug a DC power input with terminal network block Remote Power on/off Terminal Block DVI-I port Used to plug a remote power on/off terminal Used to connect a DVI monitor or connect block...

  • Page 30: Rco-3222Ee-4L(P) / Rco-3222Pp-4L(P)

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.3.10 RCO-3222EE-4L(P) / RCO-3222PP-4L(P) Front Panel PoE Port Power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network with power over Ethernet (RCO- Reset switch 3222EE/PP-4P Only) Press to reset the system...
  • Page 31 Chapter 1: Product Introductions RCO-3200 | User’s Manual Rear Panel LAN port DC IN Used to connect the system to a local area Used to plug a DC power input with terminal network block Remote Power on/off Terminal Block DVI-I port Used to plug a remote power on/off terminal Used to connect a DVI monitor or connect block...

  • Page 32: Rco-3222Ee-4L(P)-M12 / Rco-3222Pp-4L(P)-M12

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.3.11 RCO-3222EE-4L(P)-M12 / RCO-3222PP-4L(P)-M12 Front Panel M12 PoE Port Power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network with power over Ethernet (RCO- Reset switch 3222EE/PP-4P-M12 Only) Press to reset the system...
  • Page 33 Chapter 1: Product Introductions RCO-3200 | User’s Manual Rear Panel LAN port DC IN Used to connect the system to a local area Used to plug a DC power input with terminal network block Remote Power on/off Terminal Block DVI-I port Used to plug a remote power on/off terminal Used to connect a DVI monitor or connect block...

  • Page 34: Mechanical Dimensions

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.4 Mechanical Dimensions 1.4.1 RCO-3200 / RCO-3200-4L(P) / RCO-3200-4L(P)-M12 / RCO-3200-8L(P) / RCO-3200-8L(P)-M12 Unit: mm...

  • Page 35: Rco-3211E(P) / Rco-3211E(P)-4L(P) / Rco-3211E(P)-4L(P)-M12

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.4.2 RCO-3211E(P) / RCO-3211E(P)-4L(P) / RCO-3211E(P)-4L(P)-M12 Unit: mm...

  • Page 36: Rco-3222Ee(Pp) / Rco-3222Ee(Pp)-4L(P) / Rco-3222Ee(Pp)-4L(P)-M12

    Chapter 1: Product Introductions RCO-3200 | User’s Manual 1.4.3 RCO-3222EE(PP) / RCO-3222EE(PP)-4L(P) / RCO-3222EE(PP)-4L(P)-M12 Unit: mm...

  • Page 37: Chapter 2 Switches And Connectors

    Chapter 2 Switches and Connectors...

  • Page 38: Switch And Connector Locations

    Chapter 2: Switches and Connectors RCO-3200 | User’s Manual 2.1 Switch and Connector Locations 2.1.1 Top View...

  • Page 39: Bottom View

    Chapter 2: Switches and Connectors RCO-3200 | User’s Manual 2.1.2 Bottom View...

  • Page 40: Connector / Switch Definition

    Chapter 2: Switches and Connectors RCO-3200 | User’s Manual 2.2 Connector / Switch Definition List of Connector / Switch Connector Location Definition AT_ATX1 AT / ATX Power Mode Switch CLR_CMOS1 Clear BIOS Switch CAR_PWR1 PC / Car Mode Switch DELAY_TIME1 Car mode PC turn off delay time CFAST1_1 CFast Socket...

  • Page 41: Switch Definitions

    Chapter 2: Switches and Connectors RCO-3200 | User’s Manual 2.3 Switches Definitions AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Right) ATX Power Mode（Default） 2-3 (Left) AT Power Mode CLR_CMOS1: Clear BIOS Switch Switch Definition Normal Status (Default) Clear BIOS CAR_PWR1: PC / Car Mode Switch Switch...
  • Page 42 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual Step of Setting Power Ignition Step 1: To select power ignition by PC/CAR switch. Step 2: To configure the power off delay time, please check the Delay Time Setting Options in advance.

  • Page 43: Connector Definitions

    Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors RCO-3200 | User’s Manual 2.4 Connectors Definitions CFAST1_1: CFast Socket Definition Definition Definition PC10 SATA_TXP1 PC11 SATA_TXN1 PC12 PC13 +3.3V SATA_RXN1 PC14 +3.3V SATA_RXP1 PC15 PC16 PC17 PWR_SW1: Power Button Definition Definition Power Button...
  • Page 44 Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors RCO-3200 | User’s Manual USB3_4_1: USB2.0 Connector, Type A USB3_4_1 Definition USB2_D2- USB2_D2+ USB2_D3- USB2_D3+ SIM1_1, SIM2_1：SIM Card Socket Definition Definition UIM_PWR UIM_VPP UIM_RESET UIM_DATA UIM_CLK...
  • Page 45 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual COM1_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DCD1 TX1- DATA1- RXD1 TX1+ DATA1+ TXD1 RX1+ DTR1 RX1- DSR1...
  • Page 46 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual COM3_2： RS232 / RS422 / RS485 Connector Connector Type: 2X5 10-pin box header, 2.54mm pitch COM3_1 RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DCD3 TX3- DATA3- RXD3 TX3+ DATA3+...
  • Page 47 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual COM5_2： RS232 / RS422 / RS485 Connector Connector Type: 2X5 10-pin box header, 2.54mm pitch COM3_1 RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DCD5 TX5- DATA5- RXD5 TX5+ DATA5+...
  • Page 48 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual LAN1, LAN2: RJ45 with LEDs Port Connector Type: RJ45 Connector Definition Definition LAN1_MDI0P LAN1_MDI2N LAN1_MDI0N LAN1_MDI1N LAN1_MDI1P LAN1_MDI3P LAN1_MDI2P LAN1_MDI3N Definition Definition LAN2_MDI0P LAN2_MDI2N LAN2_MDI0N LAN2_MDI1N LAN2_MDI1P LAN2_MDI3P LAN2_MDI2P LAN2_MDI3N Link LED Status Definition Act LED Status Definition...
  • Page 49 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual LAN3, LAN4, LAN5, LAN6, LAN7, LAN8, LAN9, LAN10: M12 Lan Port Connector Type: M12 X-code Female Connector LAN3~LAN6 LAN3~LAN6 Definition Definition LAN_MDI0P LAN_MDI3N LAN_MDI0N LAN_MDI3N LAN_MDI1P LAN_MDI2P LAN_MDI1N LAN_MDI2N DC_IN1: DC Power Input Connector (+9~50V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~50VIN...
  • Page 50 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual DP1: DisplayPort Connector Definition Definition DP_LANE0_P DP_LANE3_N DP_LANE0_N DP_LANE1_P DP_AUX_P DP_LANE1_N DP_LANE2_P DP_AUX_N DP_HPD DP_LANE2_N DP_LANE3_P DP_PWR LINE_OUT1 : Line-out Jack (Green) Connector Type: 5-pin Phone Jack Definition OUT_R OUT_L MIC_IN1: Microphone Jack (Pink) Connector Type: 5-pin Phone Jack Definition MIC_R...
  • Page 51 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual DIO1: Digital Input / Output Connector Connector Type: Terminal Block 2X9 18-pin, 3.5mm pitch Definition Definition External DC INPUT External GND...
  • Page 52 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual PWR_SW2 : Remote Power Switch Connector Type: Terminal Block 1X2 2-pin, 3.5mm pitch Definition Power Button...
  • Page 53 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual MINIPCIE1: Mini PCI-Express / mSATA Socket Definition Definition Definition WAKE# +3.3V +3.3V USB_D5+ +3.3V PCIE RST# PCIE_RXN3 +3.3V (SATA_RXN1) +1.5V +3.3V PCIE_RXP3 CLKREQ3# (SATA_RXP1) USIM1_VCC USIM1_DATA +1.5V PCIE_CLKN3 USIM1_CLK SMB_CLK +1.5V PCIE_TXN3 PCIE_CLKP3 (SATA_TXN1)
  • Page 54 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual SATA1_1, SATA2: SATA with Power Connector SATA1_1 SATA1_1 SATA2 SATA2 Definition Definition Definition Definition SATA_TXP0 SATA_TXP1 SATA_TXN0 SATA_TXN1 SATA_RXN0 SATA_RXN1 SATA_RXP0 SATA_RXP1 +3.3V +3.3V +3.3V +12V +3.3V +12V +3.3V +12V +3.3V +12V +12V +12V...
  • Page 55 Chapter 2: Switches and Connectors RCO-3200 | User’s Manual PWR_LED1: Power LED Status Definition POWER LED+ POWER LED- HDD_LED1: HDD Access LED Status Definition HDD LED+ HDD LED- LAN1_LINK1, LAN2_LINK1 : LAN Link LED Status Definition LINK LED+ LINK LED-100Mbps- LINK LED 100Mbps- LAN1_ACT1, LAN2_ACT1 : LAN Active LED Status Definition...

  • Page 56: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 57: Set Torque Force To 3.5 Kgf-Cm To Execute All The Screwing And Unscrewing

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing. In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 3.2 Removing chassis bottom cover 1.

  • Page 58: Removing Pcie/Pci Expansion Module

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.3 Removing PCIe/PCI expansion module 1. This step only applies to RCO-3211 and RCO-3222 series, which is equipped with PCIe/PCI expansion module. The following steps use RCO-3222 as example. 2. Unscrew four screws (M3x5L) circled below. 3.

  • Page 59: Installing Sodimm

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.4 Installing SODIMM 1. Unscrew the below three screws to remove the HDD bracket. 2. After removing internal SATA HDD bracket, you will be able to access the memory slot.
  • Page 60 Chapter 3: System Setup RCO-3200 | User’s Manual 3. Insert memory module from 45 degree direction. 4. Press the memory module vertically downward until you hear the “click” sound. Make sure the memory module is firmly in place.

  • Page 61: Installing Mini Pcie Card / Msata

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.5 Installing mini PCIe card / mSATA 1. Two mini PCIe slots are available for RCO-3200 series. MiniPCIE1 supports mSATA. MiniPCIE1 / mSATA MiniPCIE2 2. Insert mini PCIe card or mSATA module from 45 degree direction.

  • Page 62: Installing Antenna

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.6 Installing antenna 1. Four antenna holes are available for RCO-3200 series on the rear panel. 2. Remove antenna hole cover on the system panel. 3. Have antenna jack penetrate through the hole.
  • Page 63 Chapter 3: System Setup RCO-3200 | User’s Manual 4. Put on washer and fasten the nut with antenna jack. 5. Assemble the antenna and antenna jack together. 6. Attach the RF connector at the cable-end onto the communication module.

  • Page 64: Installing Hdd On Internal Sata Hdd Bay

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.7 Installing HDD on internal SATA HDD bay 1. Unscrew the below three screws (M3x5L) to remove the internal SATA HDD bay. 2. Lock the 2.5” HDD with HDD bracket using four screws (M3x4L).
  • Page 65 Chapter 3: System Setup RCO-3200 | User’s Manual 3. Install the HDD bracket following the direction below. 4. Fasten the three screws to lock the internal HDD bracket.

  • Page 66: Installing Hdd On Removable Sata Hdd Bay

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.8 Installing HDD on removable SATA HDD bay 1. Unscrew the two sun screws circled below to take out the removable SATA HDD bay. 2. Lock the 2.5” HDD with HDD bracket using four screws (M3x4L). 3.

  • Page 67: Installing Pcie/Pci Expansion Card

    RCO-3200 | User’s Manual 3.9 Installing PCIe/PCI expansion card 1. PCIe or PCI card with FHHL dimension is supported by RCO-3200 series. 2. Unscrew the screw (M3x5L) to remove the plane bracket. 3. Loose the sun screw (circled below) on the holder so the pairing arm can be adjustable.
  • Page 68 Chapter 3: System Setup RCO-3200 | User’s Manual 4. Install the PCIe/PCI card according to the below direction and ensure the gold finger is inserted into the slot. Then fasten the screw in the circle. 5. Adjust the arm until it holds the card firmly in place. Then fasten the sun screw on the holder. 6.

  • Page 69: Assemble Pcie/Pci Expansion Module

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.10 Assemble PCIe/PCI expansion module 1. Install the expansion module back in place and ensure the golden finger is inserted into the expansion slot. 2. Fasten the four screws (M3x5L) below.

  • Page 70: Assemble Chassis Bottom Cover

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.11 Assemble chassis bottom cover 1. Place the bottom cover according to the below direction and make sure the rail is facing inside the system. 2. Lock the bottom cover with the six screws (M3x5L).

  • Page 71: Assemble Sim Card

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.12 Assemble SIM card 1. Take out the removable SATA HDD bay in order to locate the SIM card slot. SIM2 SIM1 2. Now you can insert SIM card into the socket. 3.

  • Page 72: Assemble Wall Mount Kit

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.13 Installing wall mount kit 1. Wall mount kit is available for RCO-3000 series included in the standard package. 2. Place the system upside down so you can see the bottom cover. The highlighted screw holes below will be used.

  • Page 73: Assemble Din Rail Holder

    Chapter 3: System Setup RCO-3200 | User’s Manual 3.14 Installing DIN rail holder 1. Din rail holder is available for RCO-3000 series as optional accessories. 2. Place the system upside down so you can see the bottom cover with two screw holes for din rail holder.

  • Page 74: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 75: Bios Introduction

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.1 BIOS Introduction The system BIOS software is stored on EEPROM. The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del>...

  • Page 76: Main Setup

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility. The Main setup screen is showed as following when the setup utility is entered. System Date/Time is set up in the Main Menu. 4.2.1 System Date Set the system date.

  • Page 77: Advanced Setup

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.3 Advanced Setup 4.3.1 Trusted Computing (Optional) ■ Security Device Support Enable or disable TPM function...

  • Page 78: Acpi Settings

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.3.2 ACPI Settings ■ Enable ACPI Auto Configuration This item allows you to enable or disable BIOS ACPI Auto Configuration. ■ Enable Hibernation This item allows you to enable or disable system ability to hibernate. ■...
  • Page 79 Chapter 4: BIOS Setup RCO-3200 | User’s Manual ■ Serial Port 1 Configuration ⚫ Serial Port This item allows you to enable or disable serial port. ⚫ Change Settings This item allows you to change the address & IRQ settings of the specified serial port. ⚫...
  • Page 80 Chapter 4: BIOS Setup RCO-3200 | User’s Manual ■ Serial Port 3 Configuration ⚫ Serial Port This item allows you to enable or disable serial port. ⚫ Change Settings This item allows you to change the address & IRQ settings of the specified serial port. ⚫...
  • Page 81 Chapter 4: BIOS Setup RCO-3200 | User’s Manual ■ Serial Port 5 Configuration ⚫ Serial Port This item allows you to enable or disable serial port. ⚫ Change Settings This item allows you to change the address & IRQ settings of the specified serial port. ⚫...

  • Page 82: Hardware Monitor

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual ■ Watch Dog Function This setting allows you to setup the system watch-dog timer, a hardware timer that generates a reset when the software that it monitors does not respond as expected each time the watch dog polls it.

  • Page 83: Serial Port Console Redirection

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.3.5 Serial Port Console Redirection ■ Console Redirection These items allows you to enable or disable COM1 console redirection. 4.3.6 CPU Configuration ■ Intel Virtualization Technology Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions.

  • Page 84: Network Stack Configuration

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.3.7 Network Stack Configuration ■ Network Stack This item allows you to enable or disable UEFI network stack. ⚫ IPv4 PXE Support This item allows you to enable or disable IPv4 PXE Support. t. This item is configurable only when Network Stack is enabled.

  • Page 85: Csm Configuration

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.3.8 CSM Configuration ■ CSM Support Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. ■ Boot option filter This item allows you to select which type of operating system to boot. UEFI and Legacy: Allows booting from operating systems that support legacy option ROM or UEFI option ROM.

  • Page 86: Sata Configuration

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.3.9 SATA Configuration ■ SATA Port 0 This item allows you to enable or disable SATA Port 0. ■ SATA Port 0 Hot Plug Capability This item allows you to enable or disable SATA Port 0 hot plug function. ■...

  • Page 87: Usb Configuration

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.3.10 USB Configuration ■ Legacy USB Support Allows USB keyboard/ mouse to be used in MS-DOS. ■ XHCI Hand-off Determines whether to enable XHCI (USB3.0) Hand-off feature for an operating system without XHCI (USB3.0) Hand-off support.

  • Page 88: Chipset

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.4 Chipset 4.4.1 North Bridge This section provides information on the installed memory size and memory/onboard graphics- related configuration options.
  • Page 89 Chapter 4: BIOS Setup RCO-3200 | User’s Manual ■ Intel IGD Configuration This section provides onboard graphics-related configuration options. ⚫ Aperture Size This item selects the Aperture Size. Select <128MB>, <256MB> or <512MB>. ⚫ DVMT Pre-Allocated This item selects DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.

  • Page 90: South Bridge

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.4.2 South Bridge ■ HD-Audio Configuration Control detection of the HD-Audio. ⚫ HD-Audio Support Enabled: HD-Audio will be unconditionally enabled. Disabled: HD-Audio will be unconditionally disabled.
  • Page 91 Chapter 4: BIOS Setup RCO-3200 | User’s Manual ■ PCI Express Configuration ⚫ PCI Express Port 1 (I210 lan1) This item allows you to enable or disable PCI Express Port 1 (I210 lan1) in the Chipset. ⚫ Speed Change the PCIe Port Speed. Select <AUTO> ,<Gen 1> or <Gen 2> ⚫...

  • Page 92: Security

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.5 Security Security menu allow you to change administrator password and user password settings. 4.5.1 Administrator Password This item allows you to set Administrator Password. 4.5.2 User Password This item allows you to set User Password.

  • Page 93: Boot

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.6 Boot This menu allows you to setup the system boot options. 4.6.1 Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. 4.6.2 Bootup NumLock State This item selects the keyboard NumLock state.

  • Page 94: Save & Exit

    Chapter 4: BIOS Setup RCO-3200 | User’s Manual 4.7 Save & Exit This setting allows you to configure the boot settings. 4.7.1 Save Changes and Reset This item allows you reset the system after saving the changes. 4.7.2 Discard Changes and Reset Select this option to quit Setup without making any permanent changes to the system configuration.

  • Page 95: Appendix Wdt & Gpio

    Appendix WDT & GPIO This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output).

  • Page 96: Wdt Sample Code

    Appendix – WDT & GPIO RCO-3200 | User’s Manual WDT Sample Code SIO_INDEX_Port equ 04Eh SIO_DATA_Port equ 04Fh SIO_UnLock_Value equ 087h SIO_Lock_Value equ 0AAh WatchDog_LDN equ 007h WDT_UNIT equ 60h ;60h=second, 68h=minute, 40h=Disabled Watchdog timer WDT_Timer equ 30 ;ex. 30 seconds Sample code: ;Enable config mode dx, SIO_INDEX_Port...

  • Page 97: Gpio Sample Code

    Appendix – WDT & GPIO RCO-3200 | User’s Manual GPIO Sample Code ⚫ GPI 0 ~ GPI 3 GPI 0 GPI 1 GPI 2 GPI 3 IO Address 0xA03h 0xA03h 0xA03h 0xA03h Sample code ⚫ GPO 0 ~ GPO 3 GPO 0 GPO 1 GPO 2...
  • Page 98 Appendix – WDT & GPIO RCO-3200 | User’s Manual ⚫ GPI 4 ~ GPI 7 GPI 4 GPI 5 GPI 6 GPI 7 IO Address 0xA06h 0xA06h 0xA06h 0xA06h Sample code ⚫ GPO 4 ~ GPO 7 GPO 4 GPO 5 GPO 6 GPO 7 IO Address...
  • Page 99 Appendix – WDT & GPIO RCO-3200 | User’s Manual #5 : GPO 6 must be accessed by gpio configuration (IO address is protected) Set GPO 6 status to high SIO_INDEX_Port equ 04Eh SIO_DATA_Port equ 04Fh SIO_UnLock_Value equ 087h SIO_Lock_Value equ 0AAh SIO_LDN_GPIO equ 06h GPO_REG equ 0d1h GPO_6 equ 00000001b...
  • Page 100 Copyright © Premio Inc. All Rights Reserved www.premioinc.com...
