Summary of Contents for C&T Solution AIO-200-ASL-3L Series

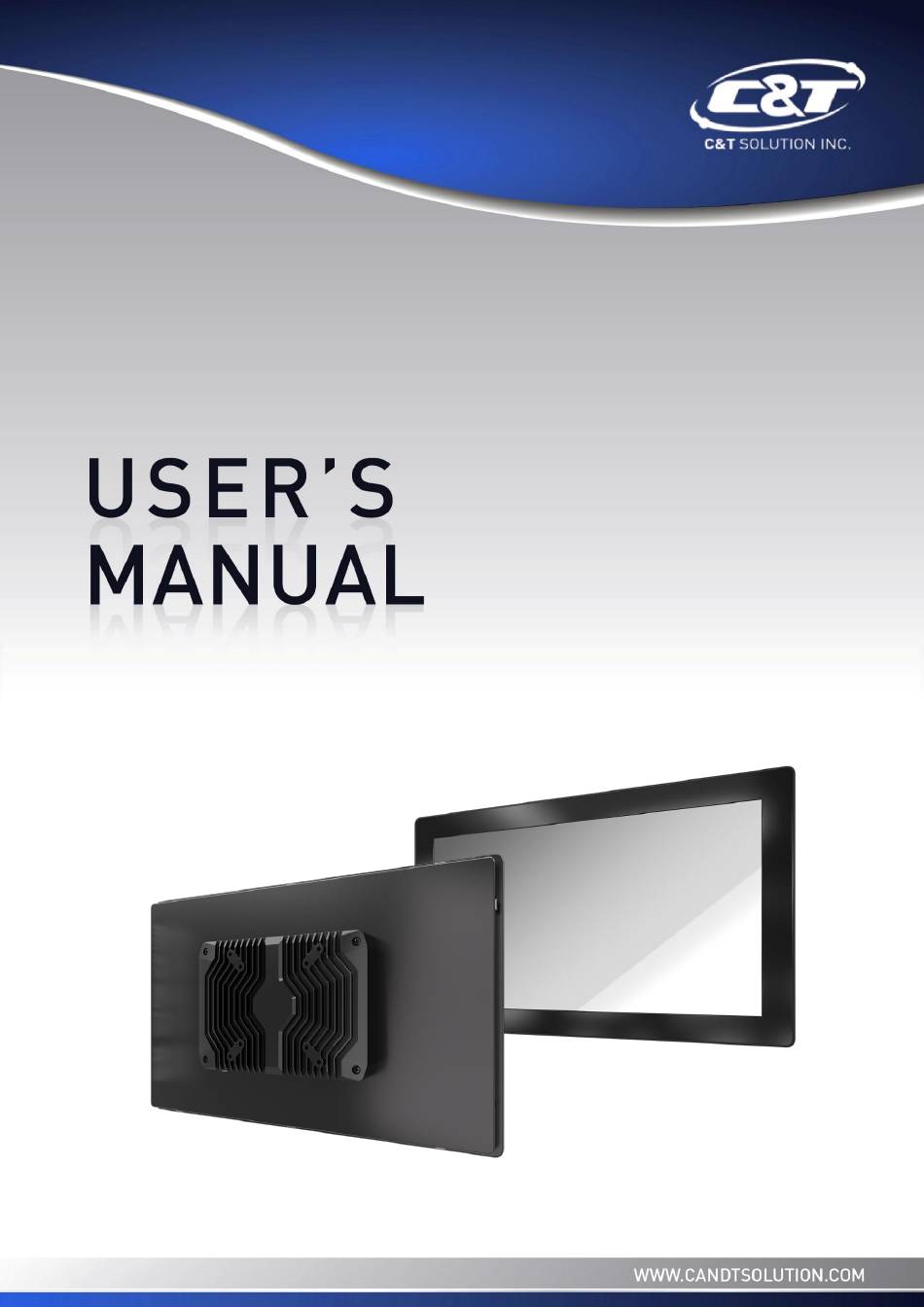

- Page 1 AIO-200-ASL-3L Series All IN One Touch Panel PC...
-
Page 2: Table Of Contents
AIO Series l User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision ………………………………………………..……………….…......…….. 04 Disclaimer ………………………………….………………………….…………………....04 Copyright Notice ………………………………………………………………………....04 Trademarks Acknowledgment …………..………………………………....... 04 Environmental Protection Announcement ………………….…………………..04 Safety Precautions …………………………………….…………….…………………………….. 05 Technical Support and Assistance ………………….…………….………………... 06 Conventions Used in this Manual ……………………………….….…………….... - Page 3 AIO Series l User’s Manual Table of Contents H/W Monitor ……………...……...….……………….…..........33 Smart Fan Configuration …...….……………….…..........33 PCI/PCIE Device Configuration .……………….…..........33 NerworkStack Configuration ….……………….…..........33 GPIO Group Configuration ……………….….………………………………..... 34 PCIE ASPM settings ……………………..….………..........34 Boot ………………………..……………….…..............35 Security ….…………………….……..….……………………………………………………..…….. 36 PCH-FW Configuration …………...….……………….…..........
-
Page 4: Prefaces
AIO Series l User’s Manual Preface Prefaces Revision Revision Description Date Manual Released 2025/01/06 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice and does not represent a commitment on the part of C&T Solution Inc. -
Page 5: Safety Precautions
Preface AIO Series l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions: ⚫ Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. ⚫ The power outlet shall be installed near the equipment and shall be easily accessible. ⚫... -
Page 6: Technical Support And Assistance
AIO Series l User’s Manual Preface Technical Support and Assistance 1. Visit the C&T Solution Inc website at https://www.candtsolution.com/ where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance. -
Page 7: Package Contents
Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty AIO-200-ASL-3L Series All IN One Touch Panel PC Adapter 60W 12V 5A 128G M.2 B key NVMe SSD 8GB DDR5 4800 MT/s Ordering Information Model No. -
Page 8: Available Models
AIO Series l User’s Manual Preface Available Models Model No. Description 10.1” Full WXGA Capacitive All IN One Touchscreen Computer AIO-W210-3L-N97 with Intel® Alder lake N97 Processor, 3x 2.5 GbE LAN 10.1” Full WXGA Capacitive All IN One Touchscreen Computer AIO-W210-3L-X7835RE with Intel®... -
Page 9: Chapter 1 Product Introductions
Chapter 1 Product Introductions... -
Page 10: Overview
AIO Series l User’s Manual Chapter 1: Product Introductions 1.1 Overview Key Features ⚫ 10.1“ / 15.6“ / 21.5" All IN One Touch Panel PC ⚫ World Class Certifications for Safety and Reliability: CE/FCC Class A/CB/UL/UKCA/IC ⚫ Front IP65 Rating for protection against water and dust ⚫... -
Page 11: Hardware Specification
AIO Series l User’s Manual Chapter 1: Product Introductions 1.2 Hardware Specification Display AIO-W210-ASL-3L AIO-W215-ASL-3L AIO-W221-ASL-3L LCD Size 10.1" (16:10) 15.6" (16:9) 21.5" (16:9) Max. Resolution 1280 x 800 1920 x 1080 (FHD) 1920 x 1080 (FHD) Brightness (cd/m2) Contrast Ratio 800:1 800:1 1,000:1... - Page 12 AIO Series l User’s Manual Chapter 1: Product Introductions Operating System 1x DP 1.4a up to 4096 × 2304 @60Hz DisplayPort Windows Windows 10 / Windows 11 HDMI 1x HDMI 1.4b up to 3840x2160 @30Hz Linux Linux Ubuntu 22.04 • COM 1: RS-232/422/485 •...
-
Page 13: System I/O
AIO Series l User’s Manual Chapter 1: Product Introductions 1.3 System I/O 1.3.1 AIO-W210-ASL-3L Power On/Off LAN port Press to power-on or power-off the system Used to connect the system to a local area network USB 3.2 Gen 2 port Used to connect USB 3.2 device DisplayPort Used to connect a DisplayPort monitor... -
Page 14: Aio-W215-Asl-3L
AIO Series l User’s Manual Chapter 1: Product Introductions 1.3.2 AIO-W215-ASL-3L Power On/Off LAN port Press to power-on or power-off the system Used to connect the system to a local area network USB 3.2 Gen 2 port Used to connect USB 3.2 device DisplayPort Used to connect a DisplayPort monitor DC IN... -
Page 15: Aio-W221-Asl-3L
AIO Series l User’s Manual Chapter 1: Product Introductions 1.3.3 AIO-W221-ASL-3L Power On/Off LAN port Press to power-on or power-off the system Used to connect the system to a local area network USB 3.2 Gen 2 port Used to connect USB 3.2 device DisplayPort Used to connect a DisplayPort monitor DC IN... -
Page 16: Mechanical Dimension
AIO Series l User’s Manual Chapter 1: Product Introductions 1.4 Mechanical Dimensions 1.4.1 AIO-W210-ASL-3L Unit: mm... -
Page 17: Aio-W215-Asl-3L
AIO Series l User’s Manual Chapter 1: Product Introductions 1.4.2 AIO-W215-ASL-3L Unit: mm... -
Page 18: Aio-W221-Asl-3L
AIO Series l User’s Manual Chapter 1: Product Introductions 1.4.3 AIO-W221-ASL-3L Unit: mm... -
Page 19: Chapter 2 Front Panel Controls
Chapter 2 Panel Controls... -
Page 20: Users Controls
AIO Series l User’s Manual Chapter 2: Panel Controls 2.1 Users Controls Power On/Off Power Button System power on or off. COM2 DB-9 SIGNAL DESCRIPTION DataCarrierDetected Receive Data Transmit Data DataTerminalReady Signal Ground DataSetReady Request To Send ClearToSend Ring Indicator COM1 RS232 RS485... -
Page 21: Chapter 3 System Setup
Chapter 3 System Setup... -
Page 22: Replacement Of Internal Modules
AIO Series l User’s Manual Chapter 3: System Setup Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing. 3.1 Replacement of Internal Modules In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 1. -
Page 23: Replacement Of Memory Module
AIO Series l User’s Manual Chapter 3: System Setup 3.2 Replacement of Memory Module 1. Pull out the locking tabs on both sides of the memory slot to release the memory module, allowing it to pop out. 2. After the memory module pops up, pull it out. Carefully remove the thermal pad underneath the memory module. -
Page 24: Replacement Of M.2 Storage Module
AIO Series l User’s Manual Chapter 3: System Setup 3.3 Replacement of M.2 Storage Module 1. Use a screwdriver to remove the single screw securing the M.2 card. After removing the M.2 card, carefully remove the thermal pad underneath. -
Page 25: Install Wireless Network Card And Antenna
AIO Series l User’s Manual Chapter 3: System Setup 3.4 Install wireless network card and antenna 1. Install the network card in the designated red frame and secure it with screws. 2. Ensure the internal antenna is securely connected to the network card, and the antenna interface is properly installed in the designated opening on the chassis cover. - Page 26 AIO Series l User’s Manual Chapter 3: System Setup 3. Connect the external antenna to the internal antenna, reattach the main unit to the screen following the original steps, and secure it with the four screws.
-
Page 27: Chapter 4 Bios Setup
Chapter 4 BIOS Setup... -
Page 28: Bios Setup
AIO Series l User’s Manual Chapter 4: BIOS Setup 4.1 BIOS Setup Versions Phas Date Ver. Note 2024/5/10 Initial release 1. Modify some typo words for all sheet 2024/5/15 2. Modify ASPM M2_M1 to M2_B1 3. add Data bit and Stop bit option 1. -
Page 29: Post
AIO Series l User’s Manual Chapter 4: BIOS Setup POST POST Hotkey Special Feature Hot Key Into BSU "DEL", "F2" boot oder menu PXE boot... -
Page 30: System Status
AIO Series l User’s Manual Chapter 4: BIOS Setup 4.2 System Status Fn Hotkey • Set the Date. Use Tab to switch beteeen Date elements Special Feature Location Note • Default Ranges: • Year:2000-2099 General Help Hot Key"F1" • Month: 1-12 •... -
Page 31: Advanced
AIO Series l User’s Manual Chapter 4: BIOS Setup 4.3 Advanced • Please be informed rule as below: • 1. DO NOT adjust any items from this entry on executing formal test • 2. Item should be hidden after MP candidate BIOS. CPU Configuration Displayed base on supported CPU There is mechanism to display... -
Page 32: Super Io Configuration
AIO Series l User’s Manual Chapter 4: BIOS Setup Super IO Configuration Device Settings Serial Port 1 Display STD IO port (3F8h,2F8h,3E8h,2E8h) Serial Port 2 Display STD IO port (3F8h,2F8h,3E8h,2E8h) Item for MVT only. Mode Select Hidden and default RS232 before MP candidate BIOS Watch Dog Timer Displayed when Watch Dog Timer enable... -
Page 33: H/W Monitor
AIO Series l User’s Manual Chapter 4: BIOS Setup H/W Monitor As Project type after MP candidate BIOS release Motherboard (MS-98XX, MS-CFXX): Hidden System (MS-C9XX): Display Smart Fan Configuration PCI/PCIE Device Configuration Nerwork Stack Configuration... -
Page 34: Gpio Group Configuration
AIO Series l User’s Manual Chapter 4: BIOS Setup GPIO Group Configuration 1. Status as setting 2. item must be hidden after MP candidate BIOS. PCIE ASPM settings Displayed as HW design when config as PCIE... -
Page 35: Boot
AIO Series l User’s Manual Chapter 4: BIOS Setup 4.4 Boot SUT will return BIOS Setup when no disabled all boot option... -
Page 36: Security
AIO Series l User’s Manual Chapter 4: BIOS Setup 4.5 Security Item only support for NVMe Device (TCG support) PCH-FW Configuration Displayed when ME state enabled... -
Page 37: Trust Computing
AIO Series l User’s Manual Chapter 4: BIOS Setup Trust Computing Information as your choseen TPM displayed(dTPM/fTPM) Serial Port Console Redirection Unlock when Console Redirection enabled Secure boot All secure boot function is by AMI Default, but keep customer request. No OEM Key roll in default.(reserve once customizing chance) Default Key need to roll in via clicking "Restore Factory keys"... -
Page 38: Firmware Update Configuration
AIO Series l User’s Manual Chapter 4: BIOS Setup Firmware Update Configuration PTT Configuration ME Debug Configuration Anti-Rollback SVN Configuration Displayed when Automatic HW-Enforced Anti-Rollback SVN Disabled As CRB define and Mechanism... -
Page 39: Console Redirection Settings (Com1)
AIO Series l User’s Manual Chapter 4: BIOS Setup Console Redirection Settings (COM1) -
Page 40: Chipset
AIO Series l User’s Manual Chapter 4: BIOS Setup 4.6 Chipset • DVMT Pre-allocated 2048 as platform supporting • LVDS Panel Type Gray out when no panel connected... -
Page 41: Power
AIO Series l User’s Manual Chapter 4: BIOS Setup 4.7 Power... -
Page 42: Save&Exit
AIO Series l User’s Manual Chapter 4: BIOS Setup 4.8 Save&Exit Build-in SHELL is necessary... -
Page 43: Dmi Data
AIO Series l User’s Manual Chapter 4: BIOS Setup 4.9 DMI Data Data Related SW BIOS Information (Type 0) BIOS Vendor American Megatrends International Inc. BIOS Version ECF14I8L.XXX Release Date 4/1/2024 ROM Size As plarform System Information (Type 1) Manufacturer Product Name MS-CF14 SW Utility... -
Page 44: Bios Design Rule
AIO Series l User’s Manual Chapter 4: BIOS Setup 4.10 BIOS Design Rule Admin/User PW OEM request CRB Default Admin User Admin User Into BSU/Before Entry POST POST Length <=20 characters Follow CRB default A–Z Case Sensitive or Not 0–9 Yes or No PW state Follow CRB default... -
Page 45: Buzzer
AIO Series l User’s Manual Chapter 4: BIOS Setup Buzzer Event Sounds POST detect 1 short beep No Con in/out Device detect No beeps Disabled ME No beeps Others As AMI Default ASPM Add-on onBoard Default Vaule Disabled Enabled Items Display Hidden DMI Data Preserve... -
Page 46: Appendix
AIO Series l User’s Manual Appendix – Panel Mount VESA Mount / Panel Mount: Panel mount bracket VESA mount bracket (75mm x 75mm/100mm x 100mm) Model Panel Mount Kit M4X6L x8 pcs AIO-W210-ASL-3L AIO-W215-ASL-3L AIO-W221-ASL-3L... -
Page 47: Mounting Guide
AIO Series l User’s Manual Appendix – Panel Mount Mounting Guide Flush Mount / Panel Mount: • Cut hole in the wall w/ dimensions according to the screen size you have purchased. Please refer to the next page for the list of cutout dimensions and max wall depths Max. - Page 48 AIO Series l User’s Manual Appendix – Panel Mount AIO Series Model Wall Cut-Out (W x H) Unit: mm Max Wall Thickness (mm) AIO-W210-ASL-3L 249 x 163 AIO-W215-ASL-3L 394 x 243 AIO-W221-ASL-3L 528 x 318...
- Page 49 Copyright © C&T Solution Inc. All Rights Reserved. www.candtsolution.com...
