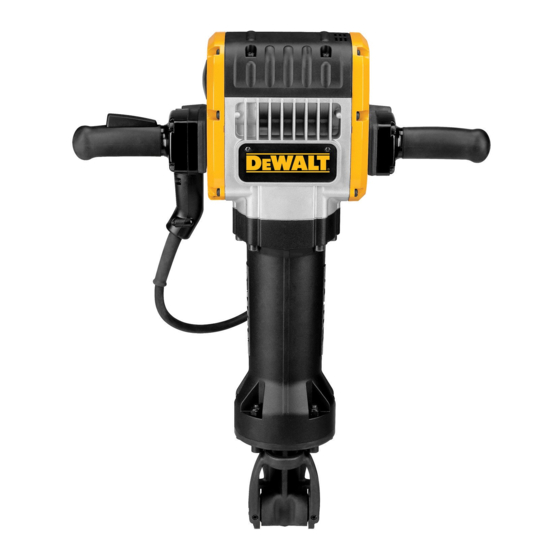

Heavy-duty pavement breaker
Hide thumbs Also See for D25980:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

See also: Instruction Manual , Manual
Pour toute question ou tout commentaire, nous contacter.
INSTRUCTION MANUAL
GUIDE D'UTILISATION
MANUAL DE INSTRUCCIONES
If you have questions or comments, contact us.
Si tiene dudas o comentarios, contáctenos.
1-800-4-D
WALT • www.dewalt.com
E
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO
Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE
INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

Advertisement

Table of Contents
loading

Related Manuals for DeWalt D25980

Summary of Contents for DeWalt D25980

  • Page 1 If you have questions or comments, contact us. Pour toute question ou tout commentaire, nous contacter. Si tiene dudas o comentarios, contáctenos. 1-800-4-D WALT • www.dewalt.com INSTRUCTION MANUAL INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE GUIDE D’UTILISATION...

  • Page 2: Electrical Safety

    3) PERSONAL SAFETY IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY D WALT TOOL, CALL US TOLL FREE AT: 1-800-4-D WALT (1-800-433-9258) a) Stay alert, watch what you are doing and use common sense when operating a power tool.
  • Page 3 Be certain that the material being worked does not conceal electric or gas service and that WARNING: ALWAYS wear proper personal hearing protection that conforms to ANSI their locations have been verified with the utility companies. S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product •...

  • Page 4: Operation

    Attach left side handle (C) with four hex head screws (H, supplied). Tighten with hex wrench supplied. FEATURES (FIG. 1) The D25980 Pavement Breaker has been designed for professional heavy-duty demolition, applications in concrete, brick, stone and other masonry materials. ON/OFF Switch FIG.
  • Page 5 Weight ......31 kg or tool abuse. For further detail of warranty coverage and warranty repair information, visit www. dewalt.com or call 1-800-4-D WALT (1-800-433-9258). This warranty does not apply to acces- sories or damage caused where repairs have been made or attempted by others. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

  • Page 6: Sécurité Personnelle

    SI VOUS AVEZ DES QUESTIONS OU VOULEZ NOUS FAIRE PART DE VOS COMMENTAIRES Calibre minimum pour rallonge CONCERNANT CET OUTIL OU TOUT AUTRE OUTIL D WALT, COMPOSEZ SANS FRAIS Longueur totale du cordon Volts LE : 1 800 433-9258. en mètres (en pieds) Intensité...
  • Page 7 tées d’aucune condition susceptible de nuire au bon fonctionnement de l’outil. En • Tenir le cordon d’alimentation loin de la mèche. Ne pas enrouler le cordon autour de cas de dommage, faire réparer l’outil électrique avant toute nouvelle utilisation. Bien toute partie du corps.
  • Page 8 Fixer la poignée gauche (C) à l’aide de quatre vis à tête hexagonale (H, fournies). Les serrer avec la clé hexagonale fournie. CARACTÉRISTIQUES (FIG. 1) Le brise-béton D25980 a été conçu pour la démolition industrielle et pour être utilisé sur le béton, FIG. 3A FIG. 3B la brique, la pierre et d’autres matériaux de maçonnerie.

  • Page 9: Entretien

    POUR INSÉRER DES TRÉPANS MÉTALLIQUES (TRÉPAN À ENCOCHE SEULEMENT) par la présente garantie, visiter le site www.dewalt.com ou composer le 1 800 433-9258 (1 800 WALT). Cette garantie ne s’applique pas aux accessoires et ne vise pas les dommages 1. Retirer le dispositif de retenue du trépan (D) comme le montre la figure 3a.
  • Page 10 WALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286 (OCT06) Form No. 491663-01 D25980 Copyright © 2002, 2005, 2006 D WALT The following are trademarks for one or more D WALT power tools: the yellow and black color scheme; the “D” shaped air intake grill; the array of pyramids on the handgrip; the kit box...
  • Page 12 Parts List for D25980 Type 1 Item Number Part Number Description Qty Required 494568-00 HOLDER ASSY 478063-00 DAMPER 494547-00 REPAIR KIT 494570-00 RETAINER 478116-00 O-RING 949886-34 BOLT 493929-00 490534-00 FELT SEAL 494566-00 FRONT HOUSING 494567-00 BEAT PIECE 494562-00 GUIDE ASSY...
  • Page 13 Parts List for D25980 Type 1 Item Number Part Number Description Qty Required 478082-00 GUIDE 494563-00 HOUSING 494563-00 HOUSING 478120-00 O-RING 949886-35 SCREW 494572-00 CRANKSHAFT 577745-04 BEARING 577745-03 BEARING 494576-00 GEAR 494573-00 GEAR ASSY 494549-00 BEARING SET 616726-00 RETAINING RING...
  • Page 14 Parts List for D25980 Type 1 Item Number Part Number Description Qty Required 491639-00 FAN BAFFLE 491640-00 PICK-UP 324119-02 SCREW 324007-11 SCREW 491648-00 SEAL 330065-06 SCREW 324006-14 SCREW 496097-00 CIRCLIP 491772-00 BRUSH COVER 491651-00 SOCKET 860075-01 WASHER 478096-00 GEARCASE COVER...
  • Page 15 Parts List for D25980 Type 1 Item Number Part Number Description Qty Required 478104-00 RUBBER STOP 495104-00 CLAMP WASHER 496942-00 SUPPORT KIT 478106-00 RIGHT HANDLE 949886-36 SCREW 930574-00 HEX WRENCH 478107-00 TRIGGER 377374 478108-01 SWITCH HOUSING 478109-00 SWITCH COVER 330065-08...
  • Page 16 Parts List for D25980 Type 1 Item Number Part Number Description Qty Required 578970-04 GREASE 870889-02 GREASE 491659-00 RATING PLATE 487395-01 LABEL 559667-99 SERVICE TOOL 559668-99 SERVICE TOOL 559669-99 SERVICE TOOL 1005620-01 SERVICE KIT 496853-01 SERVICE KIT DW5962 COLD 20 1-1/8...
