Satelfite
Receiver
and Cable/Antenna
[]
SAT signals
are selected by tile SAT Box connected
to tile VIDEO
INPUT.
TV signals are selected
from the signal connected
to the
CABLE
input.
Disconnect all power sources before making any connections.
t
Connect
tile satellite antenna
cable to the satellite receiver's
SATELLITE
IN jack.
2
Use A/V and S VIDEO cables to connect the satellite receiver's
AUDIO
and S VIDEO
OUT jacks to the TV's AUDIO and S VIDEO
IN jacks.
3
Use a coaxial cable to connect
your cable to the TV's CABLE
jack, or
your antenna to the TV's VHF/UHF
jacks.
_ If your satellite receiver is not equipped with S VIDEO, use a VIDEO
cable (yellow) instead of the S VIDEO cable.

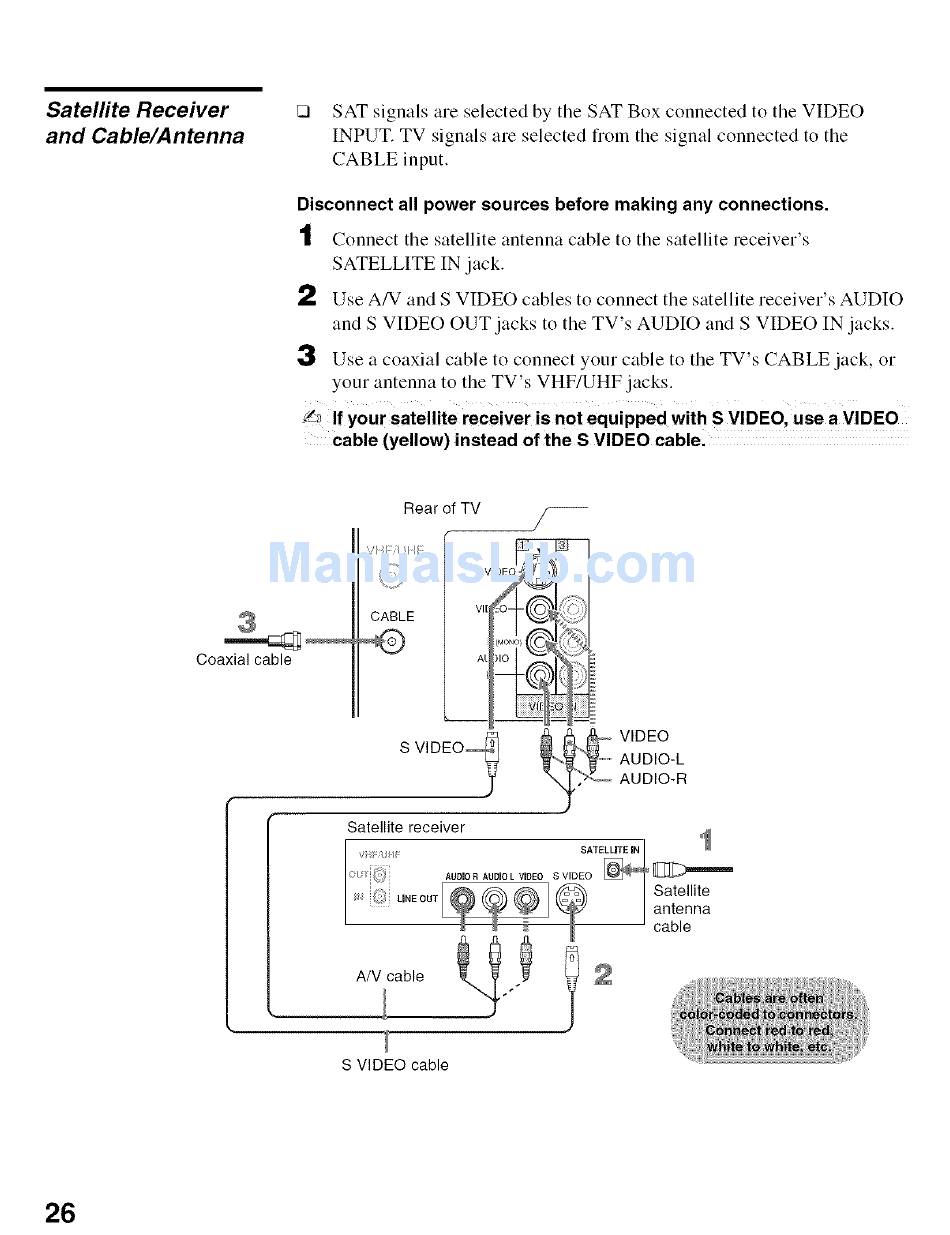

Coaxial cable
Rear of TV
f--
CABLE
S VIDEO_
Satellite receiver
_i._
VIDEO
AUDIO-L
AUDIO-R
S VIDEO cable
26
