DentalEZ Core User Manual

Hide thumbs Also See for Core:
Table of Contents

Advertisement

Quick Links

See also: User Manual
CORE
Chair
TM
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Core and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DentalEZ Core

Summary of Contents for DentalEZ Core

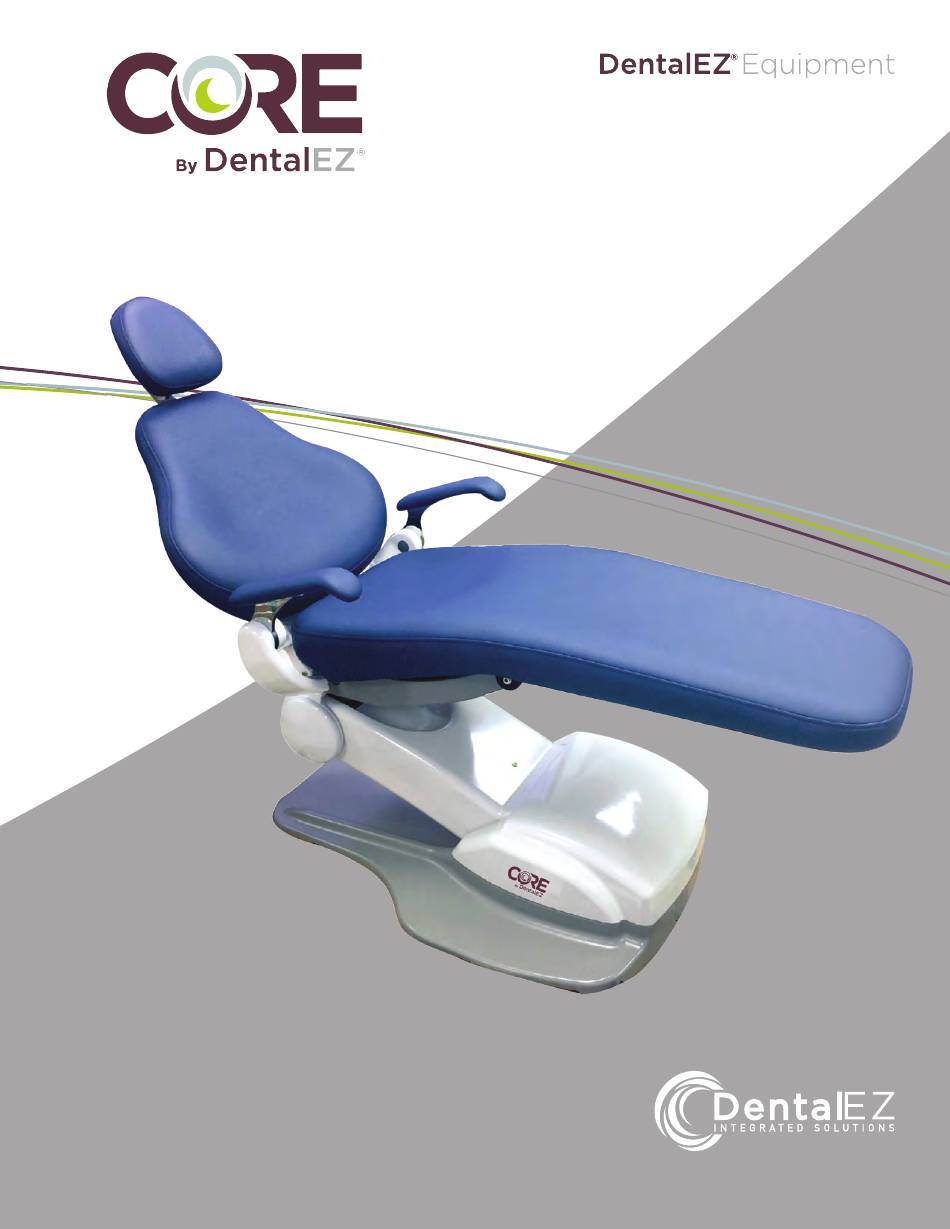

  • Page 1 CORE Chair User Manual...

  • Page 2: Table Of Contents

    Table of Contents DentalEZ Equipment ® Section I Introduction Section VII Parts Lists/Diagrams Product Overview ..........1 Hydraulic ............33 Chair Features ............2 Electrical ............33 Dimensions ............3 Controls ............33 Range of Motion ..........4 Exterior Components ........33 Specifi cations ............
  • Page 3 CORE Chair www.DentalEZ.com 866-DTE-INFO PN: 2717-268B...

  • Page 4: Section I Introduction

    DentalEZ® CORE™ Chair. features, operation procedures, and care guidelines with the doctor’s staff . The CORE Chair is intended to be used by trained professional dental care personnel only. The Leave this manual in the doctor’s off ice.

  • Page 5: Chair Features

    In order to achieve the most eff icient use in the operatory and understand what the CORE Chair off ers, here is a compilation of some features and benefi ts. Standard Features •...

  • Page 6: Dimensions

    57" 48¾" 29½" 26⅜" 17" 74" 8⅝" 20" 19¾" 26⅜" 9⅞" 25⅝" 20⅜" 27⅞" 18⅛" 19⅝" 17⅞" 16⅛" 15" 39¾" 11" Figure 2. Side upright, top view and side reclining dimensions for the CORE dental chair www.DentalEZ.com 866-DTE-INFO PN: 2717-268B...

  • Page 7: Range Of Motion

    Section I Introduction CORE Chair Range of Motion 15° 15° Figure 3. Range of motion for the CORE dental chair www.DentalEZ.com 866-DTE-INFO PN: 2717-268B...

  • Page 8: Specifi Cations

    Section I Introduction DentalEZ Equipment ® Specifi cations Power Supply Minimum Installation Space • 10' × 10' (3 m × 3 m) • 115V AC, 50/60 Hz, as applicable • 230V AC, 50/60 Hz, as applicable Base Plate Footprint Fuse Type M •...

  • Page 9: Classifi Cations

    Section I Introduction CORE Chair Classifi cations Explanation of Symbols & Signs Medical-General Medical Equipment ETL CLASSIFIED = Caution Certifi ed as to electrical shock, fi re and mechanical hazards only in = Warning accordance with: 4010684 UL 60601-1 = Biohazard CAN/CSA C22.2 NO.

  • Page 10: Safety Precautions

    • Rating of main circuit breakers should be 20 Amps maximum. • Do not modify the CORE Chair without permission from DentalEZ. NOTICE • The use of ACCESSORY equipment not...
  • Page 11 CORE Chair www.DentalEZ.com 866-DTE-INFO PN: 2717-268B...

  • Page 12: Section Ii Preinstallation Packaging

    Packaging Tools Required View Online Instructions • Wire Cutters Scan QR Code for Video Instructions: CORE Chair - Unpacking and Setup • Adjustable Wrench • 7/32" Hex Key • Phillips-head Screwdriver Unpacking Chair Carton 1. Use 7/32" hex key to remove the four bolts WARNING holding the chair to the pallet.
  • Page 13 Two ties Remove and set aside the following items from at either side secure the chair to the pallet. The the CORE Chair upholstery assembly packaging other ties secure the chair to itself (Figure 5). (Figure 7): •...

  • Page 14: Chair Placement

    • DO NOT position the chair any place where it would interfere with unplugging the chair power cord. 1. Taking into consideration the CORE Chair’s dimensions, range of motion and specifi cations (see Section I Introduction), position the chair in its permanent location on a smooth, hard and level fl oor.
  • Page 15 CORE Chair www.DentalEZ.com 866-DTE-INFO PN: 2717-268B...

  • Page 16: Section Iii Installation

    Section III Installation DentalEZ Equipment ® Chair Back Delivery Units Installation of the console mounted delivery Tools Required unit or the Magellan style delivery unit is • 3/32" Hex Key recommended before upholstery installation. Follow the manufacturer’s instructions • Medium-strength Threadlocker supplied with the delivery unit.

  • Page 17: Seat Frame

    Section III Installation CORE Chair Seat Frame Foot Control Tools Required 1. Remove cotter and clevis pins. Retain pins for installation (Figure 10). • 1/8" Hex Key Seat Frame Clevis Pins with Inserted Cotter Pins WARNING To prevent any chance of electrical shock, always disconnect power when indicated.

  • Page 18: Touchpad Control

    Section III Installation DentalEZ Equipment ® Foot Control (Continued) Touchpad Control Tools Required 4. Connect the wire plug of the foot control into the control board (Figure 14). • 13 mm Wrench Wire Plug • 1/8" Hex Key WARNING To prevent any chance of electrical shock, always disconnect power when indicated.

  • Page 19: Upholstery

    Section III Installation CORE Chair Touchpad Control (Continued) Upholstery CAUTION • If the chair is part of an operatory, wait until entire installation is complete before installing upholstery. Failure to do so may result in damaging the upholstery. Tools Required...
  • Page 20 Section III Installation DentalEZ Equipment ® Upholstery (Continued) Headrest Armrests 1. Slide the blade of the headrest into the 1. Place each upholstered armrest onto the opening of the chair back casting. chrome-plated arm supports. 2. Tighten the tension adjustment screws as 2.

  • Page 21: Installation/Operation Checklist

    Section III Installation CORE Chair Installation/Operation Checklist NOTICE Before performing checklist task, make sure the area is at room temperature. Failure to comply can result in a faulty operation. With someone sitting on the chair, run each function a few times to ensure proper function.

  • Page 22: Section Iv Operation

    Equipment ® Base Lowering Safety Switch Chair Rotation The CORE Chair is equipped with a base lowering The CORE Chair is capable of swiveling safety switch. This feature ensures nothing gets approximately 15° to either side of its center position.

  • Page 23: Armrests

    CORE Chair Armrests Double Articulating Headrest The CORE Chair’s armrests are designed to be To position the headrest height: lowered, allowing easy patient entry and exit from Firmly push down or pull up the blade from the either side of the chair.

  • Page 24: Manual Chair Positioning

    To prevent possible injury caused by accidental operation, do not leave young children unattended. Manual positioning of the CORE Chair is accomplished by using the touchpad control located on the side of the chair, the foot control, or by using two separate controls (Figure 26).

  • Page 25: Automatic Chair Positioning

    (Figure 28). NOTE: Pressing any button on a chair control module while the CORE Chair is moving to a 3. Press an auto button (1, 2, 3 or 4) to assign programmed position will immediately stop it to this position.

  • Page 26: Programming Chair Travel Limits

    ON position (Figure 31). NOTE: When DIP switches 1 and 2 are in the ON position, the chair will not operate unless the M (memory) button is held down. Figure 32. CORE Chair program M memory button www.DentalEZ.com 866-DTE-INFO PN: 2717-268B...
  • Page 27 (6) beeps represent failure to set the soft limit. Casting Bottom Casting Bottom Chair Base Chair Base Figure 34. Setting CORE Chair base down Figure 33. Setting CORE Chair base up www.DentalEZ.com 866-DTE-INFO PN: 2717-268B...
  • Page 28 Back Block Back Cylinder Back Block 8.5" Space Between Figure 36. Setting CORE Chair back down 3" Space Between Programming the chair is now complete. Place the 1 and 2 DIP switches back into the original Figure 35. Setting CORE Chair back up position.
  • Page 29 CORE Chair www.DentalEZ.com 866-DTE-INFO PN: 2717-268B...

  • Page 30: Section V Care

    • Using a soft cloth dampened in clean water, wipe away any residue and dry. Before attempting to clean or disinfect the CORE Chair, please read the following instructions 2. To remove heavy soil: carefully. • Dampen a soft, white cloth with lighter Since any cleaning product may be harmful or fl uid (naphtha) and rub the area gently.
  • Page 31 Section V Care CORE Chair Cleaning (Continued) Plastic and Coated Metal Surfaces • Allow the bleach solution to puddle on the aff ected area, or apply a bleach solution- soaked cloth to the area for approximately CAUTION 30 minutes. • NEVER use abrasives or petroleum-based •...

  • Page 32: Disinfecting

    Metrex Research material from the following manufacturers: Cavicide is recommended for disinfecting all other surfaces of the CORE Chair. The use of MorCare Collection from Morbern any disinfectant other than Cavicide may cause MorGuard from Morbern was developed to...
  • Page 33 CORE Chair www.DentalEZ.com 866-DTE-INFO PN: 2717-268B...

  • Page 34: Section Vi User Service Information

    ® Service Instruction Disposal of Equipment Disposal and Decommissioning of If the area of concern is not addressed in this manual, contact your local DentalEZ full-service DentalEZ Products dealership at 866-DTE-INFO. See Limited NOTE: All local regulatory requirements for Warranty.

  • Page 35: Www.dentalez.com

    CORE Chair www.DentalEZ.com 866-DTE-INFO PN: 2717-268B...

  • Page 36: Section Vii Parts Lists/Diagrams

    Section VII Parts Lists/Diagrams DentalEZ Equipment ® Hydraulic Exterior Components Part/Kit Name Part/Kit No. Part/Kit Name Part/Kit No. Solenoid Valve (115V AC) 3802-287 Harness LED Indicator 3802-256 Solenoid Valve (220V AC) 3802-288 Back Pin 3802-350 Pump Assembly (115V AC) 3802-290...
  • Page 37 Section VII Parts Lists/Diagrams CORE Chair DentalEZ Parts Online To order parts online, visit www.dentalezparts.com or scan QR code with smartphone. www.DentalEZ.com 866-DTE-INFO PN: 2717-268B...

  • Page 38: Emc Information

    Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The CORE Chair is intended for use in the electromagnetic environment specifi ed below. The customer or the user of the CORE Chair should assure that it is used in such an environment.
  • Page 39 Chair Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The CORE Chair is intended for use in the electromagnetic environment specifi ed below. The customer or the user of the CORE should assure that it is used in such an environment.

  • Page 40: Limited Warranty

    CORE Chair DentalEZ and its employees are proud of the products we provide in the dental community. We stand behind these products with a warranty against defects in material and workmanship as provided below. In the event you experience diff iculty with the application or operation of any of our products, please contact our Technical Service Department at our expense at 866-DTE-INFO (866-383-4636).
  • Page 41 2500 Highway 31 South Bay Minette, Alabama 36507 866-DTE-INFO www.dentalez.com © DentalEZ® Alabama, Inc. Printed in USA PN: 2717-268B April, 2019...
