- Page 1 SIMPLICITY STOOLS USER MANUAL OPERATOR & ASSISTANT...
-
Page 2: Table Of Contents
SECTION IV - CARE & MAINTENANCE Cleaning ............................. 9 Disinfecting ............................11 SECTION V - USER SERVICE INFORMATION Service Instruction ..........................12 Disposal of Equipment ........................12 SECTION VI - PARTS LIST Replacement Parts ........................... 13 DENTALEZ Parts Online ........................13 LIMITED WARRANTY .......................... 15... - Page 3 SIMPLICITY STOOLS NOTES: 866-DTE-INFO dentalez.com PN: 2717-264B...
-
Page 4: Section I - Introduction
(FIGURE After the stool is assembled, review the features and care guidelines with the doctor’s staff. LEAVE THIS MANUAL IN THE DOCTOR’S OFFICE. For any questions about an order, please contact a DENTALEZ Equipment customer service NOTICE representative at 866-DTE-INFO. -
Page 5: Product Features

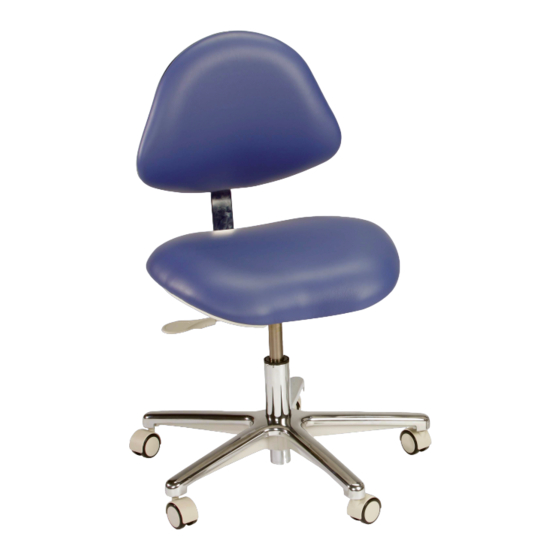

STOOLS PRODUCT FEATURES With wide, stable bases, adjustable back supports, and adjustable heights, DENTALEZ Simplicity stools allow easy mobility around the patient’s head for improved access to the oral cavity. Their ergonomic designs promote proper positioning for the most demanding procedures. -
Page 6: Dimensions
SECTION I - INTRODUCTION DIMENSIONS OPERATOR STOOL ASSISTANT STOOL Ø23.5" Ø23.5" 10" - 12.5" FRONT FRONT 22.5" - 31.5" 15.5" - 20.5" FIGURE 2. DENTAL STOOL DIMENSIONS... -
Page 7: Specifications
= Manufacturer = Fragile; Handle with Care = Box Must Remain Upright = Stack Limit by Number = Use No Hooks = Keep Dry = Box Contents Safe Humidity Range = Do Not Open with Sharp Object 866-DTE-INFO dentalez.com PN: 2717-264B... -
Page 8: Section Ii - Preinstallation
SECTION II - PREINSTALLATION PACKAGING To avoid damage to the carton contents, do not use a knife or sharp object to open the CAUTION packaging. UNPACK STOOL CARTON Remove the cylinder/gooseneck package and set it aside. 2. Remove the base from the carton and place it upright on the floor. 3. -
Page 9: Section Iii - Installation
3. If a body support is included, place the gooseneck over the top end of the cylinder until it comes in contact with the collar (FIGURE SPLIT PLUG GOOSENECK CYLINDER COLLAR FIGURE 4. PLACE GOOSENECK OVER TOP OF CYLINDER 866-DTE-INFO dentalez.com PN: 2717-264B... - Page 10 SECTION III - INSTALLATION ASSEMBLY INSTRUCTIONS (CONTINUED) INSTALL BACKREST (OPERATOR STOOL) Remove the hand knob and washer from the bottom of the seat plate (FIGURE BACKREST BAR SLOT SEAT PLATE HAND KNOB FOR UPRIGHT FIGURE 6. REMOVE HAND KNOB AND WASHER FROM BOTTOM OF SEAT PLATE 2.
- Page 11 3. Adjust the body support to the desired height and tighten the knob just enough to hold the lock collar in tighten using the knob. place. 866-DTE-INFO dentalez.com PN: 2717-264B...
-
Page 12: Section Iv - Care & Maintenance
SECTION IV - CARE & MAINTENANCE CLEANING OVERVIEW Improper cleaning and disinfection techniques could lead to cross-contamination; therefore, prior WARNING to each use, properly clean and disinfect the stool’s exterior in accordance with normal dental procedures. Pay strict attention to all of the cleaning product manufacturer’s warnings and cautions. CAUTION ... - Page 13 Using a soft cloth or sponge, apply this soapy solution to the plastic and coated metal surfaces. NOTE: To remove heavier dirt, apply Formula 409 ® ® or Fantastik Spray Cleaner. Wipe area dry immediately using a soft cloth. 866-DTE-INFO dentalez.com PN: 2717-264B...
-
Page 14: Disinfecting
SECTION IV - CARE & MAINTENANCE CLEANING (CONTINUED) 2. To remove stubborn stains: Apply a mild abrasive such as toothpaste or liquid tooth polish using a soft, white cloth. Using a chamois or moist sponge, remove all traces of the mild abrasive. ... -
Page 15: Section V - User Service Information
STOOLS INFORMATION SERVICE INSTRUCTION DISPOSAL OF EQUIPMENT If the area of concern is not addressed in this manual, DISPOSAL AND DECOMMISSIONING OF contact DENTALEZ customer service at 866-DTE-INFO. DENTALEZ PRODUCTS (See LIMITED WARRANTY.) NOTE: All local regulatory requirements for disposal Please have the following product information available. -
Page 16: Section Vi - Parts List
2586-128 9 10 17 18 23 RH Fixed Post 2586-129 22 23 Complete Assistant's Body Support, LH 3802-415 Complete Assistant's Body Support, RH 3802-416 DENTALEZ PARTS ONLINE To view parts online, visit DENTALEZPARTS.COM scan QR code with a smart phone. - Page 17 SIMPLICITY STOOLS NOTES: 866-DTE-INFO dentalez.com PN: 2717-264B...
-
Page 18: Limited Warranty
We are not responsible for shipping damages. We will, however, help you file a claim with the freight carrier. Written repair estimates are available. DENTALEZ warrants all equipment and parts to be free of defects in material and workmanship, under normal usage under the following terms:... - Page 19 DENTALEZ Alabama, Inc. 2500 Highway 31 South Bay Minette, AL 36507 T: 866-DTE-INFO DENTALEZ.COM © 2021 DENTALEZ, Inc. DENTALEZ is a registered trademark. PN: 2717-264B July, 2021 Printed in USA...
