Additional Information

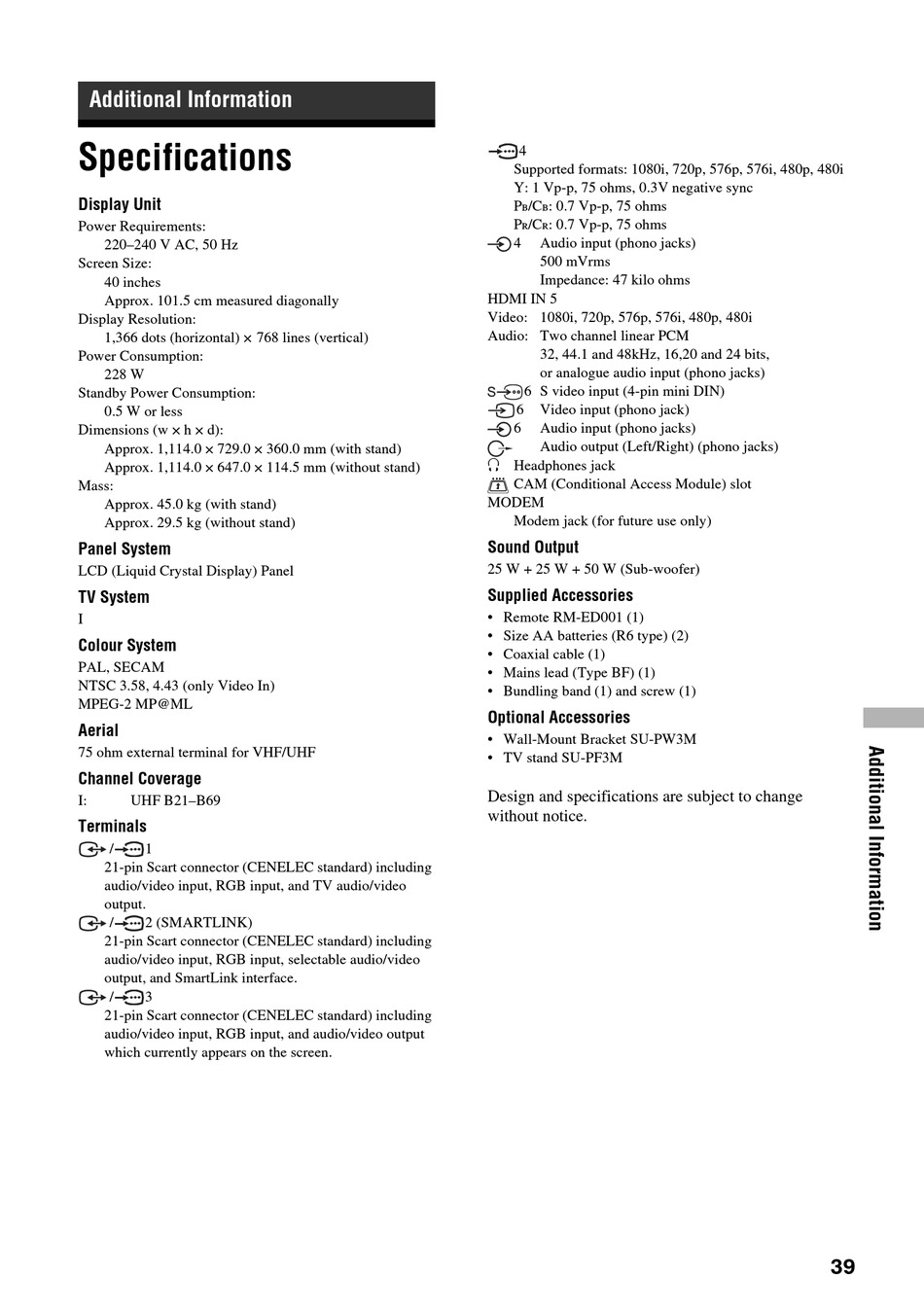

Specifications

Display Unit
Power Requirements:
220–240 V AC, 50 Hz
Screen Size:
40 inches
Approx. 101.5 cm measured diagonally
Display Resolution:
1,366 dots (horizontal) × 768 lines (vertical)
Power Consumption:
228 W
Standby Power Consumption:
0.5 W or less
Dimensions (w × h × d):
Approx. 1,114.0 × 729.0 × 360.0 mm (with stand)
Approx. 1,114.0 × 647.0 × 114.5 mm (without stand)
Mass:
Approx. 45.0 kg (with stand)
Approx. 29.5 kg (without stand)
Panel System
LCD (Liquid Crystal Display) Panel
TV System
I
Colour System
PAL, SECAM
NTSC 3.58, 4.43 (only Video In)
MPEG-2 MP@ML
Aerial
75 ohm external terminal for VHF/UHF
Channel Coverage
I:
UHF B21–B69
Terminals
/
1
21-pin Scart connector (CENELEC standard) including
audio/video input, RGB input, and TV audio/video
output.
/
2 (SMARTLINK)
21-pin Scart connector (CENELEC standard) including
audio/video input, RGB input, selectable audio/video
output, and SmartLink interface.
/
3
21-pin Scart connector (CENELEC standard) including
audio/video input, RGB input, and audio/video output
which currently appears on the screen.
4
Supported formats: 1080i, 720p, 576p, 576i, 480p, 480i
Y: 1 Vp-p, 75 ohms, 0.3V negative sync
P
/C
: 0.7 Vp-p, 75 ohms
B
B
P
/C
: 0.7 Vp-p, 75 ohms
R
R
4
Audio input (phono jacks)
500 mVrms
Impedance: 47 kilo ohms
HDMI IN 5
Video: 1080i, 720p, 576p, 576i, 480p, 480i
Audio: Two channel linear PCM
32, 44.1 and 48kHz, 16,20 and 24 bits,
or analogue audio input (phono jacks)
6 S video input (4-pin mini DIN)
6
Video input (phono jack)
6
Audio input (phono jacks)
Audio output (Left/Right) (phono jacks)
i Headphones jack
CAM (Conditional Access Module) slot
MODEM
Modem jack (for future use only)
Sound Output
25 W + 25 W + 50 W (Sub-woofer)
Supplied Accessories
• Remote RM-ED001 (1)
• Size AA batteries (R6 type) (2)
• Coaxial cable (1)
• Mains lead (Type BF) (1)
• Bundling band (1) and screw (1)
Optional Accessories
• Wall-Mount Bracket SU-PW3M
• TV stand SU-PF3M
Design and specifications are subject to change
without notice.
39
