System Sensor SSM24-6 Installation And Maintenance Instruction page 3

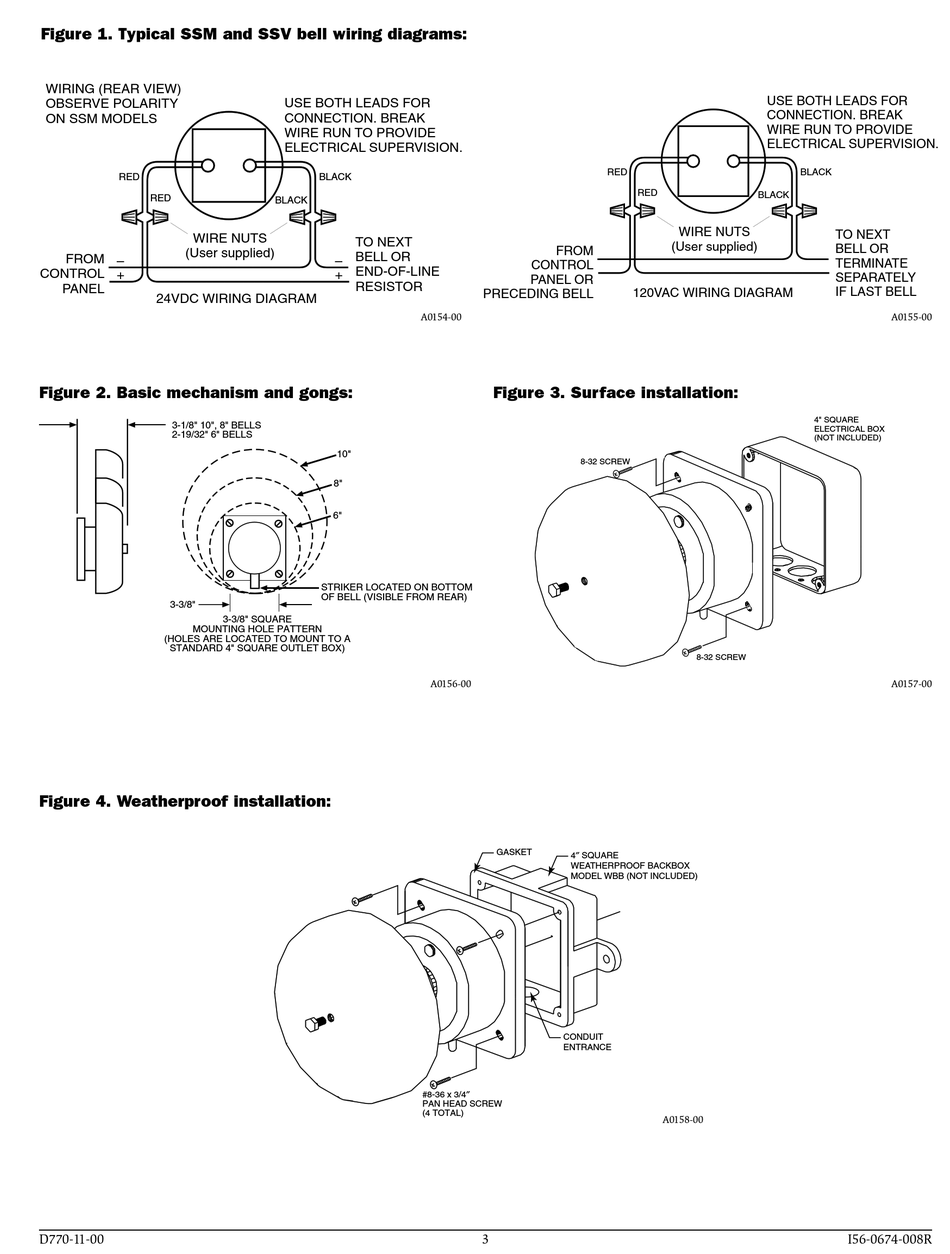

Figure 1. Typical SSM and SSV bell wiring diagrams:
WIRING (REAR VIEW)
OBSERVE POLARITY
ON SSM MODELS
RED
RED
WIRE NUTS
(User supplied)
FROM
–
CONTROL
+
PANEL
24VDC WIRING DIAGRAM
Figure 2. Basic mechanism and gongs:
��������������������
�����������������
������
���������������������
��������������������������������
������������������������������
Figure 4. Weatherproof installation:
D770-11-00
USE BOTH LEADS FOR
CONNECTION. BREAK
WIRE RUN TO PROVIDE
ELECTRICAL SUPERVISION.
BLACK
BLACK
TO NEXT
BELL OR
–
END-OF-LINE
+
RESISTOR
���
��
��
�������������������������
���������������������������
�������������
FROM
CONTROL
PANEL OR
PRECEDING BELL
A0154-00
Figure 3. Surface installation:
8-32 SCREW
A0156-00
GASKET
4" SQUARE
WEATHERPROOF BACKBOX
MODEL WBB (NOT INCLUDED)
CONDUIT
ENTRANCE
#8-36 x 3/4"
PAN HEAD SCREW
(4 TOTAL)
3
USE BOTH LEADS FOR
CONNECTION. BREAK
WIRE RUN TO PROVIDE
ELECTRICAL SUPERVISION.
RED
RED
BLACK
WIRE NUTS
(User supplied)
120VAC WIRING DIAGRAM
8-32 SCREW
A0158-00
BLACK
TO NEXT
BELL OR
TERMINATE
SEPARATELY
IF LAST BELL
A0155-00
4" SQUARE
ELECTRICAL BOX
(NOT INCLUDED)
A0157-00
