- Page 1 Training Manual SelfCookingCenter® whitefficiency® (SCC_WE) V02 en, SCC_WE...
-
Page 2: Table Of Contents
This shall ONLY be done by trained technicians! Always check appliance for possible gas leakages! © 2011 Rational Technical Services. All rights reserved. Please note that any technical information concerning Rational products must NOT be forwarded to any third party. List of content... - Page 3 List of content Control (2) Fan motor SCC_WE Line Bus connection SolidStateRelay (SSR) internal design / Test SSR 100% - 50% power at 3NAC/400V SSR 100% - 50% power at 3AC 200-240V Control of cooling fan Control of drain valve CareControl Function during CleanJet+Care Service Package...
-
Page 4: Basic Principle Scc_We
Basic principle SCC_WE Venting pipe Thermocou- Safety thermostat cabinet ple cabinet B3.1 - 3.6 Check valve Core probe Differential pressure sensor Cabinet Level electrode Thermocouple Clima valve steam generator Fan motor Safety thermostat steam generator Steam element Thermocou- ple humidity Air baffle Steam generator Self Clean (SC) pump... -
Page 5: Parts Location
Parts location Solenoid humidity (Y5) Differential pres- sure sensor (P1) safety thermostat steam generator (F3) level electrode S2 safety thermostat Thermocouple steam cabinet (F4) generator (B5) CDS (S11) triple solenoid Y1 filling - Green Y3 moistening - Brown Y4 Care valve - Orange - 5 - V02 en, SCC_WE... - Page 6 Parts location Quenching nozzle and Thermocouple B2 Main contactor (K1) Noise filter (Z1) Drain valve (M7 and S12) SSR (V1-) CleanJet Pump (M6) Solenoid Y2 quenching Loud speaker T2 SC Pump (M4) V02 en, SCC_WE - 6 -...
- Page 7 Parts location CPU (A2) Interface PCB (A1) TFT Display Puls generator (S6) Door contact switch (S3) Hand shower roll Care Pump guide (M12) - 7 - V02 en, SCC_WE...
- Page 8 Parts location Safety thermostat cabinet (F4) CleanJet nozzle Cabinet sensor B1 Steam inlet Fan wheel Hot air hea- ting element Union nut Moistening nozzle V02 en, SCC_WE - 8 -...
-
Page 9: Changes Of The Unit
Changes of the unit Differences from SCC_WE (Index H) compared with SCC Index G 1. Unit self test after installation; all components are tested for correct function and determination of boiling point; 2. Steam mode preset to boiling point (no hot air supply), 30-130°C possible (86 - 266°F) 3. -
Page 10: Operator Panel Scc_We

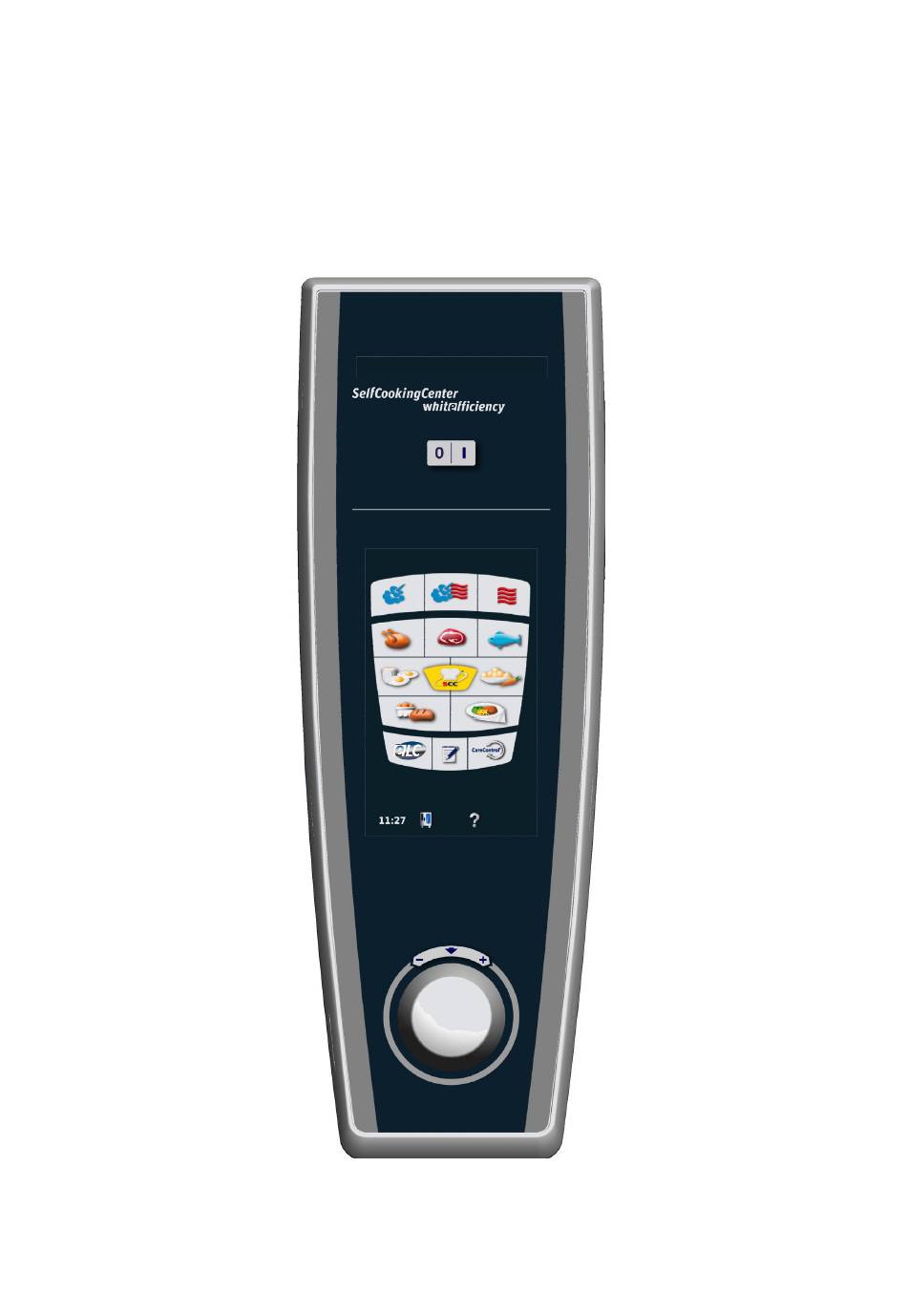

Operator panel SCC_WE ON/OFF switch Manual Modes SCC-Processes ELC-Key: Activation Efficient Level Control Program Key: Activation Programming mode Function Key: Activation personal settings & Service Help Key Care Key Central Dial V02 en, SCC_WE - 10 -... -
Page 11: Operator Panel Scc_We: Manual Modes
Operator panel SCC_WE: Manual Modes Home - back to general display Efficient Level Control Humidity setting Temperature setting Time setting Core probe setting Pre heating Time: continuous Moistening Fan wheel speed setting Cool Down Steaming at boiling point (no hot air) - 11 - V02 en, SCC_WE... -
Page 12: Survey Pictogram
Survey Pictogram Poultry Function key Large roast Settings Fish HACCP download Egg dishes / Desserts Communication (pictures, USB, IP, Sound) Side dishes Service Bakery products Display configurator Finishing Record Modus (calibrated products) Home - back to general display Back to previous level Efficient Level Control Store V02 en, SCC_WE... - Page 13 Survey Pictogram Start Service Level Confirm Date and time Operator and Application Manual Start time Safety advice Time format 24h CleanJet +Care Time format am / pm Care Control Temperature setting °C - °F Half energy Setting ring tones Show Mode (when in red) Display brightness Sequence of levels Number of levels...
- Page 14 Function Key - Settings - Service - Communication Function Key Settings Time, Language, °C/°F, Acoustics, Plate weight etc. HACCP Download HACCP Data Communication Pictures, Ring tones, USB Stick, IP Address Service Unit Data, Service package, Hotline numbers, Descaling, Show Mode Display Configurator Record modus Communication...
- Page 15 - 15 - V02 en, SCC_WE...
-
Page 16: Water Level Control Steam Generator Scc_We
Water level control steam generator SCC_WE Center level electrode S2 => Ground: 2 - 6V AC: water level too low steam heating must switch OFF solenoid valve filling Y1 ON Center level electrode S2 => Ground: 0V AC: water level reached steam heating can switch ON solenoid valve filling Y1 switched OFF Level electrode can be measured at X12: 1-4... -
Page 17: Sc (Self Clean) Automatic
SC (Self Clean) Automatic During the production of steam, the concentration of minerals inside the steam generator will increase over time. These minerals settle on the heating elements and heat exchanger as well as the interior steam generator walls. In order to reduce this effect the steam generator will be pumped off and flushed regularly depending on the duration of steam production. -
Page 18: Scc_We Electric (Index H): Basic Principle
SCC_WE Electric (Index H): Basic principle B3.1 - 3.6 Care Thermocouple interior cabinet Thermocouple quenching B3.1-B3.6 Thermocouples core temperature Thermocouple humidity Thermocouple steam generator (preheat, 180°C (356°F) max) Safety thermostat steam generator 160°C (320°F) Safety thermostat interior cabinet 360°C (680°F) Fan motor (Floor unit: top) SC-pump CleanJet pump... -
Page 19: Manual Modes Scc_We / Boiling Point Recognition
Manual modes SCC_WE / Boiling point recognition Steam mode in relation to boiling point recognition During self test (after initial installation) the unit will determine the installation altitude by water boiling point recognition. As the boiling temperature declines with increasing altitude above sea level, the water boiling point determines the installation altitude. -
Page 20: Selftest
Selftest Selfttest Selfttest Selfttest Your SCC will carry out an automatic Your SCC will carry out an automatic self test and adjust itself perfectly to self test and adjust itself perfectly to the set-up conditions and the altitude. Your SCC will carry out an automatic the set-up conditions and the altitude. - Page 21 Selftest During the self test the individual component groups are indicated ticked off one by one. IIn case an error number is displayed switch the unit OFF and ON again to access Service level. If the door contact, thermocouple interior cabinet, bus cable to motor or ignition box is defective, the selftest will be interupted Note: During Self Test it is always possible to access the Service diagnostic mode! Pre condition before Self test and Calibration...
-
Page 22: Humidity Control Scc_We
Humidity control SCC_WE In order to measure the humidity inside the interior cabinet the following pysical principle is used: When the fan wheel is turning, the rear fins create a differential pressure on pressure sensor p1 via the connecting hoses (inner and outer connection). The pressure sensor P1 is supplied with 12V DC. - Page 23 Humidity control SCC_WE If the measured humidity value is too high, the clima valve Y5 will be activated and the closing disk will be lifted. The negative pressure behind the fan wheel will cause dry air from the kitchen be sucked into the cabinet.
-
Page 24: Scc_We Cpu
SCC_WE CPU X152 X155 X150 X151 X153 X158 X102 X154 X106 X107 LED3 LED V10 LED V68 pin counting 1 V02 en, SCC_WE - 24 -... -
Page 25: Scc_We Cpu - Terminal Connection - Led Code
SCC_WE CPU - Terminal connection - LED Code Interface PCB A1 Power input to ON/OFF switch Central dial X102 Touch X150 X151 X152 X153 Data cable CPU (X107) X154 Data cable TFT X155 X158 Main PCB A2 Pressure sensor P1 - 12V DC Thermocouple B3.1 - 3.6 core probe Thermocouple B1 cabinet... -
Page 26: Sd Card - Changing Pcb, New Sd Card
SD card - Changing PCB, new SD card ONLY remove the SD card from the pcb, when the pcb must be replaced! The SD card shall NOT be connected to any windows based reader or Computer! Doing so will damage the data structure on the SD card and your unit will no longer function! The SD card on port X60 contains all unit specific information like energy type, unit size etc. - Page 27 Software update Only possible when SD card is properly inserted PCB New - No SD card in- Unit will not function serted PCB new - Old SD card Upload icon key is shown, When pressing the (standard service call) icon for 10 seconds, data are copied from SD card to pcb PCB old - New SD card Data are copied automatically from pcb to SD...
- Page 28 Fault tree Changing PCB SCC_WE Changing pcb (pcb defective) Isolate unit from power supply (Disconnect control fuses F1, F2) Removed SD card for usage in new PCB. Remove faulty PCB Replace pcb Insert SD card from old PCB into new PCB; In order to avoid Service 16 or 17 connect white USB stick with latest software to USB interface before re-inserting the control fuses.
-
Page 29: Fan Motor Scc_We Line
Fan motor SCC_WE Line LED 100 - 240V On floor units with 2 motors the bottom Only when the motor motor carries a jumper for bus recog- is connected to mains nition. This jumper is part of the wiring supply the green LED will harness. -
Page 30: Bus Connection
Bus connection Electric units: 61-102 E 201-202 E LED3 LED1 LED2 Bottom motor Gas units 61-102 G 201-202 G LED3 LED1 LED2 Bottom motor and bottom ignition box The bus system is equipped with a 6-pol Mini-Fit plug system. In the bus system the individual components have individual addresses. Each address only exists once in a unit. -
Page 31: Solidstaterelay (Ssr) Internal Design / Test
SolidStateRelay (SSR) internal design / Test Contactor with 12V DC coil SSR with 12V DC control A1/B1 - A2 Steam / Dampf A1/B1 - B2 Hot Air / Heißluft A1/B1 12V DC 0V DC A1/B1 0V DC 12V DC SSR Test: Unit is switched ON and cabinet door is open L1 - L2 = 400V 0 Amp = ok Volt... -
Page 32: Ssr 100% - 50% Power At 3Nac/400V
SSR 100% - 50% power at 3NAC/400V Control of SSR steam element at 100% energy demand Star connection 3(N)AC 400-480V Violet A1/B1 - A2 Steam / Dampf A1/B1 - B2 Hot Air / Heißluft 12V DC 0V DC A1/B1 Orange Black Steam generator 12V DC... -
Page 33: Ssr 100% - 50% Power At 3Ac 200-240V
SSR 100% - 50% power at 3AC 200-240V Control of SSR steam element at 100% energy demand Delta connection 3AC 200-240V Violet A1/B1 - A2 Steam / Dampf A1/B1 - B2 Hot Air / Heißluft 12V DC 0V DC A1/B1 Orange Black 12V DC... -
Page 34: Control Of Cooling Fan
Control of cooling fan The supply air cooling fan for units 61 - 102 behind the control panel is controlled by a converter 230V AC - 24V DC. The air filter under the control panel can be replaced by simply unlocking it from the base frame. -
Page 35: Control Of Drain Valve
Control of drain valve When switching on the SCC unit the drain valve automatically starts to initialise, this means it tries to find the correct end position. This end position is the open position of the ball valve (posi- tion for cooking). If this doesn‘t work, „Service 26“... -
Page 36: Cds
1.Basics During steam production the concentration of minerals in water of the steam generator increases. These minerals deposit in the steam generator and build up scale. The build up of scale is influenced by the local water hardness and the individual usage of the unit. -
Page 37: Carecontrol
CareControl The condition of the indication depends on: a: the use of the unit b: the cleaning behaviour of the customer c: the degree of scale in the steam generator (see information CDS). Display Care 1: very good care - only one green bar visible. 2: medium care - yellow bars are visible 3: neglected care - red bars are visible The request for Clean+Care has been neglected several times. -
Page 38: Function During Cleanjet+Care
Function during CleanJet+Care Sequence of Cleanjet Program Light, Medium, Strong Component test 1. SC pump is activated until level electrode senses low water. 2. Y1 filling solenoid is activated (control by CDS) 3. Y3 moistening solenoid is activated (control by CDS) 4. -
Page 39: Cleanjet: Error Messages - Abort Program
CleanJet: Error messages - Abort program Depending on real steam production time or when the scale deposit inside the steam generator is below 4%, only a small number of Care Tabs is indicated and steps 12, 14, 16 and 19 are skipped (no descaling of steam generator, shorter CleanJet+Care process). -
Page 40: Diagnose - Real Time Data - Start
Diagnose - Real Time Data - Start Function key Settings Actual service messages enter password HACCP Communication Q W E R T Z U I O P Service A S D F G H J K L Unit data empty Steam generator Y X C V B N M UK _+123... -
Page 41: Diagnose - Real Time Data - Content
Diagnose - Real Time Data - Content Real time data - Sensors Act. Temperature Max Tempera- Acvcepted Tole- Time max temperature reached ture rance Cabinet B1 Quenching B2 Humidity B4 Steam Generator B5 Core Temp B3-1 (tip) Core Temp B3-2 Core Temp B3-3 Core Temp B3-4 Core Temp B3-5... -
Page 42: Diagnose - Running Times - Start
Diagnose - Running times - Start Function key Settings Actual service messages enter password HACCP Communication Q W E R T Z U I O P Service A S D F G H J K L Unit data empty Steam generator Y X C V B N M UK _+123 Äöüß... -
Page 43: Diagnose - Running Times - Content
Diagnose - Running times - Content Running times Components Running times Door openings S3 Reset XXXX Ball valve openings S12 Reset XXXX Solenoid valve filling Y1 Reset XXXX min Solenoid valve quenching Reset XXXX min Solenoid valve moistening Reset XXXX min Solenoid valve care Y4 Reset XXXX min... -
Page 44: Diagnose - Service Error History - Start
Diagnose - Service error history - Start Function key Settings Actual service messages enter password HACCP Communication Q W E R T Z U I O P Service A S D F G H J K L Unit data empty Steam generator Y X C V B N M UK _+123... -
Page 45: Diagnose - Service Error History - Content
Diagnose - Service error history - Content SCC Service Error History first appearence counter last appearance Service 10 SC pump hr:min:sec dd:mm:yyyy X times time and date Service 11 CDS sensor hr:min:sec dd:mm:yyyy X times time and date Service 12 CDS sensor without hr:min:sec dd:mm:yyyy X times... -
Page 46: Basic Settings - Start
Basic settings - Start Function key Settings Actual service messages enter password HACCP Communication Q W E R T Z U I O P Service A S D F G H J K L Unit data empty Steam generator Y X C V B N M UK _+123 Äöüß... -
Page 47: Basic Settings - Content
Basic settings - Content Water Status Factory Setting, Detected values CDS sensor 1000 1000 Volume steam generator new after XX l manual descaling Volume steam generator new after XX l steam generator replacement SC pump: set pump duration X sec SC pump: mode Continuous oder Puls SC pump: set interval time... -
Page 48: Function Test - Start
Function test - Start Function key Settings Actual service messages HACCP enter password Communication Q W E R T Z U I O P Service A S D F G H J K L Unit data empty Steam generator Y X C V B N M UK _+123 Äöüß... -
Page 49: Function Test - Content
Function test - Content Heating/Motor Status Values Steam 50% 0 or 1 B5 = X°C Start Steam 100% 0 or 1 B5 = X°C Start Hot air 50% 0 or 1 B1 = X°C Start Hot air 100% 0 or 1 B1 = X°C Start Fan Motor top... -
Page 50: Calibration - Start
Calibration - Start Function key Settings Actual service messages enter password HACCP Communication Q W E R T Z U I O P Service A S D F G H J K L Unit data empty Steam generator Y X C V B N M UK _+123 Äöüß... -
Page 51: Calibration - Sequence
Calibration - Sequence Pre condition before calibration temperature of cooking cabinet sensor B1 is below 40°C (102°F) temperature of quenching sensor B2 is below 40°C (102°F) temperature of humidity sensor B4 is below 40°C (102°F) door contact closed heating: OFF fan motor: OFF left side panel closed, interior cabinet clean, if possible dry;... - Page 52 V02 en, SCC_WE - 52 -...
-
Page 53: Setting Show Mode - Error Analysis
Setting Show mode - error analysis Software version from 05-00-07: In case the unit shall be connected as a show room unit (exhibition), it must be converted prior of starting the self Selfttest test. Your SCC will carry out an automatic In the first Sleft test display press Service self test and adjust itself perfectly to Start key... -
Page 54: Error Message Service
Error message Service 1 - 25 Display Definition Reason and remedy Service 10 SC pump Display 30 sec. after switch on Display can be cancelled SC-Automatic without function, water level always high check SC pump and drain hose SC pump. Service 11 CDS sensor Display 30 sec. -
Page 55: Error Message Service 26 - 37
Error message Service 26 - 37 Display Definition Reason and remedy Service 26 Drain valve - Appears on time when CleanJet is selected permanently - Cooking not possible - drain closed closed - Micro switch drain valve in permanent closed position - Replace drain valve assembly Service 27 Drain valve... -
Page 56: Error Message Service 40 - 120, Blink Code Motor
- Reset error by successful completing ABORT program; The error messages can be seen under Diagnostic, Service history. Blink code Motor Reason Remedy Starting error contact Rational, change motor 2x, 4x, 5x, 7x, 9x, 11x, Motor defective change motor 3x, 6x, volatge error... -
Page 57: Scc Software Update
SCC Software update Only use the Original Rational USB Stick for Software update of SCC_WE units. (Note: Most of the standard USB sticks can not be used for software update.) The Rational USB Stick can be ordered with service part number: 87.01.084. - Page 58 The stick shall not contain any other data! Whe new software becomes available software can be updated on RATIONAL USB by using UPDATE SCC_WE.exe file without login to service web site. Update unit with RATIONAL USB stick. V02 en, SCC_WE - 58 -...
- Page 59 - 59 - V02 en, SCC_WE...
-
Page 60: Download Of Service Data
HACCP data! With the INFO download key complex unit data can be downloaded. These data can only be evaluated by Rational. The data time range for the download can be selected. V02 en, SCC_WE... - Page 61 Download of unit service data RAG_E62SH12022208034_20120515092833_service Common Information ------------------ Date and Time....: 20120515092835 Startup Date and Time..: undef Unit type.....: SCC_62 Energy type....: E Unit Serial number....: E62SH12022208034 Software version....: SCC-05-00-10 Script version....: SW-update Date and Time..: undef CPU-Board Revision....: 0506 CPU-Board Serial number..: 25233859 CPU-Board Manufacturing date..: 2011-05-19 17:57:58 Burner Control 0 SW-version...:...
- Page 62 Download of gas error data Gas Error Logger Burner Control 0 Indication of the last 14 gas-failures, generated by ignition box top) Gas Error Logger Burner Control 1 Indication of the last 14 gas-failures, generated by ignition box bottom) Indication of ignition box error messages (1-32 is shown to the operator as „Reset“): Hot air or Steam no gas, gas valve or electrode defective Hot air...
- Page 63 - 63 - V02 en, SCC_WE...
-
Page 64: Download Of Haccp Data
Download of HACCP Data Function key HACCP Data will be available for approximately 10 days when the unit is used for 16 hours daily. Should the daily usage be less than that the storage time will be Basic Settings extended accordingly. Normally HACCP data can be downloaded onto any commercial USB memory stick. - Page 65 Format of HACCP Data HACCP-Data are shown in the following format: *** H A C C P *** Ch-nr. >>210<< = batch number (number of stored cooking processes) Type >>SCC_61<< = unit type Serial nr.>>E61SH11092534567<< = Serial number of the unit Version >>SCC - (s/o/C)<<...
-
Page 66: Circuit Diagram 101 Power 3Nac 400-415V
Circuit diagram 101 Power 3NAC 400-415V V02 en, SCC_WE - 66 -... -
Page 67: Circuit Diagram 101 Heating 3Nac 400-415V
Circuit diagram 101 Heating 3NAC 400-415V - 67 - V02 en, SCC_WE... -
Page 68: Circuit Diagram 101 Sensor
Circuit diagram 101 Sensor V02 en, SCC_WE - 68 -... -
Page 69: Circuit Diagram Bill Of Material
Circuit diagram Bill of material - 69 - V02 en, SCC_WE... - Page 70 Circuit diagram Bill of material V02 en, SCC_WE - 70 -...
-
Page 71: Circuit Diagram 202 Power 3Nac 400-415V
Circuit diagram 202 Power 3NAC 400-415V - 71 - V02 en, SCC_WE... -
Page 72: Circuit Diagram 202 Heating 3Nac 400-415V
Circuit diagram 202 Heating 3NAC 400-415V V02 en, SCC_WE - 72 -... -
Page 73: Circuit Diagram 202 Sensor
Circuit diagram 202 Sensor - 73 - V02 en, SCC_WE... -
Page 74: Circuit Diagram Bill Of Material
Circuit diagram Bill of material V02 en, SCC_WE - 74 -... - Page 75 Circuit diagram Bill of material - 75 - V02 en, SCC_WE...
- Page 76 Chef Line: Phone: +49 (0)8191-327300 © 2011 Rational Technical Services. All rights reserved. Please note that any technical information concerning Rational products must NOT be forwarded to any third party. 80.51.113 - V02 en -SCC - RTS/Sc 02/2012...
