Summary of Contents for ACL 800

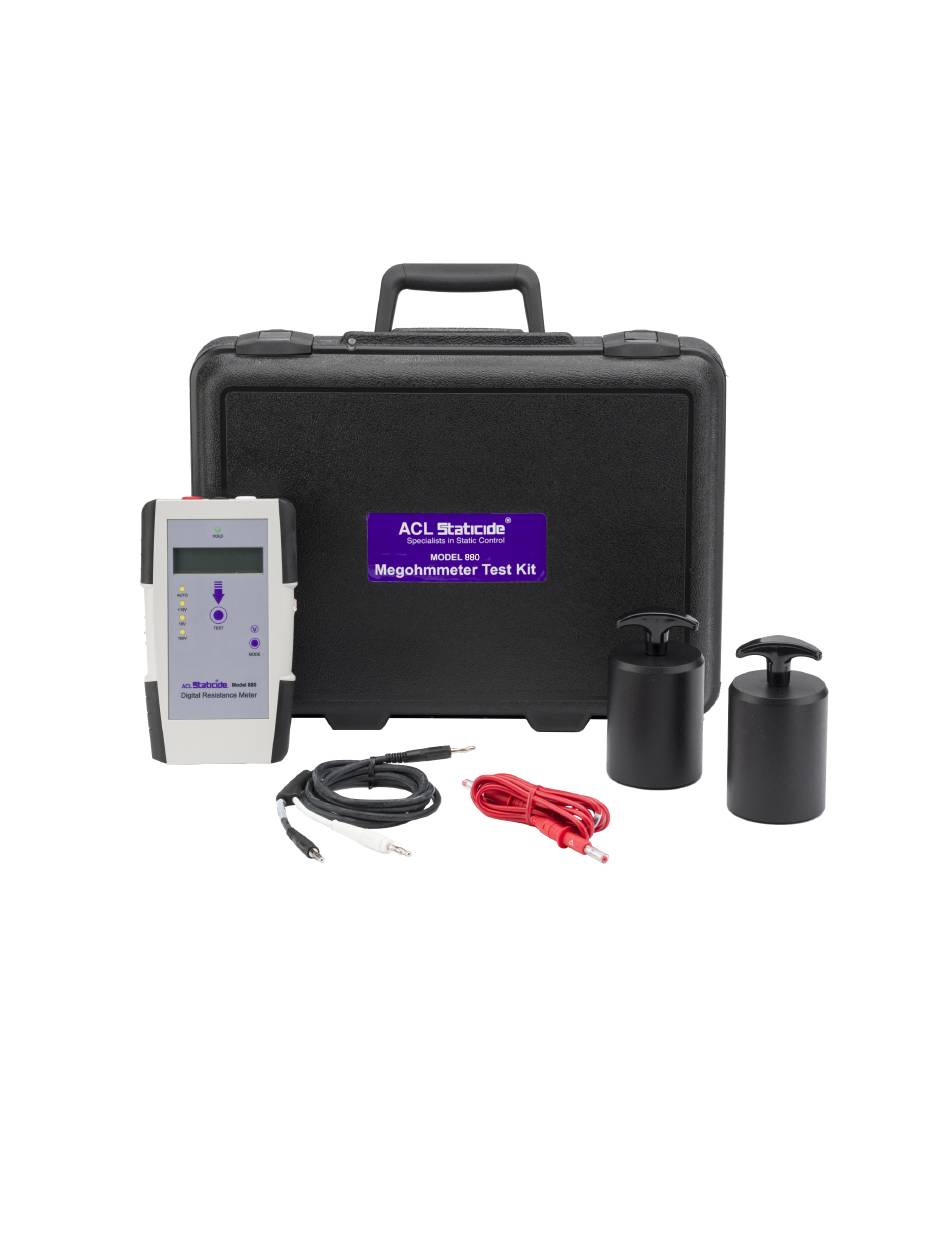

- Page 1 ACL 800 MEGOHMMETER OPERATION MANUAL Meter is warranted for one year from the date of purchase on parts and labor. Calibration is recommended every twelve months. ACL Inc. Tel: 847-981-9212 840 W. 49th Place info@aclstaticide.com Chicago, IL 60609 USA www.aclstaticide.com...
-
Page 3: Table Of Contents
Table of Contents ESD CHECK ACL 880 DIGITAL RESISTANCE METER Sec on Topic Page Introduc on & Descrip on Ba ery Installa on III. Resistance Measurements in Automa c Mode Electrifi ca on Period in AUTO/GO A Mode Measurements in Manual Mode Ba ery Replacement VII. -
Page 4: Introduc On & Descrip On
ACL 880 Digital Resistance Meter I. Introduc on & Descrip on The ACL 880 instrument is a digital resistance meter that measures accurately from 1.0x10 to 1.0x10 ohms. In its AUTO mode the instrument automa cally adjusts resistance range and selects test voltage in accordance with standard prac ces outlined in ANSI/ESD STM11.11, and meets audit requirements... - Page 5 ACL 880 Digital Resistance Meter There are two main Modes of ACL 880 Opera on 1. AUTO mode (Displayed as GO A): Automa cally adjusts resistance range, test voltage and Elec- trifi ca on Period (EP). Measurements stops at the end of EP, Green LED is ON, measurement is displayed for 10 seconds then instrument resets for the next measurement.
-
Page 6: Ba Ery Installa On
• Open Ba ery Cover • Replace Ba ery (9V Alkaline) • Close Cover Philips #1 screw Ba ery Cover Figure 6: ACL 880 Ba ery Figure 5: Main Power Ba ery Cut-Off Switch on side of Instrument Compart-ment on bo om of Instrument A. - Page 7 3. Selects func on and star ng test voltage for AUTO, or CONTINUOUS mode 4. Ini ates CAL? func on: a. CAL? Func on: Is used by qualifi ed ACL Staticide® trained technicians to adjust instrument test voltages using a special technique to maintain specifi ca on performance.
-
Page 8: Resistance Measurements In Automa C Mode
ACL 880 Digital Resistance Meter Figure 9: The shield is connected to the me- Figure 10: Receptacle spacing accommodates ter via the white banana plug and receptacle dual banana plug connectors. III. Resistance Measurements in Automa c Mode In the default AUTO mode the instrument makes range and test voltage adjustments automa cally, depending on the resistance of the material or object being measured, and in accordance with stan- dard measurement protocol. -
Page 9: Electrifi Ca On Period In Auto/Go A Mode
(EP) to insure an accurate representa on of the material under test. The ACL 880 measurement process is quite fast and once a measurement is stable in the LCD, the operator may elect to use the stable displayed measurement. In this case the EP is manually determined by the operator. -
Page 10: Measurements In Manual Mode
ACL 880 Digital Resistance Meter V. Measurements in Manual Mode To manually select a specifi c test voltage, once leads or fi xtures are installed, slide the Main Power switch to ON. A. Press the MODE bu on one me and note the illuminated LED above AUTO is OFF, and the LED above <10V, is ON. -
Page 11: User Adjustments & Maintenance
RELI-ANCE OR ANY OTHER THEORY. Out of Warranty Repairs ACL Staticide expressly warrants that for a period of 90 Days from the date of repair, by ESD Check, in-struments and products will be free of defects in material (parts) and workmanship (labor). If ESD Check receives no ce of such defect during the warranty period, ESD Check will replace or repair at its expense such parts which it determines to be defec ve. - Page 12 Limit of Liability In no event will ACL Staticide or any authorized reseller be responsible or liable for special, incidental, or consequen a l losses or damages, under any legal theory including but not limited to contract, negligence, or strict liability.
-
Page 13: General Specifi Ca Ons
- Press MODE with TEST to change from Auto to Con nuous - Used to measure lead resistance (NULL) - Used by ACL Staticide Authorized Technicians for Voltage Calibra on CONNECTIONS Posi ve (+) Test Voltage (RED) – Supplies test voltage to electrodes/fi xtures Nega ve (-) Current sensing (BLACK) –... - Page 14 ACL 880 Digital Resistance Meter TYPICAL TOLERANCES Nominal performance by range: 1.0E3 – 9.99E10 Ω <±2%, ±2 Counts 1.0E11 – 1.0E12 Ω <± 10%, ±4 Counts TEST VOLTAGES Automa cally selected and controlled in AUTO mode. May be manually selected by pressing MODE pad in the following order: •...
- Page 15 ACL 880 Digital Resistance Meter Rev. B / June 2019...
- Page 16 TEL: 847-981-9212 info@aclstaticide.com meters@aclstaticide.com www.aclstaticide.com ISO 9001:2015...
