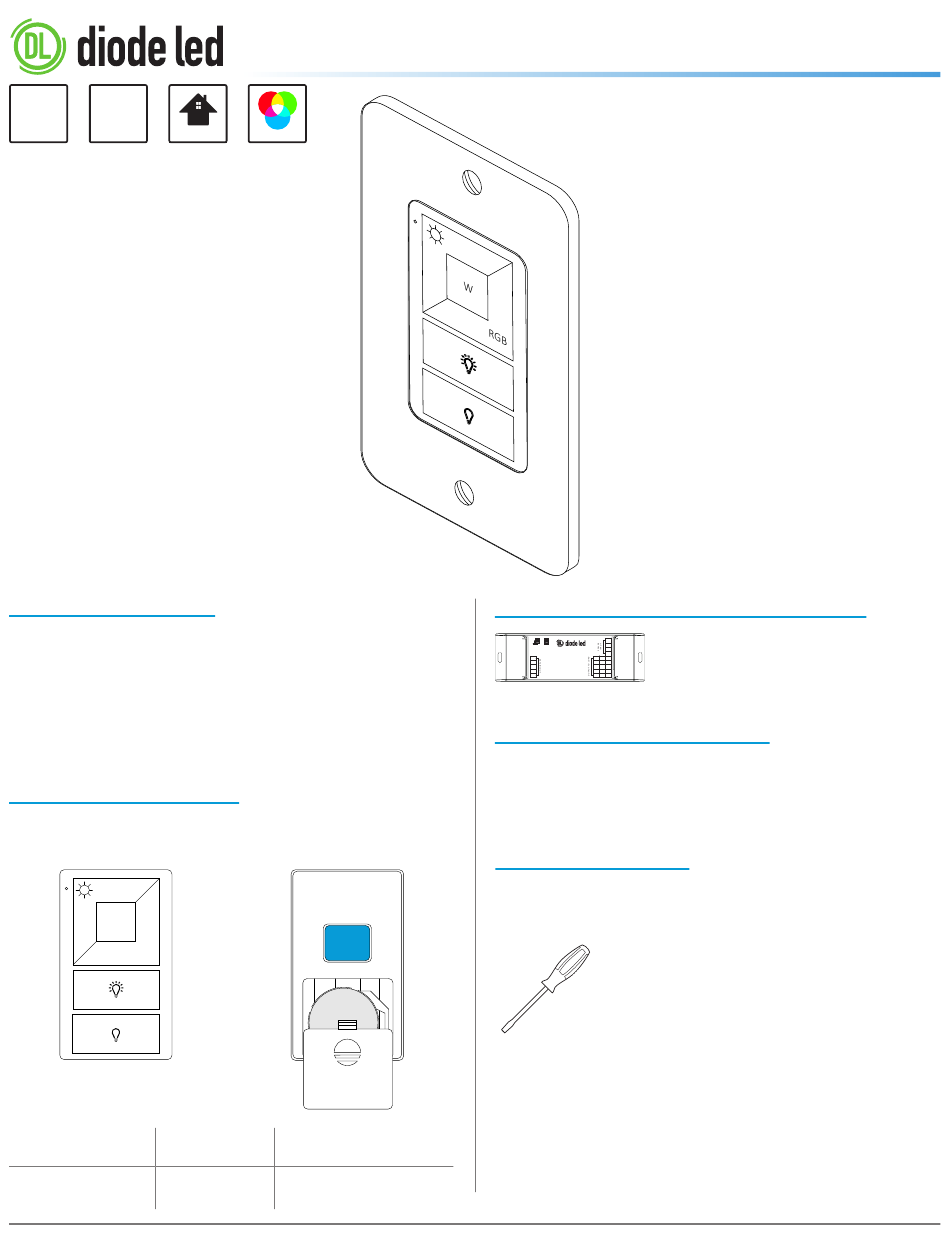

DIODE LED Touchdial DI-RF-WMT-RGBW Installation Manual

12VDC 24VDC
DRY LOCATION
SAFETY & WARNINGS
1. Only for use with compatible 12V and 24VDC constant voltage
luminaires.
2. This product is rated for indoor installation and is not protected
against moisture.
3. Do not modify product beyond instructions or warranty will be
void.
QUICK SPECS / MODELS
DI-RF-WMT-RGBW
FRONT
W
RGB
Input Operating
Frequency
3V (CR2032)
916.5MHz
Battery (Included)
TOUCHDIAL RGB(W) Wall Control INSTALL GUIDE
™
TOUCHDIAL
®
COLOR-CHANGING
BACK
Magnet
CR2032
Battery
Dimensions
2.59 x 1.27 x 0.35 in.
(L x W x H)
RGB(W) Wall Control
™
ADDITIONAL TOUCHDIAL COMPONENTS
V−
®
V−
MASTER COMPANION
V+
TOUCHDIAL ™ Receiver
LEARNING KEY
V+
GND V+ V+ V+
D1+ W WW R
D1─ W CW G
D2+ W WW B
D2─ W CW W
APPROVED LED LUMINAIRES
The TOUCHDIAL RGB(W) Wall Dimmer is compatible with all
Diode LED 12V and 24VDC color constant voltage tape lights
and fixtures.
TOOLS FOR INSTALL
Mini flat-head
screwdriver
1 OF 3
INSTALLATION GUIDE
DI-RF-REC-CV-A
TOUCHDIAL Receiver
(Required)
IG070319-2.0
