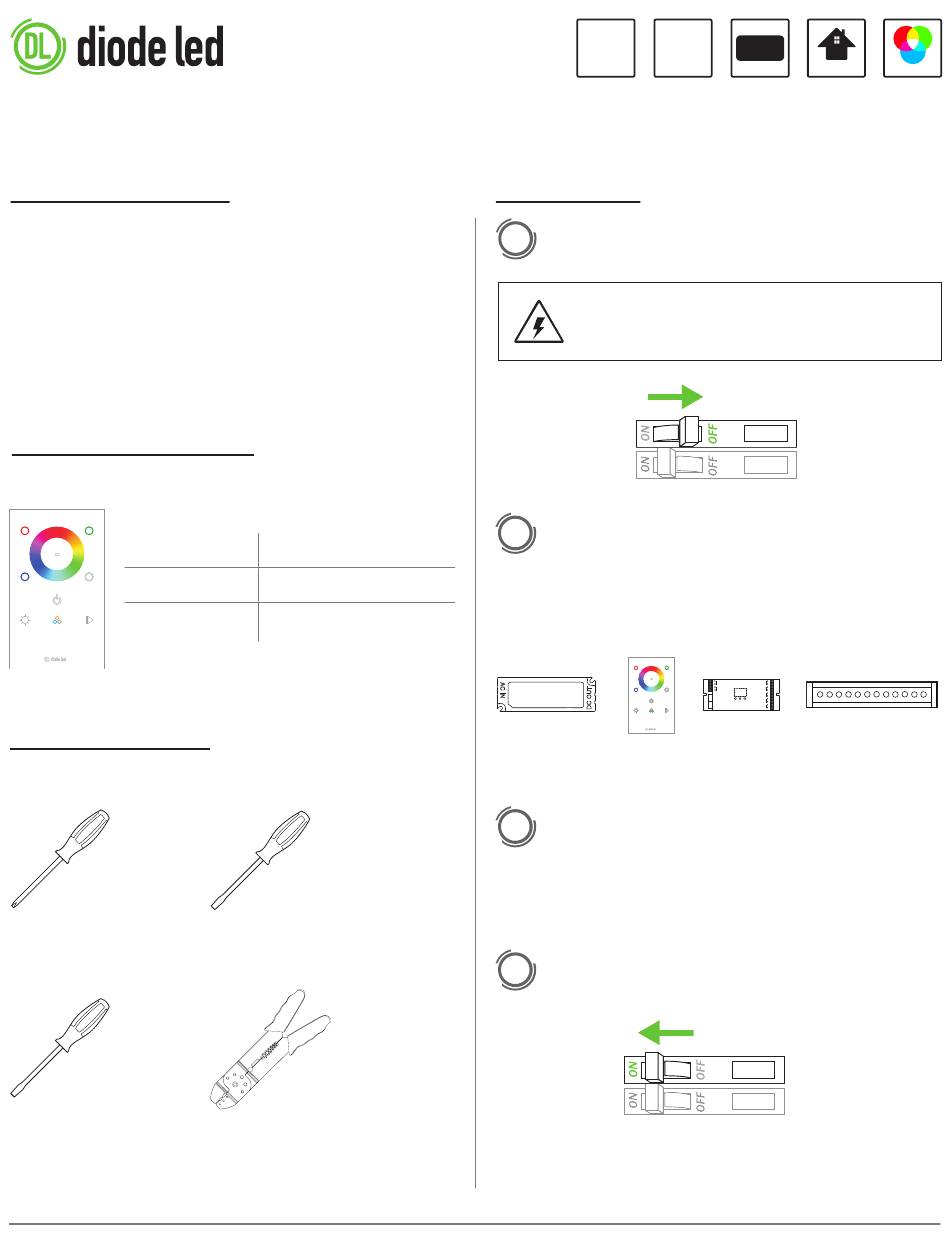

DIODE LED DI-DMX-WIFI-WMUS-3Z-WH Installation Manual

DMX WALL MOUNT ZONE CONTROLLER
SAFETY & WARNINGS
1. Install in accordance with national and local electrical code
regulations.
2. This product is intended to be installed and serviced by a qualified,
licensed electrician.
3. DO NOT connect directly to high voltage power. Install with a
compatible Class 2 constant voltage LED driver (power supply).
4. Only install compatible 12V and 24VDC constant voltage luminaires.
5. This product is rated for indoor installation and is not protected
against moisture.
6. Do not modify product beyond instructions or warranty will be void.
QUICK SPECS / MODELS

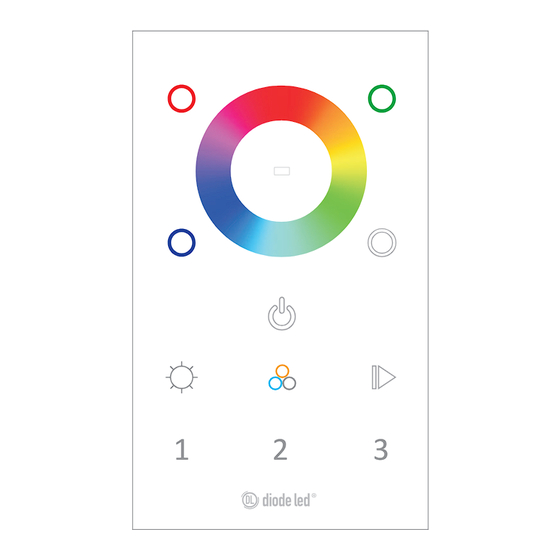

DI-DMX-WIFI-WMUS-3Z-WH
Input Voltage
Output Signal
WiFi Transmitting
Distance
1 2 3
®
TOOLS FOR INSTALL
Phillips-head screwdriver
Mini flat-head screwdriver
DMX ZONE CONTROLLER INSTALLATION GUIDE
®
12 - 24VDC Constant Voltage
DMX512
40 ft.
Flat-head screwdriver
Wire stripper
12VDC
INSTALLATION
1
TURN POWER OFF AT CIRCUIT BREAKER
SHOCK HAZARD! May result in serious injury or death.
Turn power OFF at circuit breaker prior to installation.
2
DETERMINE LOCATION TO INSTALL COMPONENTS
See SYSTEM DIAGRAM for more information. DMX luminaires can be
connected directly to controller. DMX Decoders are only utilized to
control Non-DMX type luminaires.
LED Driver(s) Controller
3
CONNECT COMPONENTS
Only use copper wiring. Reference WIRING CONNECTIONS and SYSTEM
DIAGRAM further in this guide for visuals.
4
TURN POWER ON AT CIRCUIT BREAKER
If system remains unresponsive or is working improperly, turn OFF main
power at breaker and verify all connections.
1 OF 5
24VDC
DMX
COMPATIBLE
INSTALLATION GUIDE
V+ V+
V- CH1 - R
CH2 - G
Data IN
CH3 - B
0-5 0-9 0-9
Data OUT
CH4 - W
1 2 3
®
DMX Decoder
DRY LOCATION COLOR-CHANGING
Luminaire
IG050919-4.0
