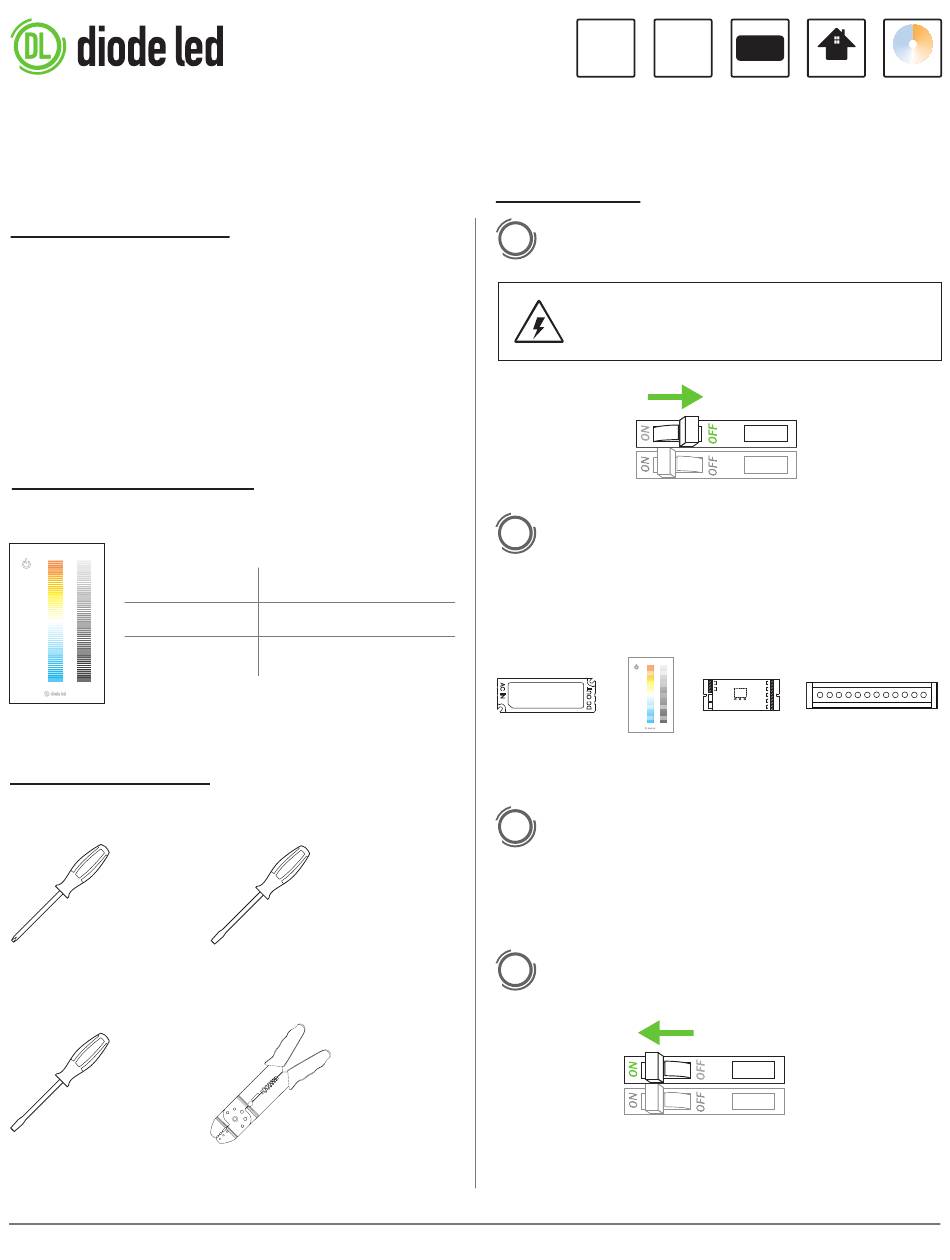

TUNABLE WHITE DMX WALL MOUNT
ZONE CONTROLLER
SAFETY & WARNINGS
1. Install in accordance with national and local electrical code
regulations.
2. This product is intended to be installed and serviced by a qualified,
licensed electrician.
3. DO NOT connect directly to high voltage power. Install with a
compatible Class 2 constant voltage LED driver (power supply).
4. Only install compatible 12V and 24VDC constant voltage luminaires.
5. This product is rated for indoor installation and is not protected
against moisture.
6. Do not modify product beyond instructions or warranty will be void.
QUICK SPECS / MODELS

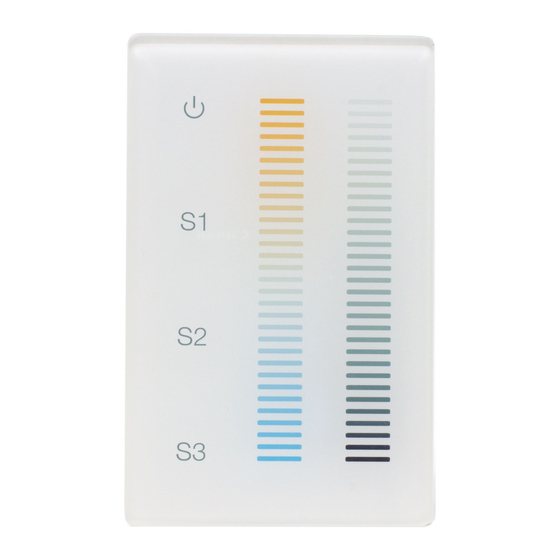

DI-DMX-WIFI-WMDC-1ZWH
Input Voltage
S1
Output Signal
S2
WiFi Transmitting
Distance
S3
®
TOOLS FOR INSTALL
Phillips-head screwdriver
Mini flat-head screwdriver
DMX ZONE CONTROLLER INSTALLATION GUIDE
®
12 - 24VDC Constant Voltage
DMX512
40 ft.
Flat-head screwdriver
Wire stripper
12VDC
INSTALLATION
1
TURN POWER OFF AT CIRCUIT BREAKER
SHOCK HAZARD! May result in serious injury or death.
Turn power OFF at circuit breaker prior to installation.
2
DETERMINE LOCATION TO INSTALL COMPONENTS
See SYSTEM DIAGRAM for more information. DMX luminaires can be
connected directly to controller. DMX Decoders are only utilized to
control Non-DMX type luminaires.
LED Driver(s)
Controller
3
CONNECT COMPONENTS
Only use copper wiring. Reference WIRING CONNECTIONS and SYSTEM
DIAGRAM further in this guide for visuals.
4
TURN POWER ON AT CIRCUIT BREAKER
If system remains unresponsive or is working improperly, turn OFF main
power at breaker and verify all connections.
1 OF 5
24VDC
DMX
COMPATIBLE
INSTALLATION GUIDE
S1
V+
V+
V-
CH1 - R
CH2 - G
Data IN
S2
CH3 - B
0-5 0-9 0-9
Data OUT
CH4 - W
S3
®
DMX Decoder
DRY LOCATION
ADJUSTABLE KELVIN
Luminaire
IG050421-2.0
Advertisement
Table of Contents
Related Manuals for DIODE LED DI-DMX-WIFI-WMDC-1ZWH
Summary of Contents for DIODE LED DI-DMX-WIFI-WMDC-1ZWH
- Page 1 5. This product is rated for indoor installation and is not protected against moisture. 6. Do not modify product beyond instructions or warranty will be void. QUICK SPECS / MODELS DI-DMX-WIFI-WMDC-1ZWH DETERMINE LOCATION TO INSTALL COMPONENTS Input Voltage 12 - 24VDC Constant Voltage See SYSTEM DIAGRAM for more information.
- Page 2 INSTALLATION CONT. MOBILE DEVICE OPERATION PAIRING CONTROLLER TO MOBILE DEVICE The DMX controller can also be controlled remotely via WiFi with a 1. Go to WiFi settings of mobile device. compatible IOS/Android mobile device. Go to iOS or Google Play App 2.
- Page 3 SETTING DMX ADDRESS Example of DMX Addressing Display Each DMX decoder or DMX luminaire needs to be addressed correctly so the controller can communicate to each decoder. To pair a DMX decoder or luminaire to the controller, Digital Display set each decoder/luminaire to the following address: •...
- Page 4 SYSTEM DIAGRAM The following diagram is provided as an example system design. CAT5 (RJ45 connections) data cables are the most cost-effective solution for transmitting DMX-512 signals. XLR-3 cables may also be installed but require an additional adapter for connecting to DMX decoders. Always review each component installation guide for detailed and up-to-date wiring instructions.
- Page 5 TROUBLESHOOTING For thorough troubleshooting of LED strip light and luminaires, see LED luminaire installation guides. LED luminaires not responding to touch 1. Ensure the blue indicator light is on by pressing ‘Power.’ A red indicator signifies the device is off. The blue indicator light will blink rapidly when pressing/holding any key on the touch pad.
