Description
Allen-Bradley
EEPROM Memory Module
(Cat. No. 1772-MJ)
Product Data
The EEPROM (Electrically Erasable Programmable Read Only Memory)
Memory Module is a plug-in module that provides Mini-PLC-2/05
Processors (cat. no. 1772-LS, -LSP) with a back-up memory (figure 1).
This 3K non-volatile EEPROM module is an option for these processors.
Product Data
EEPROM Memory Module
1
Advertisement
Table of Contents
Related Manuals for Allen-Bradley 1772-MJ
Summary of Contents for Allen-Bradley 1772-MJ
- Page 1 Product Data EEPROM Memory Module Allen-Bradley EEPROM Memory Module (Cat. No. 1772-MJ) Product Data Description The EEPROM (Electrically Erasable Programmable Read Only Memory) Memory Module is a plug-in module that provides Mini-PLC-2/05 Processors (cat. no. 1772-LS, -LSP) with a back-up memory (figure 1).

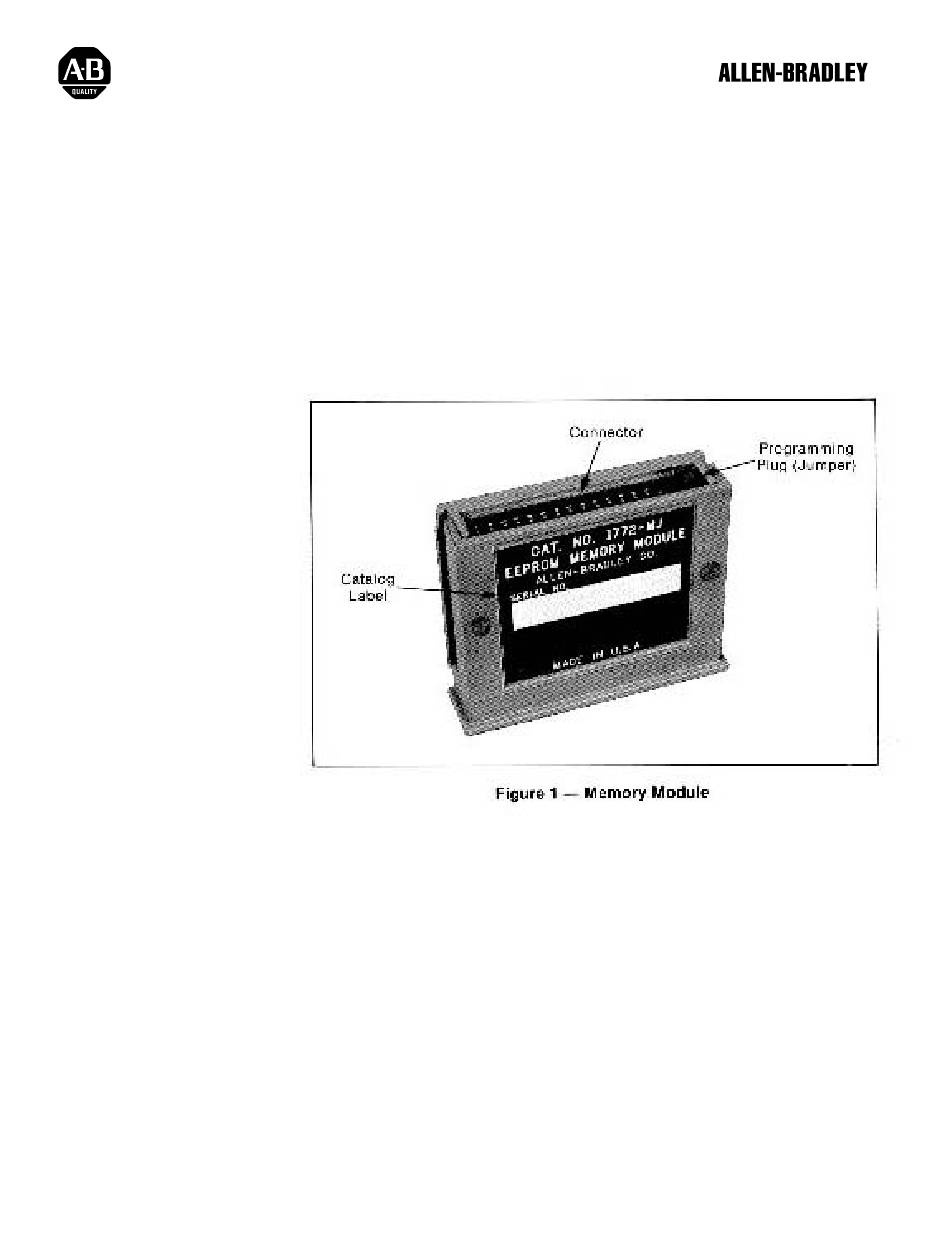

- Page 2 Product Data EEPROM Memory Module Figure 1 Memory Module You can duplicate and transfer processor memory from CMOS RAM to the EEPROM module when the processor is in remote program mode. You can select one of the following three modes that the processor will use to establish its memory when recovering from a power loss.
- Page 3 Product Data EEPROM Memory Module Handling the EEPROM Avoid touching the recessed conductors of the connector. Static charge can Module alter memory. Skin oil and dirt can can corrode metallic surfaces, inhibiting electrical contact. Installation Insert the EEPROM module into the bottom of the Mini-PLC-2/05 processor using the following steps: Place the processor on a bench top with the battery label up.
- Page 4 Product Data EEPROM Memory Module EEPROM Programming You can duplicate and transfer your ladder diagram program from processor CMOS RAM to the EEPROM module when the processor is in remote program mode. Use the following steps: If you have already inserted the programming plug (jumper) onto your EEPROM module and installed the EEPROM module in the processor, skip steps 1 thru 8.
- Page 5 Product Data EEPROM Memory Module Connect the power cable to the screw terminals on the processor, then connect the power cable to the power source. Turn on power to the processor and power supply module. With the processor operating in remote program mode, store any data table values that you want activated when the processor transfers EEPROM back-up memory to processor memory.
- Page 6 Product Data EEPROM Memory Module EEPROM Downloading You can download the program stored in any EEPROM module into processor memory using the following steps. Refer to installation, removal, and EEPROM programming procedures for details. Turn off all power to the I/O chassis and processor. Remove the processor from the I/O chassis.
