Sony XC-EU50 Technical Manual Page 12

Sony corporation ccd black-and-white video camera module xc-eu50/eu50ce.
Hide thumbs

Advertisement

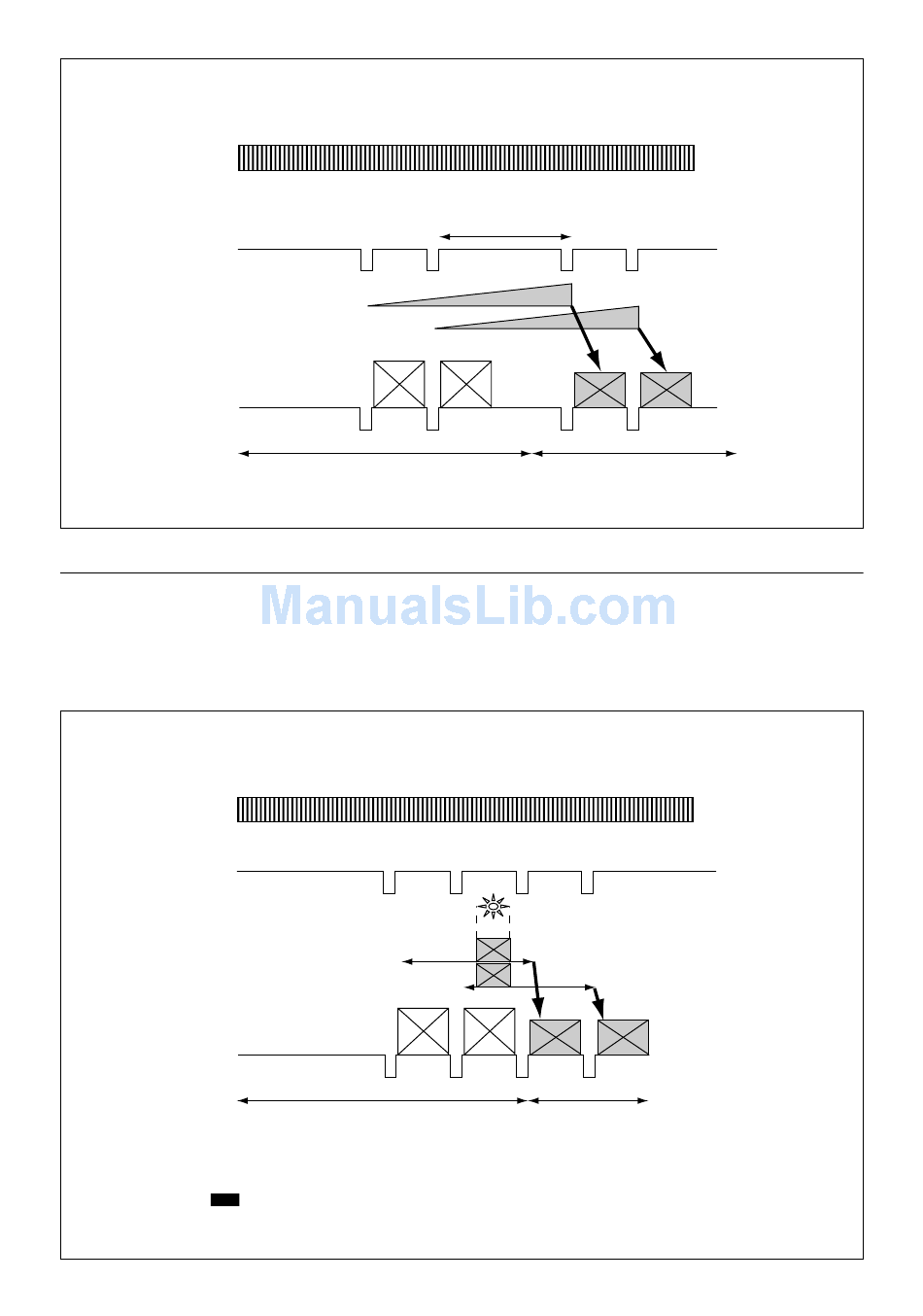

Sample input timing chart 2
EXT HD
EXT VD
Exposure time for the Odd field
Exposure time for the Even field
Frame Accumulation (Factory setting)
Video output
Odd and even fields are determined by the phase of the EXT HD/VD signal input from the outside.
Frame image output with a strobe light
The factory setting for this camera is Frame
Accumulation. The images obtained when the normal
continuous shutter or trigger shutter is used are field
images (vertical resolution: 243 lines).
Sample input timing chart
EXT HD
EXT VD
Strobe light
Exposure time for the Odd field
Exposure time for the Even field
Frame Accumulation (Factory setting)
Video output
Odd and even fields are determined by the phase of the EXT HD/VD signal input from the outside.
Avoid lighting the scene during the light-emitting inhibit zone defined below. (The field is transfered to the
storage area of the CCD, so it can be read out.)
Note
For best performance, it is recommended that you not flash between VD and VD + 10 H (XC-EU50)/16 H
(XC-EU50CE).
Continuous signal: 15.734 kHz (XC-EU50) Allowable frequency value ±1%,
15.625 kHz (XC-EU50CE) Allowable frequency value ±1%
VD interval (T): 262.5 H or more (XC-EU50) and less than 1 second (Recommended),
312.5 H or more (XC-EU50CE) and less than 1 second (Recommended)
Four or more VD pulses are required.
Invalid image
Continuous signal: 15.734 kHz (XC-EU50) Allowable frequency value ±1%,
15.625 kHz (XC-EU50CE) Allowable frequency value ±1%
VD: 1/60 sec (XC-EU50), 1/50 sec (XC-EU50CE)
Four or more VD pulses are required.
Invalid image
T
1/60
1/60
second
second
Odd
Even image
Valid frame image
Using a strobe light and Restart/Reset mode, you can
obtain bright frame images by synchronizing any
strobe light. (Vertical resolution: 485 lines).
Odd
Even
Valid frame image
Mode Setting
12
