A

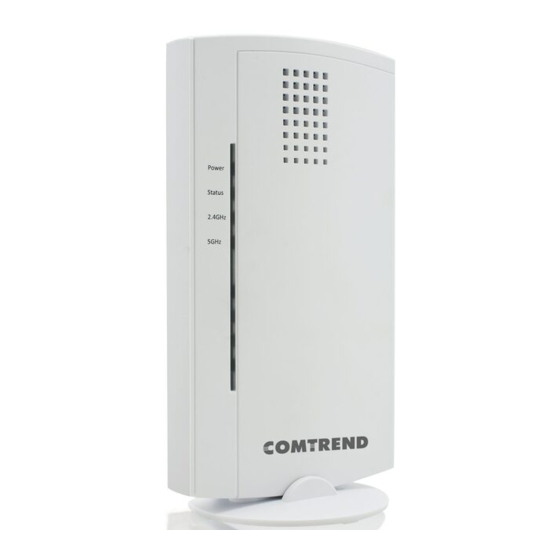

G E T T I N G T O K N O W Y O U R A C 2 6 0 0 W I R E L E S S R O U T E R
Front Panel
WPS Button
Reset
Button
RT/AP Switch
LAN 1-4
Ports
WAN
Port
Power Plug
Back Panel
Quick Install Guide
WR-5931| AC2600 Wireless Router
LED Name
Light Status Description
Power
On
On
Off
Status
Flashing
On
Off
2.4GHz
Flashing
On
Off
5GHz
Flashing
Item Name
WPS Button
Reset Button
RT/AP Switch
LAN 1- 4 Port
WAN Port
Power Plug
Router is switched on and correctly powered.
When internet connection OK.
No internet connection.
Slow Flashing: WPS pairing process.
Quick Flashing: Resetting to factory default.
2.4GHz Wireless is enabled.
2.4GHz Wireless network is switched off.
2.4GHz Wireless LAN activity (transferring
or receiving data).
5GHz Wireless is enabled.
5GHz Wireless network is switched off.
5GHz Wireless LAN activity (transferring
or receiving data).
Description
WiFi Protected Setup button. Press this button for 2
seconds to activate the 2.4GHz & 5GHz Wireless WPS
function.
Press this button for 10 seconds to reset the router to
factory default settings (clear all settings).
RT (Router Mode)
Working as a standard WiFi router.
AP (Access Point Mode)
Working as a standard WiFi access point.
Local Area Network (LAN) Ethernet ports 1 to 4.
Wide Area Network (WAN / Internet) port.
Power connector, connects to A/C power adapter.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comtrend Corporation WR-5931
Summary of Contents for Comtrend Corporation WR-5931
-
Page 1: Quick Install Guide
Quick Install Guide WR-5931| AC2600 Wireless Router G E T T I N G T O K N O W Y O U R A C 2 6 0 0 W I R E L E S S R O U T E R... - Page 2 D E V I C E S E T U P Confirm the following are completed prior to Step 1: Make Sure This Switch is Set to “RT” Insert Your Laptop/PC via Ethernet Cable (or connect via WPS Wireless) Insert Modem via Ethernet Cable Plug your Power Here Type http:192.168.2.2...
- Page 3 Select the time zone of the area where you live and then click ‘NEXT’. Select the broadband type of Internet connection you are using (Cable/Satellite/Other Modem: Select Dynamic IP [i.e. DHCP]; DSL Modem: Select PPPoE). If you selected Dynamic IP [i.e. DHCP], then press ‘OK’. If you selected PPPoE, then type in the DSL gateway’s username and password provided by your service provider, then press OK.
- Page 4 7. Click ‘APPLY’. When you see the System Restarting message, it means the router will be ready with new settings within 40 seconds. Upon restarting, your router will be ready for use. Y O U R W I R E L E S S R O U T E R I S R E A D Y T O U S E ! A D D I T I O N A L I N F O R M A T I O N Note: For instructions on advanced features such as customizing your router name, setting up the router in Access Point mode, and more, visit...
