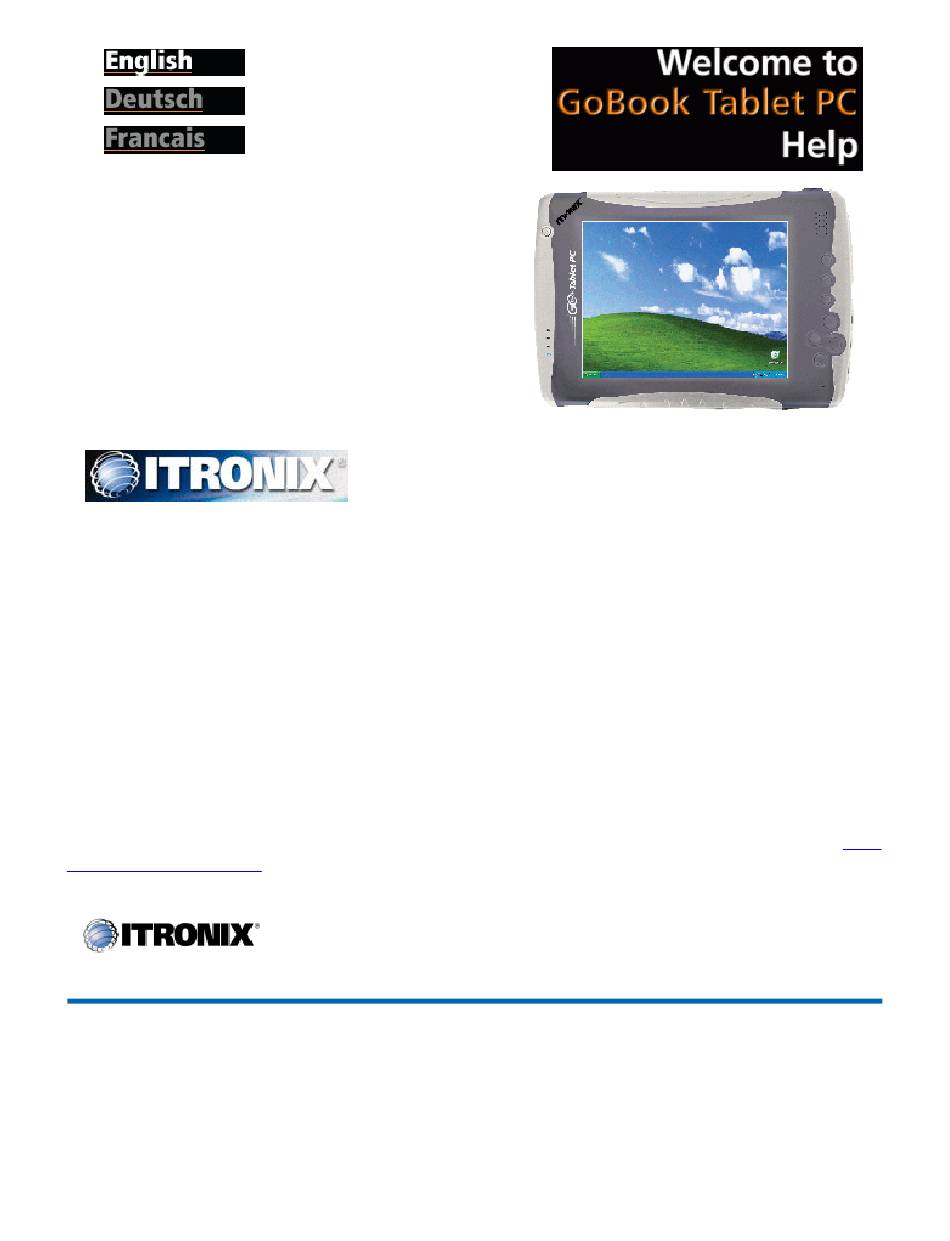

GoBook Tablet PC Help

Page 1 of 64

Getting Started

Congratulations on your purchase of the Itronix GoBook Tablet PC! Your new GoBook Tablet PC

features the most innovative advances in portable computing technology. It combines state-of-the-art

ergonomics, patented RF technology, and a rugged, durable architecture to provide you with a Tablet PC

that is compact, powerful, and easy to use virtually anywhere.

Designed for a wide range of business productivity applications, the GoBook Tablet PC is an ideal

choice for mobile workers who are on the go throughout the day. It offers flexibility, durability and

dependability along with ruggedness and portability to make it quick and easy to transport to any work

location, indoors, outdoors, or in your vehicle.

This online document, GoBook Tablet PC Help, contains all the information you need to set up and use

your new GoBook Tablet PC. It describes all the features of the GoBook Tablet PC in an easy-to-read

yet thorough manner. For information on printing, navigating or using GoBook Tablet PC Help see

How

to Use This Help

System. To optimize readability we recommend you view this document in landscape

orientation.

GoBook® Tablet PC Help

Unpacking Your System

After opening the package, carefully inspect the contents. Contact your dealer if any items are missing

or appear damaged. The shipping carton should contain the following:

STANDARD

file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~...

2/23/2004

Table of Contents

Need help?

Do you have a question about the GoBook and is the answer not in the manual?

Questions and answers

Summary of Contents for Itronix GoBook

Page 1 This online document, GoBook Tablet PC Help, contains all the information you need to set up and use your new GoBook Tablet PC. It describes all the features of the GoBook Tablet PC in an easy-to-read yet thorough manner.
Page 2 GoBook Tablet PC Help Page 2 of 64 8.4” SVGA TFT Active Matrix Color Display Seven (7) Hot keys 56K V.92 Fax/Modem 10/100 Mbit Ethernet Li-Ion Battery Two (2) USB 2.0 Ports RJ11 Jack RJ45 Jack PC Card Slots: a...
Page 3 This Help System describes the key elements of your computer. Be sure to read it thoroughly before you begin using your GoBook Tablet PC and refer to whenever needed. It includes a table of contents, search function, index and glossary to make finding the information you need quick and easy. See to Use this Help System for information about navigating, printing or otherwise using this document.
Page 4 Hot keys or function keys allow you to suspend your computer, navigate, and give you easy control of your display. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long...
Page 5 Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat On the bottom of the GoBook Tablet PC, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local...
Page 6 Calibrating the Digitizer Touch Panel Tips for New Owners Read the Troubleshooting section for common questions and answers about the GoBook Tablet PC. Take the Windows tutorials. Select Get Going with Tablet PC from the Start Menu. Take responsibility for backup Back up files often.
Page 7: Startup Problems
© 2003-2004 Itronix Corporation. All rights reserved. Getting Familiar with Your Tablet PC The Itronix GoBook Tablet PC is a ruggedized , weather-sealed Tablet PC system built for the demanding environment of the mobile worker. Designed for use by mobile workers, this computer is a superior work tool for collecting, managing, and communicating information in the field.
Page 8 GoBook Tablet PC Help Page 8 of 64 The following diagrams and descriptions provide an overview of your GoBook Tablet PC. This document uses the landscape view as the default orientation of your GoBook Tablet PC. Hover your cursor over the pictures to see feature descriptions or link to more information.
Page 9 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help Hot Keys The GoBook Tablet PC has seven function or hot keys to speed common functions. Hover the cursor over each hot key on the picture to see a description. file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~...
Page 10 GoBook Tablet PC Help Page 10 of 64 1. Function Key 5. Escape Key 2. Line Up Key 6. Security Key 3. Line Down Key 7. Rotate Key 4. Enter Key Hot Key Description Function Key (Fn) Press this key in...
Page 11: Led Status Indicators
Fn + Rotate Display brightness up Power Button Additionally, the GoBook Tablet PC has a power button located at the top left corner above the display. Press this button to suspend or turn the unit on or off. 72_0111_007 13 February 2004 ©...
Page 12: Display And Pen Basics
Press FN+Rotate to increase brightness and press FN+Security to decrease brightness. Use the digitizer pen /stylus provided with your GoBook Tablet PC like you would use a mouse on a desktop PC. The following common mouse functions can all be performed with your pen: Single-click: Tap once with the pen Double-click: Tap twice with the pen.
Page 13: Disk Drives
The operating system and most programs are stored here. Your GoBook Tablet PC identifies the hard disk drive as drive C. Optional External Drives The GoBook Tablet PC has PC Card slots in addition to three external drive options.
Page 14 Calculate memory size by adding the size of the memory module to the existing built-in memory. For example: 128 MB (module) + 128 MB (built-in memory) = 256 MB Total. If you add memory to your GoBook Tablet PC it will automatically detect the change in capacity when it restarts.
Page 15: Pc Card Slots
2. Windows: Right click on my computer and select properties. The bottom of the system Properties General tab lists the memory detected by Windows. For information on adding memory to your GoBook Tablet PC, contact your supervisor or your organization’s help desk.
Page 16: Right Side Connectors
Your GoBook Tablet PC can use Type 1 Compact Flash cards for secure data storage. If you store any user-installed application programs and associated data on Compact Flash, these programs and this data will not be lost after a hard reset.
Page 17 5 Compact Flash Slot Use this slot to insert a compact flash card. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help Bottom Edge Connectors 1 Extension Slot Use this Multi-IO extension slot with the Desk Mount or the Vehicle Dock.
Page 18: Top Connectors
Your computer has a Security Slot that can be used with a standard laptop locking device, such as a Kensington Lock. You can connect the GoBook Tablet PC to a large object with the lock to prevent theft of your Tablet PC. See the documentation that comes with your lock for more information.
Page 19: Back Connectors
Tablet PC. See the documentation that comes with your lock for more information. 4 Master Reset Key Use the end of a paper clip in this hole to perform a reset of your GoBook Tablet PC. You will then need to press the power button to restart the computer.
Page 20: Bluetooth Radio (Optional)
Use only the supplied or an approved antenna(s). Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Your GoBook Tablet PC has an On/Off button on the back for the integrated WLAN and Bluetooth radios.
Page 21: Wlan Radio (Optional)
Page 21 of 64 WLAN Radio (optional) The GoBook Tablet PC has an integrated 802.11b WLAN radio option. Its typical range is 100 to 300 meters in open spaces and 30 to 100 meters indoors. An internal antenna is provided for the WLAN...
Page 22: Improving Radio Coverage
GoBook Tablet PC Help Page 22 of 64 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help Improving Radio Coverage Wireless connectivity between radio-equipped portable terminals and host computers is unique and maintaining this wireless connectivity over a wide area is fundamental to the usefulness of the network.
Page 23 © 2003-2004 Itronix Corporation. All rights reserved. Power Management The Itronix GoBook Tablet PC uses dynamic power management ( DPM ) so you can reduce the amount of energy used, especially during periods of inactivity. Effective use of power management options can greatly conserve and extend your battery life.
Page 24: Battery Calibration
Battery Calibration will take from 10 to 16 hours, depending on how much power the battery may already contain. NOTE For optimum performance, we recommend calibrating the battery and optional secondary battery every three months. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... 2/23/2004...
Page 25: Battery Charging
Use of external devices, the media bay and wireless radio causes increased battery consumption. If a second external battery is attached to your GoBook Tablet PC, this battery will begin charging once the main battery is fully charged.
Page 26 "management" of the battery are also kept in the battery's memory. The life expectancy will depend strongly on the care of the battery, the individual usage pattern and the GoBook Tablet PC specific configuration. CAUTION Shutdown the computer and remove from external power before removing the battery to prevent potential loss of data.
Page 27: Power Saving Modes
NOTE Do not restart the computer until you have connected to an AC adapter, or replaced the discharged battery with a charged battery. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help Power Saving Modes file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~...
Page 28 GoBook Tablet PC Help Page 28 of 64 Adjust the default power management settings by going to Control Panel, Power Options. Power Button On the Advanced tab of Power Options the Power buttons dialog box allows you to set different actions to take when the power button is pressed. You may have the Tablet PC standby, hibernate, or you can shut down the computer altogether.
Page 29: Battery Replacement
Decreasing display brightness can also save power. Decrease brightness by pushing FN+Security. Increase it by pushing FN+Rotate. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help Battery Replacement Replacing the Main Battery Over time, the battery’s capacity gradually decreases. We recommend that you replace your battery when you notice that it begins to store significantly less charge.
Page 30 9. Install the secondary battery if equipped. CAUTION The GoBook Tablet PC should always be shut down prior to removal of the battery, as there is a possibility that data may be lost when the unit shuts down by removing the battery.
Page 31: Desk Mount
Your system vendor may be able to recommend reliable brands and models. GoBook® Tablet PC Help Desk Mount The GoBook Tablet PC's desk mount enables you to experience desktop functionality with your GoBook Tablet PC. The desk mount includes the following...
Page 32 GoBook Tablet PC Help Page 32 of 64 3. 2 USB 1.1 ports 4. Extra Battery Charging Slot 5. 15-pin CRT port for External Monitor To use the desk mount: 1. Ensure the port cover on the extension slot is open and the port cover for the AC power is closed.
Page 33: Vehicle Adapter
GoBook Tablet PC Help Page 33 of 64 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help Vehicle Adapter The Vehicle Adapter is an optional device that supplies power from the vehicle battery to operate the computer and charge the battery installed in the unit.
Page 34: Surge Protection
This section provides guidelines for selecting a quality surge suppressor to be used with your GoBook Tablet PC, and it helps identify a few sources for products with acceptable performance. Selecting the Right Surge Protection Consider the level of quality you need when selecting a surge suppressor.
Page 35 The devices that will be attached to the computer also need to be surge protected. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. Maintenance and Storage The Itronix GoBook Tablet PC is ruggedized and weather resistant. Handle...
Page 36: Battery Maintenance And Storage
Avoid exposing batteries to extremely hot or cold temperatures for long periods. To prevent possible damage to the battery, the GoBook Tablet PC does not allow the battery to charge if the internal temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122°...
Page 37 GoBook Tablet PC Help Page 37 of 64 Tablet PC Maintenance and Storage Maintaining Your Tablet PC Follow these guidelines to help maintain the condition and performance of your computer. Turn off the computer when you are not using it.
Page 38 GoBook Tablet PC Help Page 38 of 64 External Power Connector The external power connector may sometimes be exposed to moisture and/or contamination causing an unreliable connection to the external power source. Clean the connector using a cotton swab dipped in isopropyl alcohol.
Page 39: Using The Bios Setup Utility
Customizing Your BIOS Settings This chapter explains how to use the Setup Utility to modify the BIOS settings. The Setup Utility displays and allows modification of the GoBook Tablet PC components and the configuration of devices that are connected to it. This information is used to test and initialize components at start-up time and to make sure everything runs properly when the system is operating.
Page 40 GoBook Tablet PC Help Page 40 of 64 Starting the BIOS Setup Utility You can only start the Setup Utility shortly after the computer has been turned on. A green Setup box appears on the lower right corner of the computer display.
Page 41 NOTE The field help window refers to keys that are only available via an external keyboard. If you do not have an external keyboard attached to your GoBook Tablet PC use the Setup utility's popup input panel file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... 2/23/2004...
Page 42: The Main Menu
The General Help Window describes the popup input panel keys and their functions. You can access it by selecting F1on the popup input panel. However, the following keys are not available during Setup unless you have an external USB keyboard attached to the GoBook Tablet PC: HOME F2/F3...
Page 43: The Advanced Menu
Configure system date Digitizer Calibration Opens Display Calibration Begins the digitizer calibration. Once you have calibrated the display the computer will restart. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help The Advanced Menu file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... 2/23/2004...
Page 44 GoBook Tablet PC Help Page 44 of 64 Field Setting Function IDE Configuration sub-menu Configure the IDE device(s). Legacy USB Support Disabled Enables support for legacy Enabled USB. Auto option disables Auto legacy support if no USB devices are connected...
Page 45 GoBook Tablet PC Help Page 45 of 64 Field Setting Function OnBoard PCI IDE Controller Disabled Disabled: disables the Primary integrated IDE Controller. Secondary Primary: enables only the Both Primary IDE Controller. Secondary: enables only the Secondary IDE Controller. Both: enables both IDE Controllers.
Page 46 GoBook Tablet PC Help Page 46 of 64 accessed through BIOS IDE Detect Time Out (Sec) Select the time out value for detecting ATA/ATAPI device ATA(PI) 80Pin Cable Host & Device Select the mechanism for Detection Host detecting 80Pin ATA(PI) Device Cable.
Page 47 GoBook Tablet PC Help Page 47 of 64 Field Setting Function Type Not Installed Select the type of device Auto connected to the system CDROM ARMD LBA/Large Mode Disabled Disabled: Disables LBA Mode. Auto Auto: Enables LBA Mode if the device supports it and the device is not already formatted with LBA Mode disabled.
Page 48: The Boot Menu
Reporting Technology. 32Bit Data Transfer Disabled Enable/Disable 32-bit Data Enabled Transfer 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help The Boot Menu Field Setting Function 1st Boot Device Removable Dev. Specifies the boot sequence ATAPI CDROM from the available devices.
Page 49: The Security Menu
PM-IC25N030ATCS04- Realtek Boot Agent Disabled 4th Boot Device Removable Dev. same as above ATAPI CDROM PM-IC25N030ATCS04- Realtek Boot Agent Disabled 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help The Security Menu file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... 2/23/2004...
Page 50: The Exit Menu
Install or Change the password NOTE After inserting a password you have the option to set the password to Always or SCU. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help The Exit Menu file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... 2/23/2004...
Page 51 © 2003-2004 Itronix Corporation. All rights reserved. Troubleshooting This section is designed to help you determine and fix problems you might encounter while operating the GoBook Tablet PC. Try the following things in order: First look through the categories in this section for a solution.
Page 52: For More Help
GoBook Tablet PC Help Page 52 of 64 online help that comes with the application to find a solution. If you still cannot resolve your problem, contact the help desk at your organization. For More Help Windows Help is already installed on your system. To access this...
Page 53 GoBook Tablet PC Help Page 53 of 64 Some applications do not display or work properly in portrait orientation due to the rugged nature of your GoBook Tablet PC's display screen. Use these applications in landscape orientation. 72_0111_007 13 February 2004 ©...
Page 54 GoBook Tablet PC Help Page 54 of 64 wait several seconds, and then install it again. If the battery does not begin charging within several minutes, return the unit for service. The batteries take much longer than seven hours to charge Under moderate temperatures, about 21°C (70ºF), the computer’s...
Page 55 GoBook Tablet PC Help Page 55 of 64 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help Display The display performance is slow The temperature may be too cold. Move the computer to a warmer operating environment.
Page 56 For best visibility, use these applications in landscape orientation. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help Hard Disk The hard disk will not spin up so the computer can’t boot up This occurs if the unit is exposed to extreme low temperatures.
Page 57: Landline Modems
GoBook Tablet PC Help Page 57 of 64 GoBook® Tablet PC Help Landline Modems The modem doesn’t work When you first try to use HyperTerminal or similar application , the system responds with a message asking if you want to install the modem.
Page 58 Connect external power to charge the battery if it is not charged. If you are using the AC adapter , check the electrical outlet you are using to make sure it is working properly. If the GoBook Tablet PC does not turn on, restart the computer by file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... 2/23/2004...
Page 59 10 seconds and then release If the Power Button does not work to reset the unit, press the Master Reset Key on the back side of your GoBook Tablet PC. The computer won’t turn off Press and hold the Power Button for at least 10 seconds.
Page 62 Control Panel from the Start Menu. Then select the Settings page in Display Properties. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. GoBook® Tablet PC Help FAQs How do I calibrate the pen? 1. From the Start Menu, select Control Panel.
Page 63 How do I optimize the GoBook Tablet PC for left handed use? You can change the screen orientation 90°, 180°, or even 270°. See the answer to "How do I change the display orientation?" above. You can also change the hand strap on the back of the Tablet PC for the use that best suits you.
Page 64 GoBook Tablet PC Help Page 64 of 64 handed under the Handedness option and under the Menu location. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... 2/23/2004...
