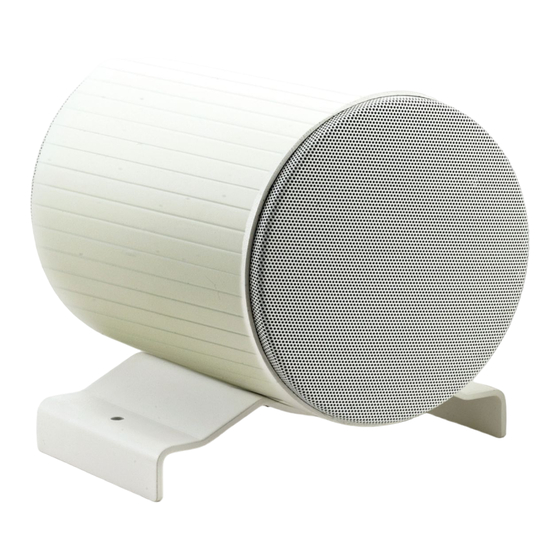

Toa PJ-202DL-EB Instruction Manual

BI-DIRECTIONAL PROJECTION
SPEAKER
Thank you for purchasing TOA's Projection Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ......................... 1
2. GENERAL DESCRIPTION
AND FEATURES ........................................ 2
3. INSTALLATION ......................................... 3
4. DIMENSIONAL DIAGRAM ......................... 4

1. SAFETY PRECAUTIONS

 Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
 Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
 After reading, keep this manual handy for future reference.
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
When Installing the Unit
 Refer all installation work to the dealer from whom
the speaker was purchased. Installation work
requires extensive
experience. The speaker may fall off if incorrectly
installed, resulting in possible personal injury.
 Install the speaker only in a location that can
structurally support the full weight of the unit and
mounting bracket. Doing otherwise may result in
the speaker falling down and causing personal
injury and/or property damage.
 Since the unit is designed for in-door use, do not
Traceability Information for Europe (EMC directive 2004/108/EC)
Manufacturer:
TOA Corporation
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
technical knowledge
5. POLAR PATTERN ....................................... 4
6. FREQUENCY RESPONSE (1 W, 4 m) ....... 5
7. SPECIFICATIONS ....................................... 5
5
install it outdoors. If installed outdoors, the aging of
the parts causes the unit to fall off, resulting in
personal injury. Also, when it gets wet with rain,
there is a danger of electric shock.
 Do not use other methods than specified to install
the speaker. Extreme force is applied to the
speaker and the speaker could fall off, possibly
resulting in personal injuries.
 Use screws that are appropriate for the ceiling's or
wall's material and structure. Failure to do so may
and
cause the speaker to fall, resulting in material
damage and possible personal injury.
 Ensure that all screws are securely tightened. If
they are loose after installation, the speaker could
fall down, possibly resulting in personal injury.
 Do not mount the speaker in locations exposed to
constant vibration. The speaker or its mounts can
be damaged by excessive vibration, potentially
causing the speaker to fall, which could result in
personal injury.
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
INSTRUCTION MANUAL
PJ-202DL-EB
........................6
