SX INSTALLER INSTRUCTIONS
1.1 Technical specifications ......................................................................... 2
1.2 SX heater dimensions ............................................................................ 3
2.1 Rules and regulations ............................................................................ 4
2.2 Diagram of a standard installation .......................................................... 4
2.3 Unpacking and checking of equipment .................................................. 5
2.4 Fixing of heaters .................................................................................... 5 to 6
2.5 Minimum safety distances ...................................................................... 7
2.6 Inclination of heaters .............................................................................. 7 to 8
2.7 Gas connection ...................................................................................... 9 to 10
2.8 Electrical connections ............................................................................ 10 to 11
2.9 Start-up .................................................................................................. 12 to 13
Manufacturer :
SBM
3 cottages de la Norge
21490 CLENAY - FRANCE

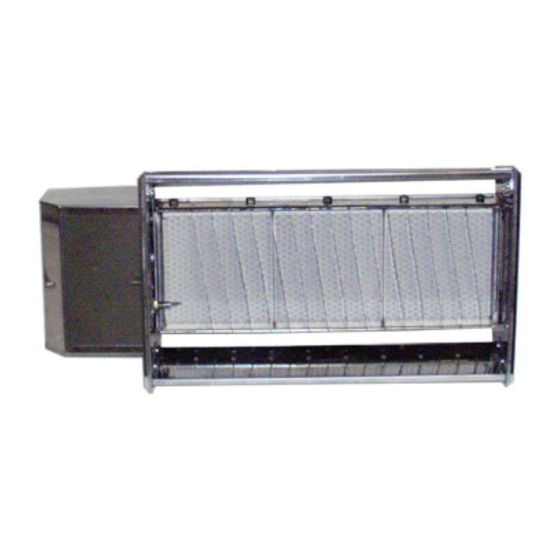

GAS INFRARED HEATERS
N° 05000045/5
Agent :
Pages
2 to 3
Pages
4 to 13
Page
14
Page
15
Pages
16 to 19
Page
19
1
Advertisement
Table of Contents
Related Manuals for SBM SX Series
Summary of Contents for SBM SX Series
-
Page 1: Table Of Contents
GAS INFRARED HEATERS SX INSTALLER INSTRUCTIONS N° 05000045/5 1. PRODUCT SPECIFICATION Pages 2 to 3 1.1 Technical specifications ................. 2 1.2 SX heater dimensions ................3 2. INSTALLATION Pages 4 to 13 2.1 Rules and regulations ................4 2.2 Diagram of a standard installation ............4 2.3 Unpacking and checking of equipment .......... -
Page 2: Product Specification
1. PRODUCT SPECIFICATION 1.1 Technical specifications : GAS : Air / Butane (Hi = 10.5 kWh/m MODEL Weight (kg) 12.2 Net calorific value 3.80 6.75 7.60 13.50 27.00 Qn (kW) Hi Inlet pressure 37 mbar Injection pressure (mbar) Gas consumption (kg/h) 0.645 1.145 1.290... -
Page 3: Sx Heater Dimensions
1.2 SX heater dimensions : B6, B8, B10, B12 and B16 SX 147 172 MODEL B6-SX B8-SX B10-SX B12-SX B16-SX A (mm) B (mm) C (mm) B20, B20-2, B24, B24-2, B32 and B32-2SX 147 172 MODEL B20-SX B20-2SX B24-SX B24-2SX B32-SX B32-2SX A (mm) B (mm) C (mm) -
Page 4: Installation
The ideal level of ventilation for the premises is 10 m /h per kW of heating installed. 2.2 Diagram of a standard installation. Individual valve Regulator Electrical junction box Solenoid valve SBM infrared heater Prewired plug Electrical cable (3-conductor insulated with ground) Sensor Control unit Gas filter... -
Page 5: Unpacking And Checking Of Equipment
B32-SX / B32-2SX 4.50 B64-2SX 5.50 MINIMUM COMFORT HEIGHTS : refer to the specific SBM study for each project. Examples of fixtures to be supplied by the installer: FOR TYPE B6, B8, B10, B12 and B16 SX HEATERS Steel tube 3/4"... - Page 6 FOR TYPE B20, B20-2, B24, B24-2, B32 and B32-2SX HEATERS Steel tube 3/4" (not supply by SBM) SBM infrared heater Anchoring plate (not supply by SBM) Fixed regulator + valve (not supply by SBM) RP3 or RP32 (supplied by SBM)
-
Page 7: Inclination Of Heaters
2.5 Minimum safety clearances (Inflammable materials : = 70°C) HEATED AREA min. 0,6 m min. Min. min. (*) HEATED AREA (*) For minimum 20° inclination Where safety clearances cannot be respected, heat-protection must be provided above heater. 2.6 Inclination of heaters ... - Page 8 For B64-2SX For B20-2SX, B24-2SX and B32-2SX with lateral inclination. ALWAYS LIGHT THE TOP BURNER FIRST. 100% OPERATION OPERATION...
-
Page 9: Gas Connection
2.7 Gas connection BEFORE INSTALLATION, CHECK THAT LOCAL CONDITIONS OF SUPPLY, GAS TYPE / PRESSURE AND EQUIPMENT SETTINGS ARE COMPATIBLE. Gas piping must not : - be located in the heated area around a heater (see diagram below). - produce any stress on the injector block. (Use preferably a metalic flex 12 Gf) HEATED AREA HEATED... -
Page 10: Electrical Connections
LOW PRESSURE GAS SUPPLY The gas supply pressure is identical to the heater operating pressure (see table on page 2). GAS SUPPLY PRESSURE Air / Butane 37 mbar (*) * acceptable total pressure loss : approx. 1 mbar. SOLENOID VALVE (NC = Normally Closed) OR MAIN VALVE SX HEATER... - Page 11 EARTH blue wire: NEUTRAL brown wire: LIVE Control unit to sensor Use the sensor cable supplied by SBM. (in 20m, 60m or 300m rolls) Number of RP3 units: 1 RP3 per type B6, B8, B10, B12, B16, B20, and RP32 B24 and B32 heater.
-
Page 12: Start-Up
2.9 Start-up Gas-tightness test for industrial installations : (see diagram on next page) a) Ensure that the installation is at a pressure (nitrogen or dry air) equal to 1.5 times the gas operating pressure. b) Turn off the nitrogen or dry air supply and wait 15 minutes for the pressure to stabilise. c) Check the pressure on the pressure gauge. - Page 13 First start-up a) Preliminary checks: * calibration of control unit fuses. * ground-fault breaker operation ("TEST" button). b) Initial settings: * main gas valve closed. * individual valves open. * ground-fault breaker set to "ON". * thermostat or programmable controller set to correct temperature setting. c) Ignition * manual operation - open the main gas valve.
-
Page 14: Receipt Of Installation
3. RECEIPT OF INSTALLATION TO BE PERFORMED BY THE INSTALLER IN THE PRESENCE OF THE CUSTOMER. Check that the gas type and pressure comply with the type of heater installed (see rating plate) Check that an individual valve is installed prior to each heater. ... -
Page 15: Maintenance
4. MAINTENANCE LIST OF OPERATIONS TO BE PERFORMED DURING THE ANNUAL MAINTENANCE VISIT. Removal of dust from heaters - on site, without disassembly, heaters off and cold. JOINTS COMPRESSED AIR : 3 to 5 bar MAX. DO NOT BLOW AIMING AT JOINTS BETWEEN CERAMIC PLATES ... -
Page 16: Repairs
5. REPAIRS Problems on a single heater. ONE HEATER LIGHTS ONE HEATER AND GOES OUT AFTER DOES NOT LIGHT 45 seconds Check that No spark Spark thermocouple is properly tightened Check individual valve Check RP3 -RP32 fuse (open?) Replace thermocouple Check gas flow throught Check screw tightness the injector block... - Page 17 Problems on a group of heaters. First, check compatibility of heaters with the A GROUP OF HEATERS gas type and pressure. DO NOT LIGHT Spark No spark Control module Control module Check main gas valve open Module displays : Module displays : Check power supply (Main breaker)
- Page 18 Problems on a group of heaters (cont.). A GROUP OF HEATERS DO NOT STOP First, check that the temperature setting is lower than ambient temperature. Check setpoint and programming of the module Check module set to OFF : MT = - MTH = 0% Check zero voltage at solenoid valve module...
-
Page 19: Changing The Gas Used
Thermocouple Earth pin Injector block BA block brackets (X 2) BA block Igniter Anchoring nut 6. CHANGING THE GAS USED For all changes in the gas used, contact your SBM agent.
