Veris TC Series Installation Manual

Installation Guide
Temperature
TS
TC
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• Read and understand the instructions before installing
this product.
• Turn off all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
No responsibility is assumed by Veris Industries for any consequences arising out of the
use of this material.
Z205468-0D Page 1 of 2
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

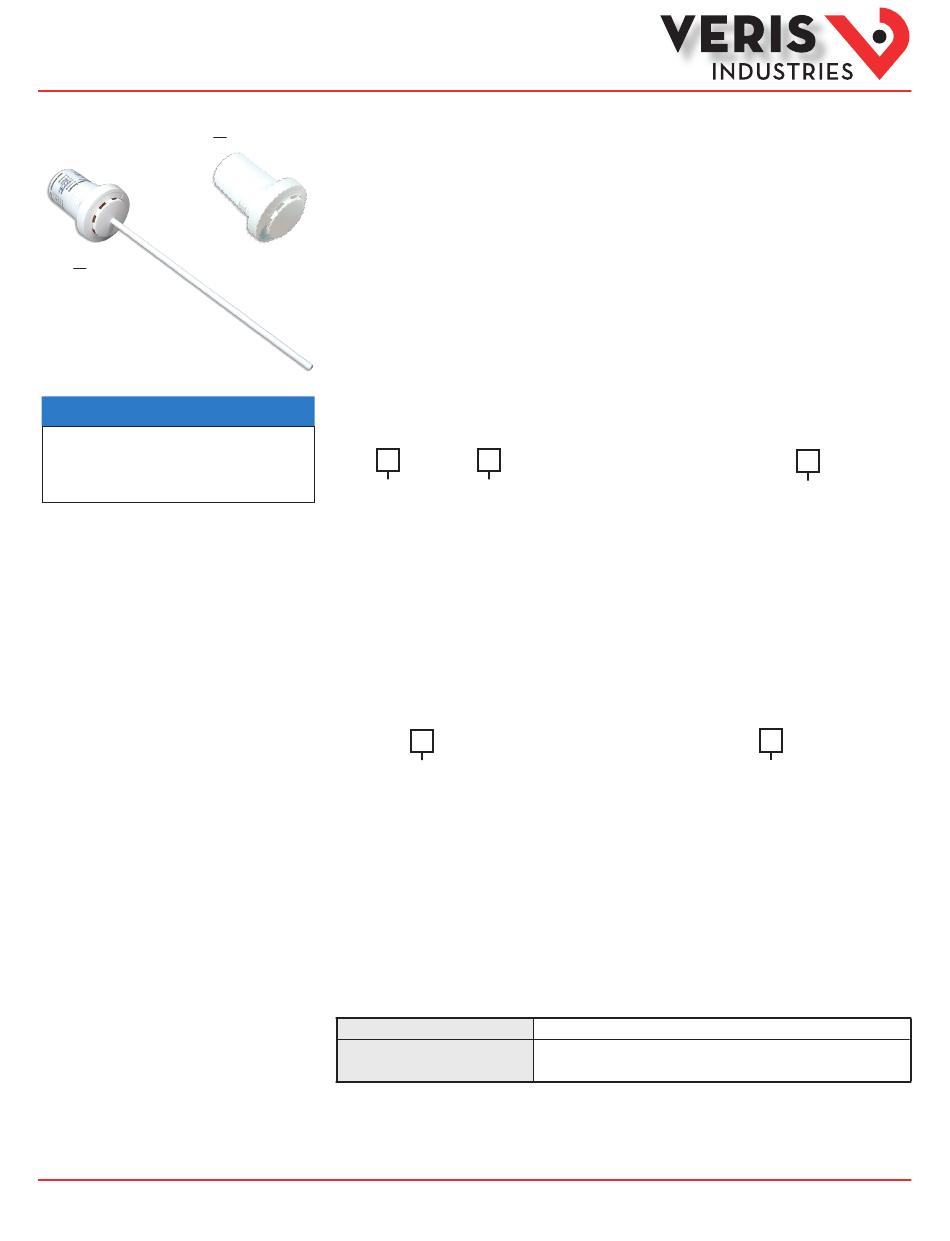

Ceiling Mounted Temperature Sensors

Product Overview

TC and TS ceiling mounted temperature sensors monitor the temperature of the air in a room. The design is ideal for
large open spaces, such as open office environments. The TC comes with a variable length temperature probe, and
the TS has a recessed design. Both models have resistive outputs compatible with building control systems. Both
models are warranted for a period of five years.

Product Identification

Probe Length
TC
B = 4" (102mm)
C = 6" (152mm)
D = 8" (203mm)
E = 12" (305mm)
F = 18" (457mm)
G = 24" (610mm)
Sensor Type
TS
B = 100R platinum, RTD
C = 1k platinum, RTD
D = 10k T2, Thermistor
E = 2.2k, Thermistor
F = 3k, Thermistor
G = 10k CPC, Thermistor
H = 10k T3, Thermistor
I = 1k Balco (Nickel-iron) RTD
J = 10k Dale, Thermistor
K = 10k w/11k shunt, Thermistor
M = 20k NTC, Thermistor

Specifications

©2013 Veris Industries
Other companies' trademarks are hereby acknowledged to belong to their respective owners.
TC/TS Series
Sensor Type
B = 100R platinum, RTD N = 1800 ohm, Thermistor
C = 1k platinum, RTD R = 10k US, Thermistor
D = 10k T2, Thermistor S = 10k 3A221, Thermistor
E = 2.2k, Thermistor T = 100k, Thermistor
F = 3k, Thermistor U = 20k "D", Thermistor
G = 10k CPC, Thermistor W = 10k T2 high accuracy, Thermistor
H = 10k T3, Thermistor Y = 10k T3 high accuracy, Thermistor
J = 10k Dale, Thermistor Z = 10k E1, Thermistor
K = 10k w/11k shunt, Thermistor CC = 15k, Thermistor
M = 20k NTC, Thermistor
N = 1800 ohm, Thermistor
R = 10k US, Thermistor
S = 10k 3A221, Thermistor
T = 100k, Thermistor
U = 20k "D", Thermistor
W = 10k T2 high accuracy, Thermistor
Y = 10k T3 high accuracy, Thermistor
Z = 10k E1, Thermistor
CC = 15k, Thermistor
Wiring 22 AWG; 2-wire RTD/Thermistor
Housing White ABS Plastic
(Black plastic available for TS, consult factory)
TM
Cal Certificate
0 = None
1 = 1 point Cal validation
2 = 2 point Cal validation
Cal Certificate
0 = None
1 = 1 point Cal validation
2 = 2 point Cal validation
08131
