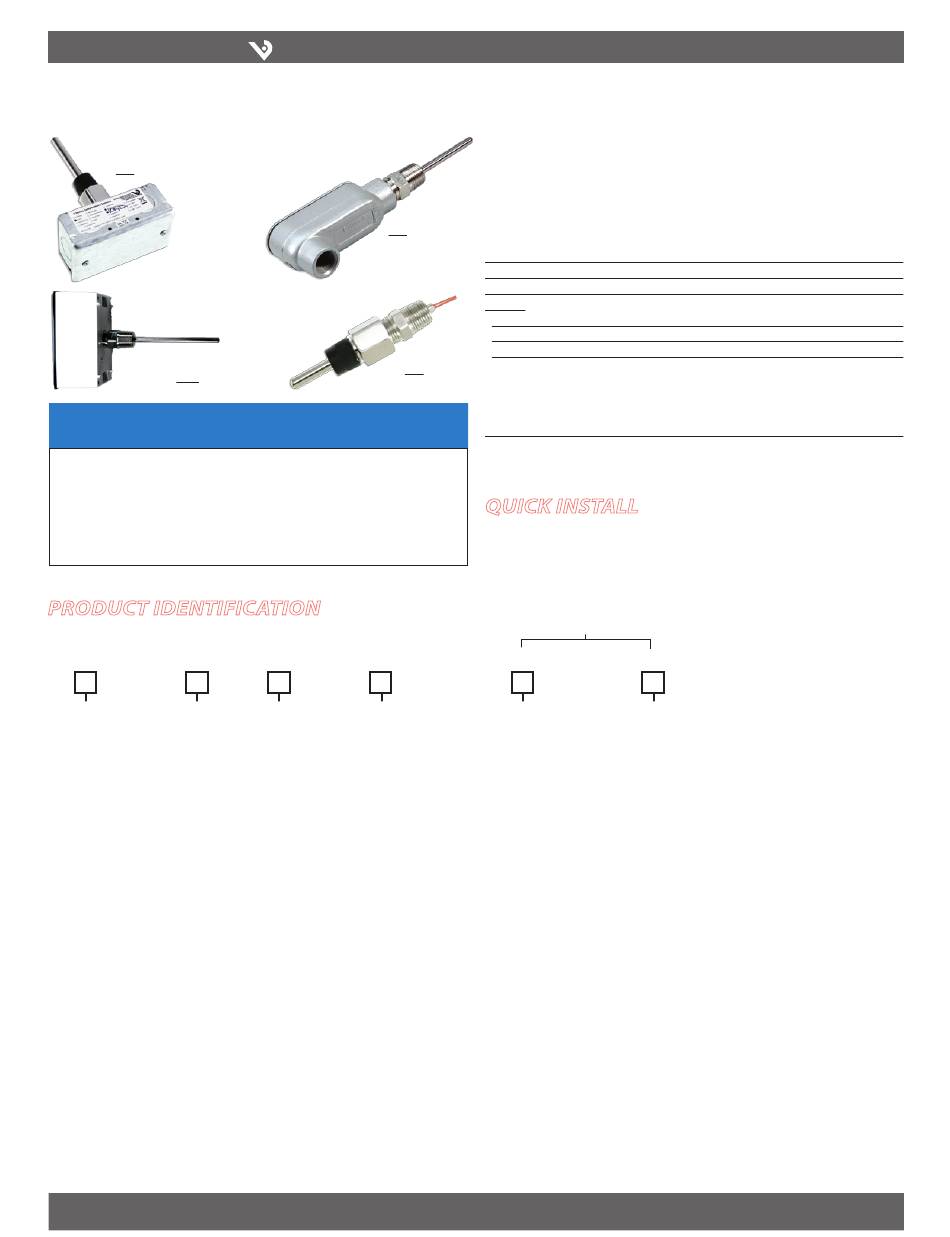

Veris TI Series Installation Manual

VERIS INDUSTRIES
TI SerIeS
TID
TIW
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• Read and understand the instructions before installing
this product.
• Turn off all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
Product IdentIfIcatIon
Immersion Probe
Enclosure Length "L"
T I
D = Duct A = 2 1/2" (64mm)
G = Service Entry Body B = 4" (102mm)
H = Threaded NPT Only C = 6" (152mm)
W = Water resistant D = 8" (203mm)
housing E = 12" (305mm)
Thermowell Sizing
Probe Length Thermowell Length
A (2 1/2") (64mm) 1 1/2" (38mm)
B (4") (102mm) 3" (76mm)
C (6") (152mm) 5" (127mm)
D (8") (203mm) 7" (178mm)
E (12") (305mm) 11" (279mm)
Z205466-0E PAGE 1
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
environmental SenSorS
™
TIG
TIH
Thermowell Sensor Type
0 = None B = 100R Platinum, RTD
1 = Add Thermowell C = 1k Platinum, RTD
D = 10k T2, Thermistor
E = 2.2k, Thermistor
F = 3k, Thermistor
G = 10k CPC, Thermistor
H = 10k, T3, Thermistor
J = 10k Dale, Thermistor
K = 10k w/11k shunt,Thermistor
M = 20k NTC, Thermistor
N = 1800 ohm, Thermistor
P = 10mV/°C, Linitemp
R = 10k US, Thermistor
S = 10k 3A221, Thermistor
T = 100k, Thermistor
U = 20k "D", Thermistor
©2009 Veris Industries USA 800.354.8556 or +1(0)503.598.4564 / support@veris.com
inStallation GUiDe
TI SerIeS
Immersion Temperature Sensors
Installer's Specifications
Wiring 22AWG; 2-wire:RTD Thermistor, 4-20mA; 3-wire: Voltage output models
Probe
Test Pressure
Linitemp:
Input Power
Output
Operating Temperature
Accuracy Calibration Error:
Error over Temperature:
*Room temperature error documented on each unit.
quIck Install
1. Thread assembly into a pipe fitting.
2. Wire as shown (see Wiring section).
Options
Cal Certificate Threads
0 = None Blank = NPT
1 = 1 point Cal validation A = BSPT
2 = 2 point Cal validation B = DIN 2999
Stainless Steel
1µA/°C or 10mV/°C
-25° to 105°C (-13° to 221°F)
1.5°C (35°F) typical; 2.5°C (37°F) max. at 25°C (77°F)*
1.8°C typical (35°F); 3.0°C (34°F) max.
over 0° to 70°C (32° to 158°F) range
2.0°C (35°F) typical, 3.5°C (38°F) max.
over -25° to 105°C (-13° to 221°F) range
200psi
5 to 30VDC
10091
