Danfoss VLT Decentral Drive FCD 302 Design Manual page 77

Application Examples

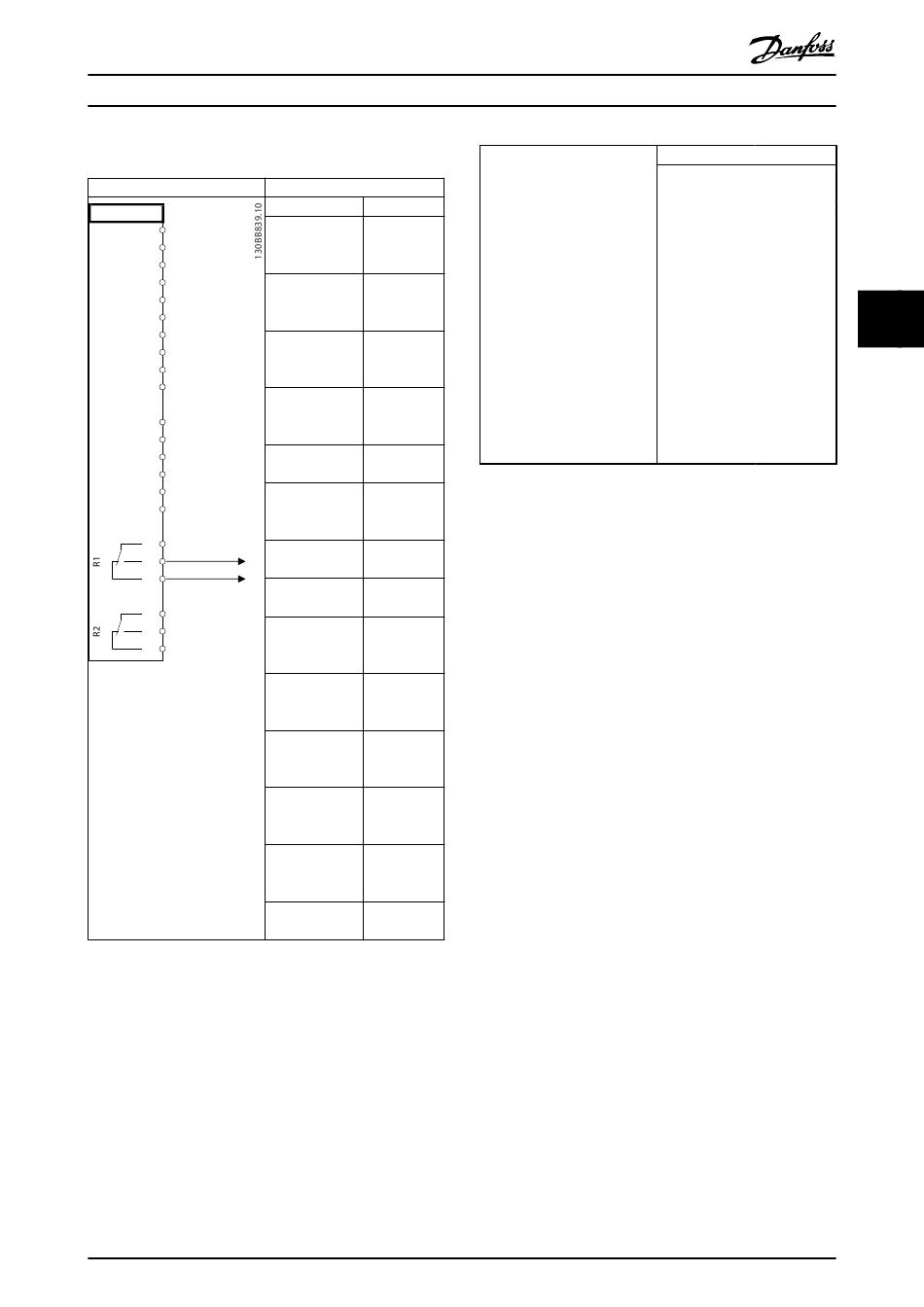

Application example
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06
Table 4.16 Using SLC to Set a Relay
MG04H302
Design Guide
Parameters
Function Setting
Parameter 4-30 [1] Warning
Motor Feedback
Loss Function
Parameter 4-31 100 RPM
Motor Feedback
Speed Error
Parameter 4-32 5 s
Motor Feedback
Loss Timeout
Parameter 7-00 S [2] MCB 102
peed PID
Feedback Source
Parameter 17-11 1024*
Resolution (PPR)
Parameter 13-00 [1] On
SL Controller
Mode
Parameter 13-01 [19] Warning
Start Event
Parameter 13-02 [44] Reset key
Stop Event
Parameter 13-10 [21] Warning
Comparator no.
Operand
Parameter 13-11 [1] ≈*
Comparator
Operator
Parameter 13-12 90
Comparator
Value
Parameter 13-51 [22]
SL Controller Comparator 0
Event
Parameter 13-52 [32] Set
SL Controller digital out A
Action low
Parameter 5-40 F [80] SL digital
unction Relay output A
Danfoss A/S © 05/2018 All rights reserved.
*=Default value
Notes/comments:
If the limit in the feedback
monitor is exceeded, warning
90 Feedback Mon. is issued. The
SLC monitors warning 90 and if
the warning becomes true,
relay 1 is triggered.
External equipment may then
indicate that service may be
required. If the feedback error
goes below the limit again
within 5 s, the frequency
converter continues and the
warning disappears. But relay 1
is still triggered until pressing
[Reset] on the LCP.
Table 4.17 Using SLC to Set a Relay
4 4
75
