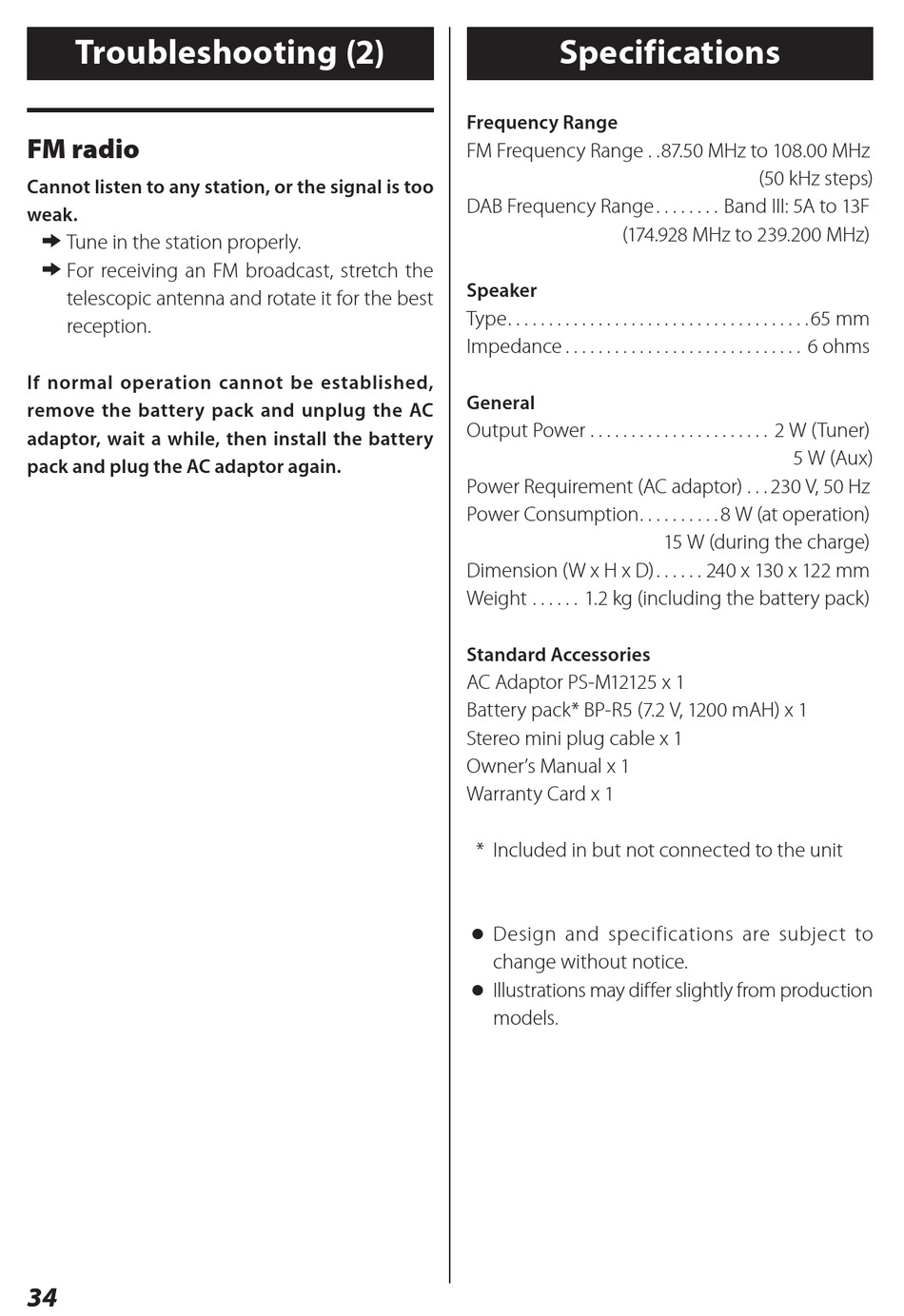

Specifications - Teac R-5DAB Owner's Manual

Troubleshooting (2)
FM radio
Cannot listen to any station, or the signal is too
weak.
e Tune in the station properly.
e For receiving an FM broadcast, stretch the
telescopic antenna and rotate it for the best
reception.
If normal operation cannot be established,
remove the battery pack and unplug the AC
adaptor, wait a while, then install the battery
pack and plug the AC adaptor again.
34 34

Specifications

Frequency Range
FM Frequency Range . .87.50 MHz to 108.00 MHz
DAB Frequency Range . . . . . . . . Band III: 5A to 13F
(174.928 MHz to 239.200 MHz)
Speaker
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 mm
Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 ohms
General
Output Power . . . . . . . . . . . . . . . . . . . . . . 2 W (Tuner)
Power Requirement (AC adaptor) . . . 230 V, 50 Hz
Power Consumption . . . . . . . . . . 8 W (at operation)
Dimension (W x H x D) . . . . . . 240 x 130 x 122 mm
Weight . . . . . . 1.2 kg (including the battery pack)
Standard Accessories
AC Adaptor PS-M12125 x 1
Battery pack* BP-R5 (7.2 V, 1200 mAH) x 1
Stereo mini plug cable x 1
Owner's Manual x 1
Warranty Card x 1
* Included in but not connected to the unit
< Design and specifications are subject to
change without notice.
< Illustrations may differ slightly from production
models.
(50 kHz steps)
5 W (Aux)
15 W (during the charge)
