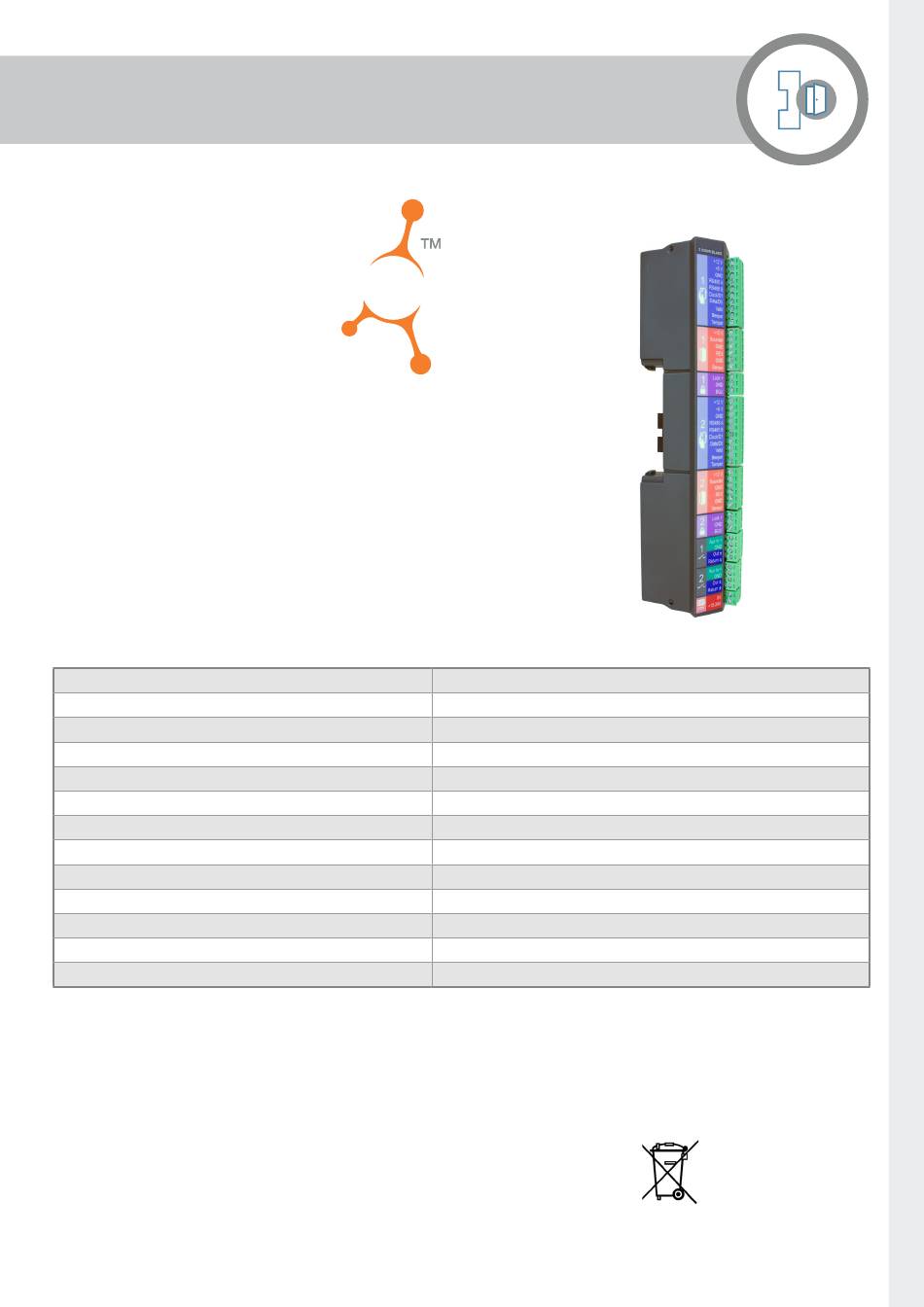

Janus C4 2-Door Blade
Installation Guide
Part number:
JC4-ADV-BL-2D
janus
The Janus C4 2-Door Blade is a plug-in unit that can
be purchased with either the Janus C4 Single-Blade
Controller (Part No: JC4-ADV-C2-SNG) or the Janus C4
Multi-Blade Controller (Part No: JC4-ADV-C2-MLT).
Each 2-Door Blade enables the connection of two readers
and two doors in Janus C4 access control systems.
Clearly labelled connectors simplify the task.
Specification
Overview
Lock Switching Capacity
Card Reader interface
Card Reader Supply, power limited
Tamper, Door Sensor, Exit Switch, Aux, Inputs
Break Glass Input
Sounder, Valid, Invalid Output
Aux Out
External Lock Input Supply
Operating Temperature
Humidity
Weight
Dimensions
Electromagnetic Compatibility
This product complies with the following standards,
following the provisions of EMC Directive 2014/30/EU:
EN 55022:2010 Class B
EN50130-4:2011 inc A1:2014
IEC 62599-2:2010
C4
Janus C4 2-Door Blade
12V/24V, 4A max (Solid State output, current limited)
Wiegand, Clock/Data, RS485
12V 500 mA, 5V 200 mA total (both ports)
5V pullup (2k2), max 12V in
24V max
500 max sink to GND (solid state), 12V max in
Isolated 30V, 300mA max, internally fused
24V max, 8A max. Must be externally fused
0 to +49°C (32 to 120°F)
5-85±5% at 30±2°C (86±4°F)
140 g
197 x 60 x 28 mm
WEEE
Please refer to www.grosvenortechnology.com/
legal-info/ for disposal instructions under EU Directive
2012/19/EU.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grosvenor Janus C4 Series
Summary of Contents for Grosvenor Janus C4 Series
- Page 1 Janus C4 2-Door Blade Installation Guide Part number: JC4-ADV-BL-2D janus The Janus C4 2-Door Blade is a plug-in unit that can be purchased with either the Janus C4 Single-Blade Controller (Part No: JC4-ADV-C2-SNG) or the Janus C4 Multi-Blade Controller (Part No: JC4-ADV-C2-MLT). Each 2-Door Blade enables the connection of two readers and two doors in Janus C4 access control systems.
- Page 2 Power Options Input Power External Lock Supply The Janus C4 2-Door Blade draws 12V power from the For systems with 24V door locks, or locks requiring more controller. The 2-Door Blade power draw is summed as power than the controller can provide, the 2-Door Blade follows: supports an external lock power supply.
- Page 3 Reader and Door Connections Reader Connections Advance Reader connections 2 DOOR BLADE +12 V +5 V +12 V +5 V RS485 A ADVANCE RS485 B RS485 A Clock/D1 RS485 B Data/D0 Clock/D1 Valid Beeper Data/D0 Door/ Tamper Valid Reader Beeper +12 V Sounder Tamper...
- Page 4 Lock and I/O Connections Lock Connections Auxiliary Input connections Fail Secure Lock Contact Only (no fault detection) Input switch A Fail Secure lock requires power to release the Aux In + lock. The door would remain locked in the case of a power failure.
