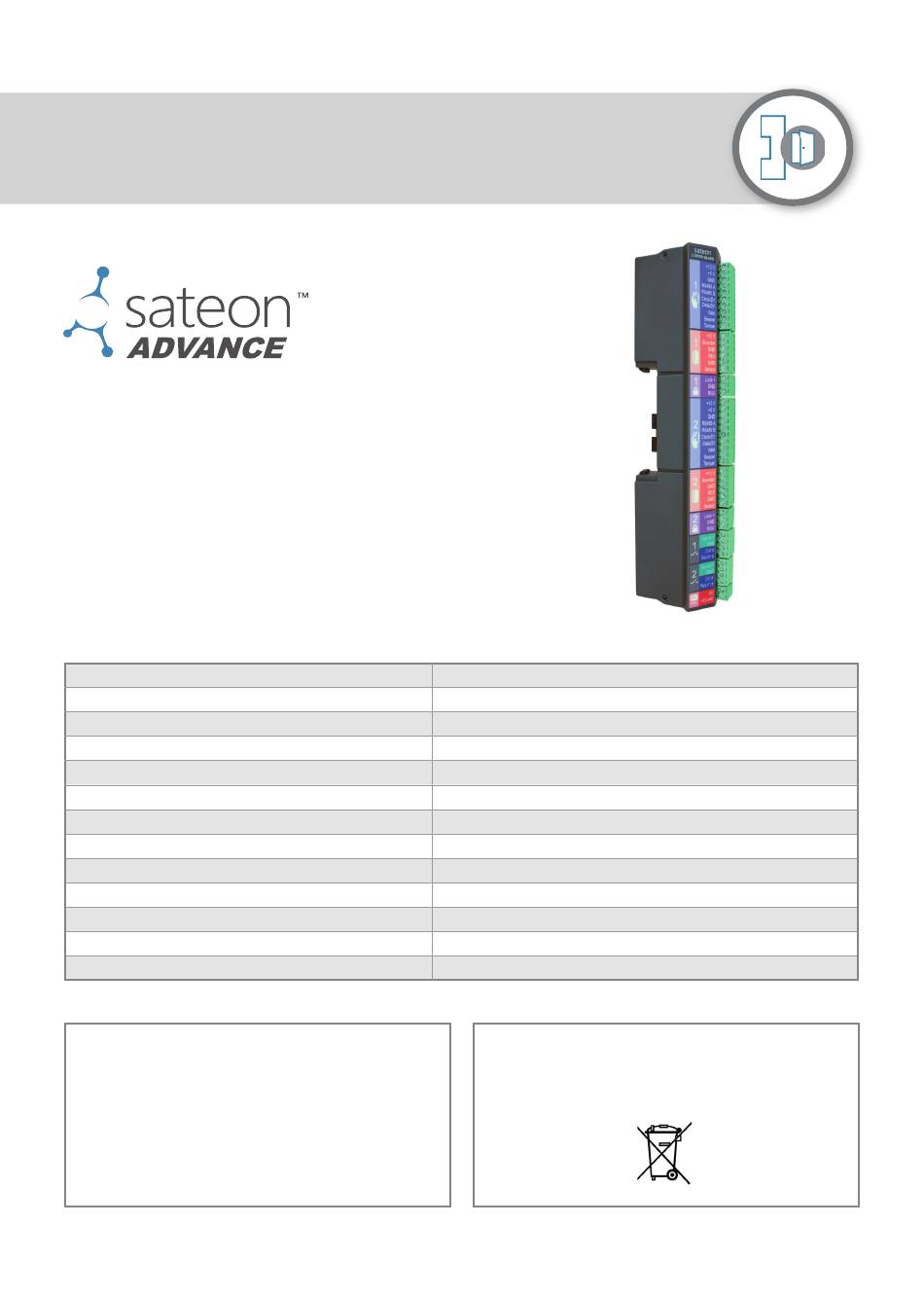

Sateon Advance 2-Door Blade
Installation Guide

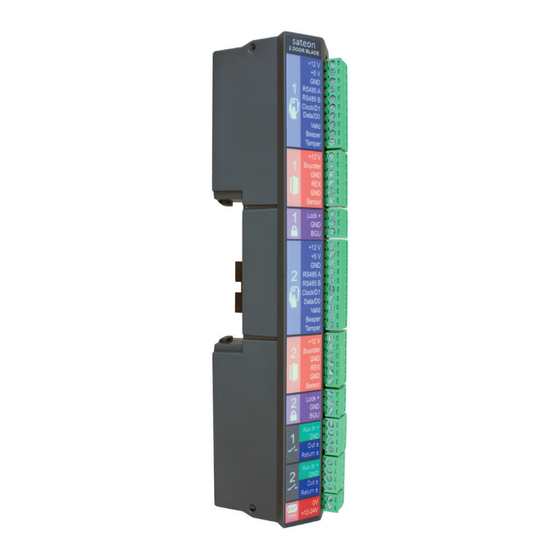

The Advance 2-Door Blade (Part No: SAT-ADV-BL-2D)
is a plug-in unit that can be purchased with either the
Advance Single-Blade Controller (Part No: SAT-ADV-C-
SNG-2D) or the Advance Multi-Blade Controller (Part
No: SAT-ADV-C-MLT-2D).
Each 2-Door Blade enables the connection of two
readers and two doors in Sateon access control
systems.
Clearly labelled connectors simplify the task.
Specifi cation
Overview
Lock Switching Capacity
Card Reader interface
Card Reader Supply, power limited
Tamper, Door Sensor, Exit Switch, Aux, Inputs
Break Glass Input
Sounder, Valid, Invalid Output
Aux Out
External Lock Input Supply
Operating Temperature
Humidity
Weight
Dimensions
Electromagnetic Compatibility
This product complies with the following standards,
following the provisions of EMC Directive 2014/30/EU:
EN 55022:2010 Class B
EN50130-4:2011 inc A1:2014
IEC 62599-2:2010
Sateon Advance 2-Door Blade
12V/24V, 4A max (Solid State output, current limited)
Wiegand, Clock/Data, RS485
12V 500 mA, 5V 200 mA total (both ports)
5V pullup (2k2), max 12V in
24V max
500 max sink to GND (solid state), 12V max in
Isolated 30V, 300mA max, internally fused
24V max, 8A max. Must be externally fused
0 to +49°C (32 to 120°F)
5-85±5% at 30±2°C (86±4°F)
140 g
197 x 60 x 28 mm
Please refer to www.grosvenortechnology.com/
legal-info/ for disposal instructions under EU
Directive 2012/19/EU.
Page 1
WEEE
