Version 1.1.0 October 2019

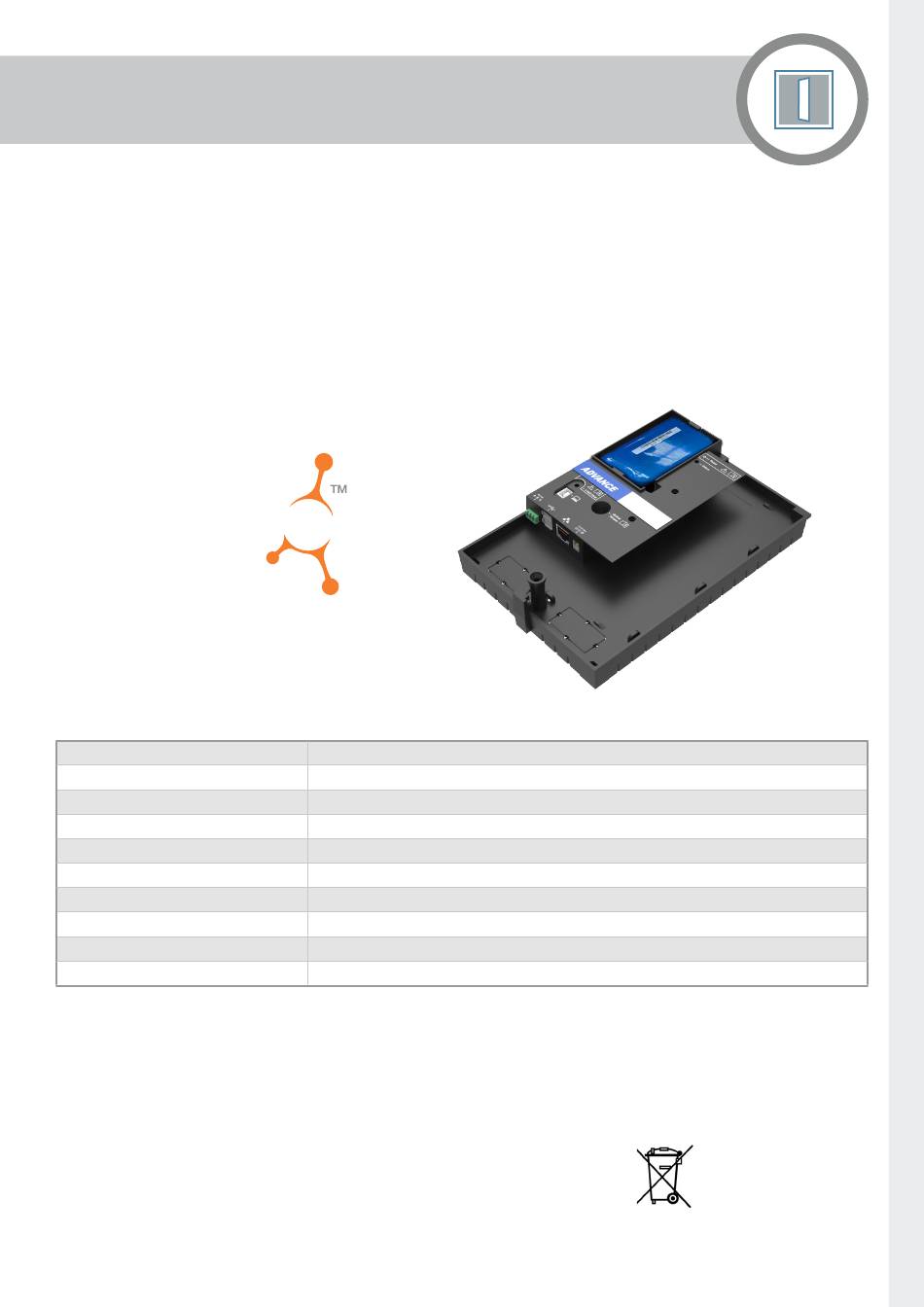

Janus C4 485 Line Header
Installation Guide
Part number:
JC4-ADV-C2-LH

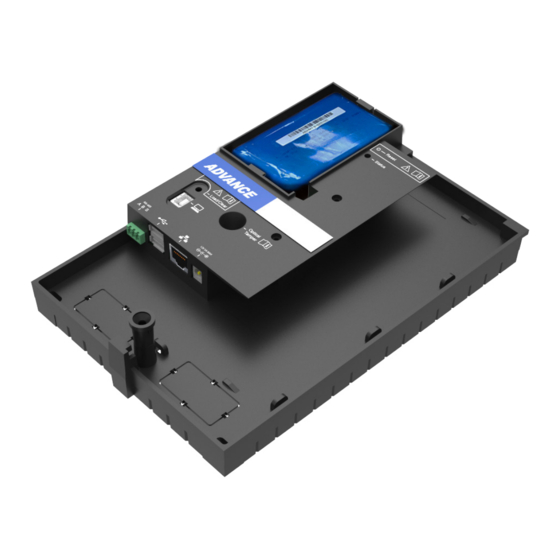

The Janus C4 485 Line Header is an access control system controller for use with Janus C4 host software. It allows
the communication of other either Single Controllers (Part No: JC4-ADV-C2-SNG) or Multi Controllers (Part No: JC4-
ADV-C2-MLT) on a RS 485 communication line. The Janus C4 485 Line Header is connected to the IP network and
allows communication to the other controllers on the RS 485 line.
The 485 Line Header can be used with different power supplies: a 12V external power supply (up to 5A), or
POE/POE+. It has an integral case with built in optical tamper. The controller supports both IP and RS485 host
communications.
janus
Specification
Overview
Power Input
Host Communications
Battery (optional)
Tamper
USB
Operating Temperature
Humidity
Weight
Dimensions
Electromagnetic Compatibility
This product complies with the following standards,
following the provisions of EMC Directive 2014/30/EU:
EN 55022:2010 Class B
EN50130-4:2011 inc A1:2014
IEC 62599-2:2010
C4
Janus C4 485 Line Header
12V (5A input), POE, POE+
Ethernet 10/100 BASE-T or RS485 2-wire 19.2k baud
4.2V Lithium Polymer (Grosvenor supplied, part no: ADV-BAT-S)
Optical Tamper
Dual USB 2.0 Type A (future use)
0 to +49°C (32 to 120°F)
5-85±5% at 30±2°C (86±4°F)
495g
242 x 167 x 46 mm
Page 1
WEEE
Please refer to www.grosvenortechnology.com/
legal-info/ for disposal instructions under EU
Directive 2012/19/EU
