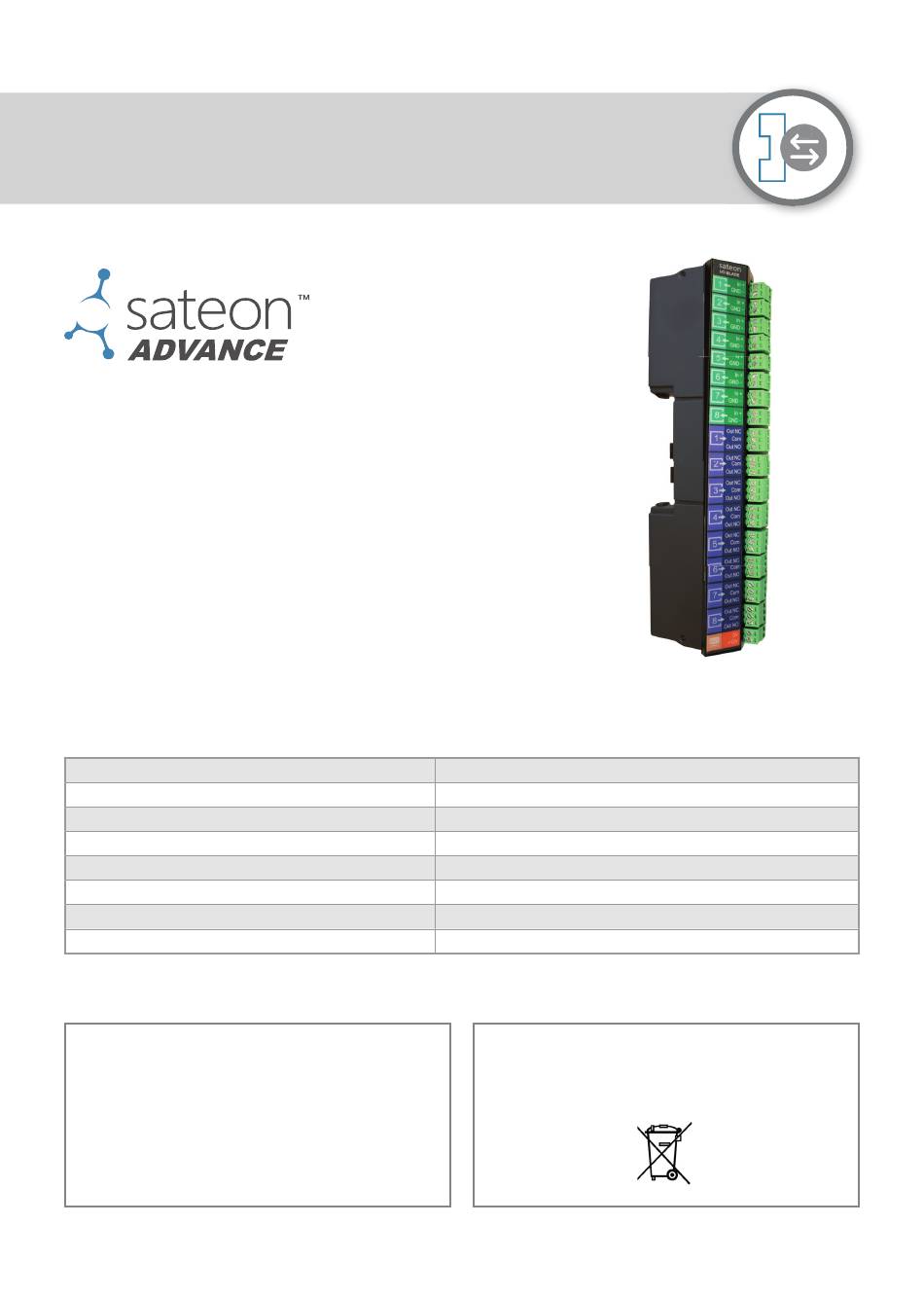

Sateon Advance I/O Blade
Installation Guide

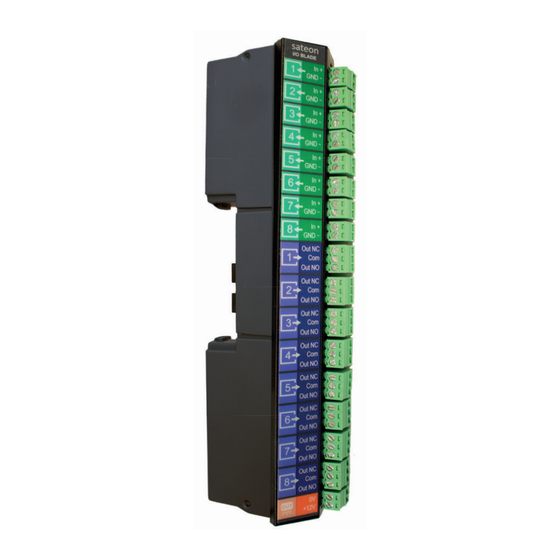

The Advance I/O Blade (Part No: SAT-ADV-BL-IO16) is
a plug-in unit that can be purchased with either the
Advance Single-Blade Controller (Part No: SAT-ADV-C-
SNG-IO) or the Advance Multi-Blade Controller (Part
No: SAT-ADV-C-MLT-IO).
Each I/O Blade enables the connection of up to 8
supervised inputs and 8 volt-free relay outputs.
Clearly labelled connectors simplify the task.
Specifi cation
Overview
Aux Inputs
Aux Out
External Power Out (power limited)
Operating Temperature
Humidity
Weight
Dimensions
Electromagnetic Compatibility
Following the provisions of EMC Directive 2014/30/
EU, this product complies with the following
standards:
EN 55022:2010 Class B
EN50130-4:2011 inc A1:2014
IEC 62599-2:2010
Sateon Advance IO16 Blade
5V pullup (2k2), max 12V in
30V, 3A max
12V, 500mA max
0 to +49°C (32 to 120°F)
5-85±5% at 30±2°C (86±4°F)
185 g
197 x 60 x 28 mm
Please refer to www.grosvenortechnology.com/
legal-info/ for disposal instructions under EU
Directive 2012/19/EU.
Page 1
WEEE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Grosvenor Sateon Advance I/O Blade
Summary of Contents for Grosvenor Sateon Advance I/O Blade
- Page 1 Sateon Advance I/O Blade Installation Guide The Advance I/O Blade (Part No: SAT-ADV-BL-IO16) is a plug-in unit that can be purchased with either the Advance Single-Blade Controller (Part No: SAT-ADV-C- SNG-IO) or the Advance Multi-Blade Controller (Part No: SAT-ADV-C-MLT-IO). Each I/O Blade enables the connection of up to 8 supervised inputs and 8 volt-free relay outputs.
- Page 2 Connections Auxiliary Input connections The inputs are supervised and may optionally be used with line resistors sateon for fault detection. I/O BLADE In + Contacts Only (no fault detection) In + Input switch In + In + In + Inputs Supervised (short/open circuit detect) Supervised (short/open circuit detect) In +...
- Page 3 Notes Power Blade LED indicators The Advance I/O Blade draws 12V power from the Status LED Controller. The main Blade LED Indicator is used to indicate The I/O Blade Power draw is summed as follows: activity and state. See also the status LED on the controller.
