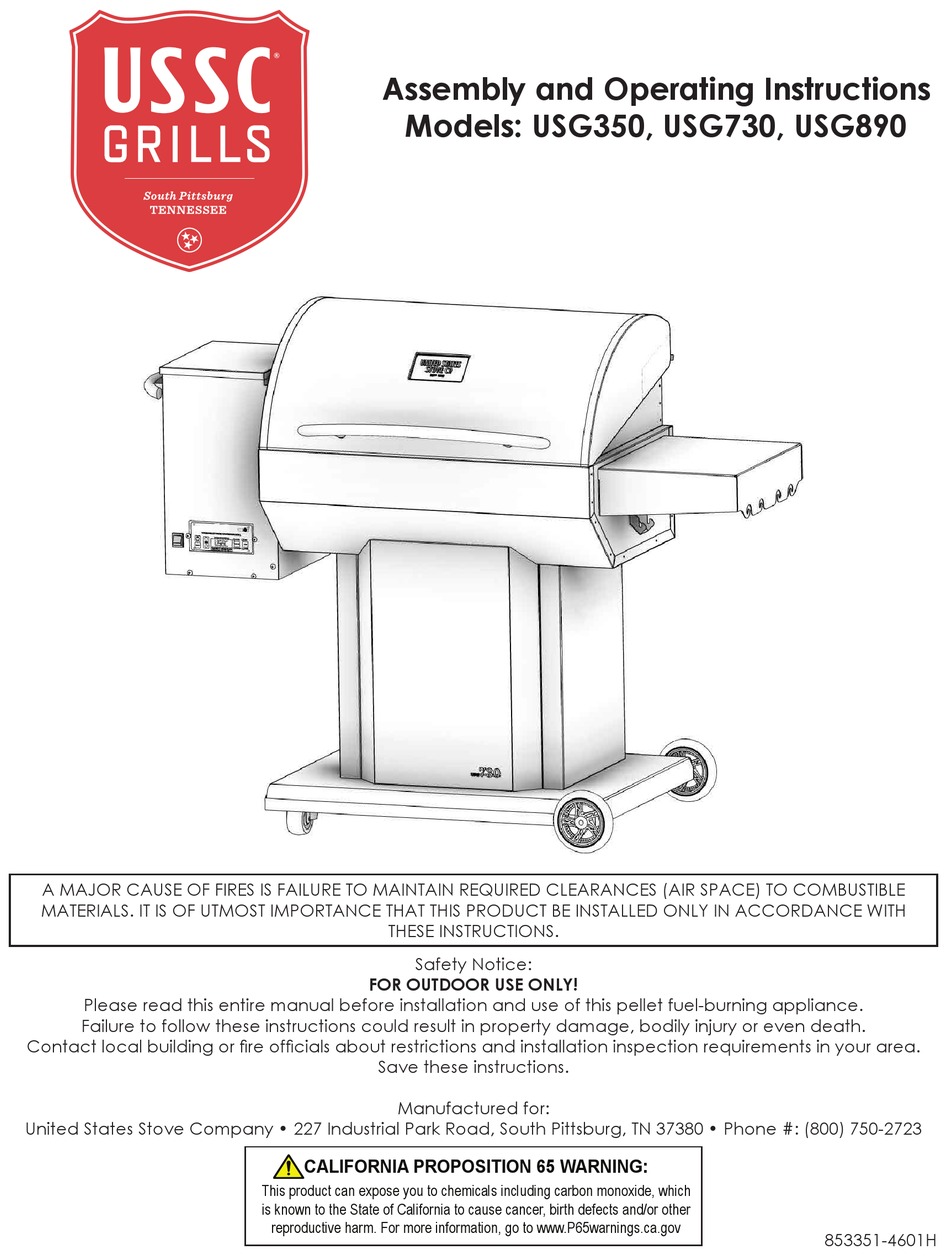

Assembly and Operating Instructions
Models: USG350, USG730, USG890
A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACE) TO COMBUSTIBLE
MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN ACCORDANCE WITH
THESE INSTRUCTIONS.
Safety Notice:
FOR OUTDOOR USE ONLY!
Please read this entire manual before installation and use of this pellet fuel-burning appliance.
Failure to follow these instructions could result in property damage, bodily injury or even death.
Contact local building or fire officials about restrictions and installation inspection requirements in your area.
Save these instructions.
Ce produit peut vous exposer à des produits chimiques, y compris le
monoxyde de carbone, qui est connu dans l'État de Californie pour causer
le cancer, des malformations congénitales et / ou d'autres problèmes de
Manufactured for:
reproduction. Pour plus d'informations, visitez www.P65warnings.ca.gov
United States Stove Company • 227 Industrial Park Road, South Pittsburg, TN 37380 • Phone #: (800) 750-2723
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon monoxide, which
is known to the State of California to cause cancer, birth defects and/or other
reproductive harm. For more information, go to www.P65warnings.ca.gov
853351-4601H
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for USSC USG350
Summary of Contents for USSC USG350
- Page 1 Assembly and Operating Instructions Models: USG350, USG730, USG890 A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACE) TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.
- Page 2 Introduction The entire family of United States Stove Company would like to thank you for purchasing your new pellet burning grill. At U.S. Stove, we build all of our products with a hands-on approach to detail and quality. Our old world team of Craftsmen take great pride in their superior workmanship to ensure you have years of trouble free use out of your pellet grill.
-
Page 3: Safety Information
Safety Information • IMPORTANT: Read this entire manual before installing outlet. Do not use an adapter plug or sever the and operating this product. Failure to do so may grounding plug. Do not route the electrical cord result in property damage, bodily injury, or even underneath, in front of, or over the grill. -
Page 4: Clearance To Combustibles
Clearance to Combustibles Your pellet grill must be installed with clearance to combustibles as shown below. Warning: Do not operate this grill under a ceiling or overhang. REAR WALL 24” 12” 12”... -
Page 5: Overall Dimensions
Overall Dimensions USG350 40.45” 40.45 44.08” 22.18” 44.08 USG730 45.18” 45.18 28.44” 56.30” 56.30 USG890 45.27” 45.27 28.44” 62.18” 62.18... -
Page 6: Tools And Materials Needed For Installation
Assembly Instructions READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THE APPLIANCE Parts List Description TOOLS AND MATERIALS NEEDED FOR INSTALLATION You will need a #3 phillip screw driver for assembly. Using a drill with a phillips bit will Pedestal, Right Side speed the assembly process. - Page 7 • Place drip pan. • Place main grilling surface on grill mounting bracket. • Align with searing station. *USG350 does not have the searing station. A second grill surface is provided. SAVE THESE INSTRUCTIONS Parts List...
- Page 8 Initial Firing Procedure TO BE USED ON INITIAL FIRING (Searing Station (if equipped) is installed by the manufacturer. DO NOT remove.) 1. Open the pellet hopper lid and check for foreign objects in the hopper. 2. Plug the grill into a three wire, grounded wall outlet. 3.
- Page 9 MODE TEMP PRIME SETPOINT SMOKE USSC GRILLS • USSCGRILLS.COM Adjust cook temperature Change temperature display Always make certain that the grill is setting level or is slightly tilted towards the drip bucket. STANDARD STARTUP SEQUENCE 1. Fill the hopper with pellets. Be sure to close and latch the hopper lid. Burn only pellets that are specifically manufactured for use in pellet grills and cookers.
-
Page 10: Operating Tips
STANDARD SHUTDOWN SEQUENCE 1. When you are ready to turn the grill off, make sure the searing station is off. The light will be off when the searing station is off. 2. Press the “Power” button. 3. The display will go blank and the grill will enter a shutdown mode where the blower will continue to run until it has reached a safe temperature. -
Page 11: Meat Probe
Note: These are suggested approximations only and intended as guidelines only. For best results please follow appropriate recipe. Meat Suggested Cooking Approximate Suggested Cook Time Type temp. Beef Hamburgers 425° F 10 min. on each side Beef T-Bone/Ribeye 450° F 10 to 20 min (depending on degree of doneness desired) turning once Beef Tenderloin... -
Page 12: Maintenance
Maintenance Failure to clean and maintain this unit as indicated may result in poor performance and hazardous situations. The maintenance schedule must be adjusted based on use to insure proper operation and maximum efficiency of your pellet grill. When you are performing any maintenance on your grill, make sure the unit has been turned off, allowing full shutdown sequence, and then unplugged from the power source. -
Page 13: Troubleshooting
Troubleshooting ERROR CODES Possible Causes Possible Remedies (Unplug grill first when possible) Error Code 1 - Over Temperature - The measured Call Customer service (800) 750-2723. temperature has exceeded the overtemp set point. Visually inspect the ignition system. Try to start the grill again. If Error Code 2 - No Start - The grill did not reach the warm the grill fails to start a second time call customer service (800) condition set point before the timer expired (15 Min.) - Page 14 Troubleshooting POWER FAILURE DURING USE Possible Causes Possible Remedies (Unplug grill first when possible) Observe the grill to make certain unsafe burning conditions do Power goes out during operation. not occur during the outage. Press the power and the prime button at the same time to To restart unit after power outage.
-
Page 15: Parts Diagram
Parts Diagram -15-... -
Page 16: Replacement Parts
Replacement Parts Description Model No. Part No. USG350 893118 Grilling Grate USG730 893119 USG890 893120 USG350 Searing Station USG730, 80825 USG890 USG350 893124 Drip Pan Assembly USG730 893125 USG890 893126 Temperature Probe 80826 USG350 29084 Flame Plate USG730, 29085 USG890 4”... - Page 17 Wiring Diagram (With Searing Station) -17-...
- Page 18 Wiring Diagram (Without Searing Station) -18-...
- Page 19 Notes -19-...
-
Page 20: How To Order Repair Parts
How to Order Repair Parts This manual will help you obtain efficient, dependable service from your grill, and enable you to order repair parts correctly. Keep this manual in a safe place for future reference. The full model number is located on the nameplate attached to the grill. When ordering repair parts, always give the following information as shown in this list: 1.
