BLU-JET LEGACY Assembly And Operators Manual page 236

LEGACY
Task
1. Mount (f) (AM3414)
light bracket to frame side
plate with (m) (BP3006)
x 1" hex cap screws and
(CP2660) 3/8" hex lock nuts,
(Nylock).
2. Insert (h) (AP3551)
grommet into (f). Install
(AP4415) Amber oval lamp
into grommet.
3. Attach (g) (AP3128)
to (n) (AP4415) Amber oval
lamp.
4. Insert (h) (AP3551)
grommet into (o) (AM3415)
front light bracket Left-hand
and (p) (AM3417) front light
bracket right-hand . Install
(AP4415) Amber oval lamps
into grommets.
5. Attach (g) (AP3128)
to (n) (AP4415) Amber oval
lamp.
6. Attach front light brackets
and (p) assemblies to
(AM3414) rear light brackets
on both sides with (m) (BP3006)
3/8" x 1" hex cap screws and
(CP2660) 3/8" hex lock nuts.
7. Install (q) (AM3418)
shield brackets with
(BP3006) 3/8" x 1" hex cap
screws and (c) (CP2660)
hex lock nuts, (Nylock) and
(r) (BP3118) 3/8" x 5" hex cap
screw.
8. Install (j) (AP2547)
reflector to outside of (f)
and top of (o).
9. Place (l) (AP2551) Red-orange
decal above red light and
(AP2548) Red decal below.
Red
Amber
g
AP3128

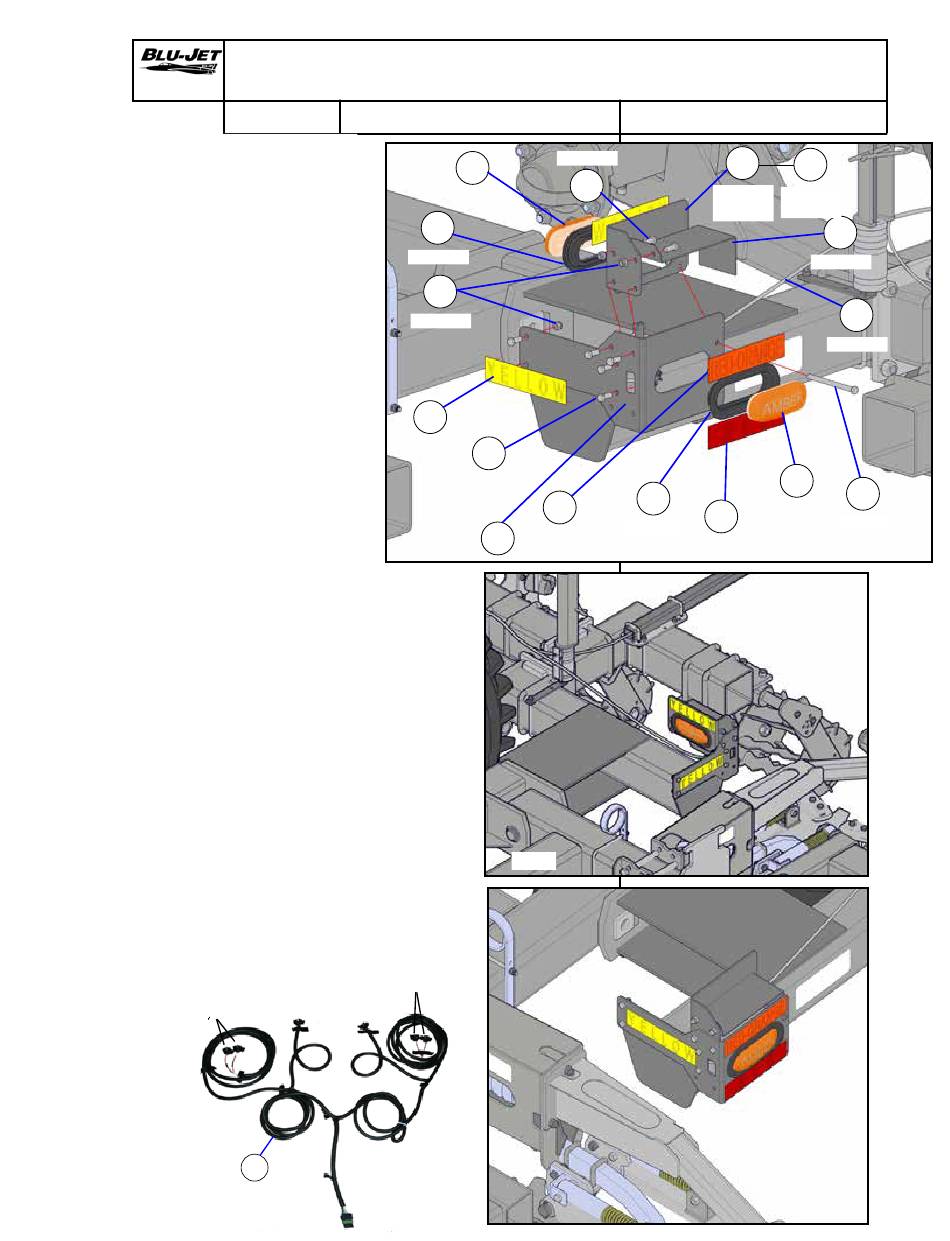

Light Kit Assembly and Mounting
Procedures
rear
n
3/8"
AP4415
(c)
h
AP3551
oval
(n)
c
CP2660
connector
j
oval
AP2547
BP3006
(n)
AM3414
connector
(o)
(f)
(c)
light
(m)
3/8"
yellow
(k)
Amber
Red
Illustrations
BP3006
m
m
h
l
AP3551
AP2551
f
Front
o p
AM3415
AM3417
LH
RH
q
AM3418
g
AP3128
n
r
AP4415
k
BP3118
AP2548
Rear
