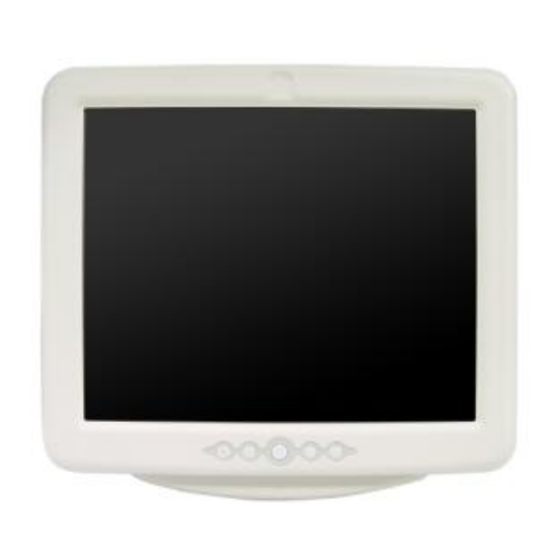

- Page 1 User’s Manual iOne-MP17ix (MP176) All-in-one Medical Panel PC Copyright© ,2013. All rights reserved The information in this document is subject to change without notice.
-
Page 2: Table Of Contents
Table of Contents I. Safety & Regulatory Notice………………………………………..….……. 3-11 A. FCC Class B……………………………………....…..……. 3-3 B. Electronic Magnetic Compatibility…………………......….. 4-8 C. Safety…………………………………………………......…. 9-10 D. Intended use………………….......…………………..…….. 11 II. Product Basic………………………………………......…..12-18 A. Specifications……………………………….....…..………... 12-14 B. The Packing / Outline / I/O / Control Buttons……......…….. 15-16 C. -
Page 3: Safety & Regulatory Notice
I. Safety & Regulatory Notice A. FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. -
Page 4: Electronic Magnetic Compatibility
B. Electronic Magnetic Compatibility Guidance and manufacturer’s declaration – electromagnetic emissions The iOne-MP176 is intended for use in the electromagnetic environment specified below. The user should assure the products are used in such an environment. Electromagnetic environment – guidance Emissions test Compliance RF emissions The iOne-MP176 uses RF energy only for its... - Page 5 For transmitters rated at a maximum output power not listed above, the recommended separation distanced in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
- Page 6 2 kV line(s) to 2 kV line(s) to earth earth <5 % UT <5 % UT Mains power quality should be interruptions and that of a typical commercial or (>95 % dip in (>95 % dip in voltage variations hospital environment. If the user on power supply of the iOne-MP176 requires for 0,5 cycle...
- Page 7 recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance Conducted 3 Vrms d = 1,2 150 kHz to 80 Vrms 61000-4-6 d = 1,2 80 MHz to 800 MHz d = 2,3 800 MHz to 2,5 GHz Radiated RF 3 V/m...
- Page 8 Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
-
Page 9: Safety
C. Safety ISO 7000-0434 : Caution, consult ACCOMPANYING DOCUMENTS. ISO 7000-1641 : Follow operating instructions or Consult instructions for use. IEC 60417 -5009 : STAND-BY. IEC 60417-5031 : Direct current. EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. - Page 10 – EN 60601-1-2 (IEC 60601-1-2) Medical electrical equipment Part 1-2: General requirements for safety Collateral standard: Electromagnetic compatibility; Requirements and tests Accessory equipment connected to the analog and digital interfaces must be in compliance with the respective nationally harmonized IEC standards (i.e.
-
Page 11: Intended Use
D. Intended Use The iOne-MP17ix is designed to serve as a medical PC for general purpose usage in the hospital environment and for diagnosis. It could be used for Surgical, Radiology, PACS (Picture Archiving Communication Systems), LIS (Lab Information Systems) and Electronic Medical Record purpose. -
Page 12: Product Basic
II. Product Basic A. Specifications Main System . Support Intel Sandy Bridge & Ivy Bridge mobile CPU w/ PGA988 package, 35W TDP (max.) and integrated graphics Chipset Intel BD82HM65 PCH Graphics . Intel HD Graphics HD 3000 or Intel HD Graphics HD 4000 Memory 8GB maximum, x 2 DDR3 SODIMM, 1066/1333MHz, 2GB/4GB/8GB... - Page 13 Life time 35 million activations Storage & Expansion 2.5” SATA HDD drive bay x 1 + anti-vibration kit Expansion slot . PCI-E (x16) x 1 or PCI x 1 (optional) . Card size: 100 x 155 x 18/0.5 mm or 68 x 220 x 18/0.5 mm .
- Page 14 (EN 60601-1:2006, ANSI/AAMI ES60601-1:2005, CAN/CSA C22.2 No. 60601-1:08) Options . WLAN – mini PCIe module w/ internal antenna x 2 Options . Bluetooth 2.1 (USB) . Battery pack . Power adaptor w/ 2.4m or 3.6m DC cable . Desktop stand...
-
Page 15: The Packing / Outline / I/O / Control Buttons
B. The Packing / Outline / I/O / Control Buttons Basic packing list -- . The medical PC: iOne-MP17ix . Power adaptor (Sinpro MPU101-105) . AC power cord . Touch stylus pen . DVD title (with drivers & user’s manual) . - Page 16 The I/O interface (basic configuration) The control buttons - From left to right - . Brightness (-) . Brightness (+) . Power on/off . Speaker volume (-) . Speaker volume (+)
-
Page 17: Others
C. Others To clean or disinfect the system To clean or disinfect the system, to avoid any damage to the touch panel and the plastic housing, please check below chemical resistance table to ensure you disinfectant does not contain harmful ingredients. We suggest to use Ethanol but do check with the personal who is responsible for disinfecting. - Page 18 Hydrochloric Acid - 6% Damage Hexane Damage Isopropanol (Isopropyl Alcohol)/Propanol Damage Methyl Ethyl Ketone Damage Heptane Damage Toluene 500g load with 5% Cresol --> OK Turpentine Damage Vm & P Naptha Damage Bleach (Sodium Hypochlorite，NaOCI) 500g load with 10% Bleach--> OK Benzyl alcohol Damage Hydrogen peroxide...
-
Page 19: Bios
III. BIOS Immediately after powering on the system, during the POST (Power On Self Test) stage, press the <Del> key to enter the BIOS setup utility program. Follow the menu & the keys instruction to modify the BIOS configuration & settings. Main --... - Page 20 Advanced -- ACPI Settings Enable ACPI Auto Configuration Enables or Disables BIOS ACPI Auto Configuration. Enable Hibernation Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS. ACPI Sleep State Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.
- Page 21 Hyper-Threading Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS optimized for Hyper-Threading Technology) Active Processor Cores Number of cores to enable in each processor package. Limit CPUID Maximum When CPUID instruction is executed, newer CPU may return a value greater than 3 which causes certain problem with specific operating systems.
- Page 22 This is typically required when the user wants to examine the physical parameters of the host adapters transmit PHY (eg examine the ‘eye’ on a scope or similar). IDE Legacy / Native Mode Selection. IDE Legacy / Native Mode Selection. Info Report Configuration System configration information report.
- Page 23 Set Parameters of Serial Port 4. Serial Port 5~6 Configuration(Optional) Serial Port 5 Configuration Set Parameters of Serial Port 5. Serial Port 6 Configuration Set Parameters of Serial Port 6.
- Page 24 Chipset -- System Agent (SA)/PCH-IO Configuration This screen provides information on System Agent and PCH parameters.
- Page 25 Boot -- Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup Numlock State Selects the keyboard NumLock state. Boot Beep Enables or disables boot status beep Quiet Boot Allows you to determine whether to display the Logo at system startup. Disabled displays normal POST message.
- Page 26 Security – Enables or disables the security chip. It is recommended that you use this function with the Administrator/User password.
- Page 27 Save & Exit – Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving the changes.
