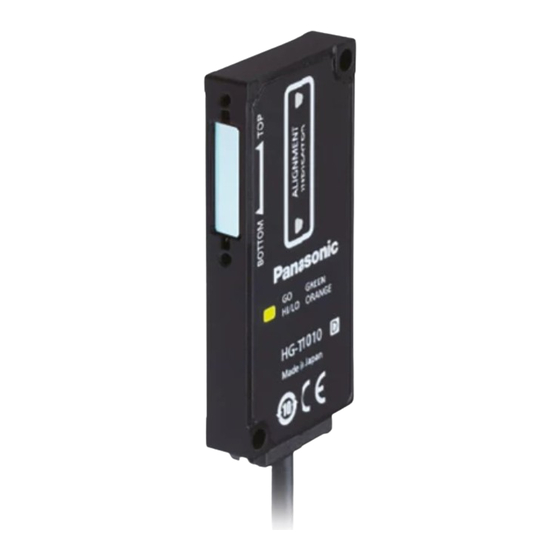

Panasonic HG-T1010 Instruction Manual

Transmission-Type Digital Displacement Sensor / Sensor Head
Thank you very much for purchasing Panasonic products. Read this Instruction Man-
ual carefully and thoroughly for the correct and optimum use of this product. Kindly
keep this manual in a convenient place for quick reference.
● Never use this product as a device for personnel protection.
● When using devices for personnel protection, use products that meet the laws
and standards for personnel protection that apply in each region or country, such
as OSHA, ANSI and IEC.
● This product inspects (judges / measures) objects. Do not use it to ensure safety,
such as preventing accidents that will affect human life or property.
● The laser light is dangerous. Do not look at or touch direct laser light or reflected
laser light.
This document provides a brief summary of mounting and other related information.
For detailed information, refer to the
https://panasonic.net/id/pidsx/global ).
1 STANDARDS AND REGULATIONS
● This product conforms to the standards and regulations below.
<European Directives>
EMC Directive
2 CONTENTS OF PACKAGE
Sensor Head (Emitter, Receiver)
Instruction Manual (English / Japanese, Chinese / Korean)
General Information for Safety, Compliance, and Instructions (23 languages) 1 pc.
3 FOR SAFE USE OF LASER PRODUCTS
IEC / JIS / GB
● In order to prevent user injury caused by a laser product, the following standards
have been established in the IEC, JIS and GB standards.
IEC: IEC 60825-1
-2014
JIS: JIS C 6802
-2014
GB: GB 7247.1
-2012
These standards classify laser products by level of laser hazard, and specify safe-
ty preventive measures to be implemented for each class.
This product is equivalent to a "Class 1 Laser Product" based on JIS C 6802
"Radiation Safety Standards for Class 1 Laser Products".
● Explanation of hazard levels
Classification
Class 1 A laser that is safe when operated under operating conditions that can be reasonably foreseen.
● The following label is affixed to the side of this product based on the safety stan-
dards for laser products.
● Warning label
Emitter side
FDA
● Export to the USA.
When included in equipment for export to the USA, the product is subject to the
regulations of the laser standards of the FDA (Food and Drug Administration). In
order to prevent user injury caused by a laser product, Part 1040 (Performance
Standards for Light-Emitting Products) of the FDA standards has been estab-
lished. These standards classify laser products by level of laser hazard, and spec-
ify safety preventive measures to be implemented for each class.
This product is based on the FDA Standard(FDA 21 CFR 1040. 10 and 1040.11),
according to Laser Notice No. 50.(Class 1 Laser Product)
The following label is affixed to this product based on FDA rules.
● Recognition / ID label
INSTRUCTION MANUAL
HG-T1010
CMJE-HGT1010 No.0065-84V
WARNING
HG-T Series User's Manual (our Website:
" "
Summary of hazard evaluation
<Label position>
<Label position>
Emitter side
4

DESCRIPTION OF PARTS

1
1 Laser emission indicator (Green)
2 Light-emitting face
3 Light-receiving face
Beam alignment indicator / TOP
4
(Orange / Green)
Beam alignment indicator / BOTTOM
5
(Orange / Green)
Judgment output indicator
6
(Orange / Green)
7 Sensor head connection cable connector Connects to the sensor head connection cable.
Notes: 1) For details on beam alignment, refer to "
2) For detailed information on beam states, refer to the "HG-T Series User's Manual" (our Website: https://
panasonic.net/id/pidsx/global ).
5 MOUNTING
1 pc.
● Mounting the sensor head
1 pc. each
● Do not allow contaminants that will refract light such as water, oil or finger-
prints, or contaminants that will block light such as dust or dirt, to collect on the
light-emitting and light-receiving faces of the sensor head If there is dirt or other
contamination on a surface, wipe with lens paper or a soft cloth that will not leave
lint or dust. If there is significant dirt, wipe with a cotton swap or other material
that has been moistened with absolute alcohol.
● A serial number is indicated on the reverse sides of the light-emitting and light-re-
ceiving faces of the product. Always combine an emitter and receiver with identi-
cal serial numbers.
● Use M3 screws (obtain separately) to mount the product.
Tighten to a torque of 0.5N∙m or less.
-2014
Serial number
● Attaching the sensor head and Sensor Head Connection Cable CN-HT-C□ (op-
tional)
● Always use Sensor Head Connection Cable CN-HT-C□ (optional) to connect the
product to the controller.
● If the sensor head connection cable is connected to the controller, always turn off
the controller power before inserting or removing the connectors.
● Do not grasp the cable to pull out or insert the connectors. Wires may break if
excessive stress is applied to the cable.
● After inserting the connectors, verify that both are attached firmly. If loose, a con-
nector may fall out and cause an error.
● The sensor head connection cable branches into two cables. The cables are
identical and can be connected to either the emitter or receiver
Mounting procedure
1. Insert the sensor head connecting cable to the sensor head connection cable con-
nector of the sensor head with the mark aligned.
2. Turn the fastening ring on each sensor head connection cable connector in the
direction of the arrow to fasten firmly.
<Emitter>
2 3
7 7
Name
Lights while laser light is emitted.
Face that emits the laser.
Face that receives the laser.
• Lights green: Beam is aligned. (Note 1)
• OFF: Laser light is not received. (Note 1)
• Blinks green: Beam is aligned, but the light received is faint. (Note 2)
• Lights orange: Beam is aligned, but light received is intense due to
stray light or otherwise. (Note 2)
• Blinks orange: Beam is aligned, but partially blocked due to an obsta-
cle or otherwise. (Note 2)
• Lights green: Controller judgment output is within the set range.
• Lights orange: Controller judgment output is outside the set range.
• OFF: Beam alignment function is in use.
BEAM ALIGNMENT AND REFERENCE WAVEFORM REGISTRATION".
6
8mm
M3 screw
(Please obtain separately)
Mark
Mark
1
1
Sensor head connection cable
CN-HT-C□ (Optional)
Sensor head connection cable connector
2
2
Fastening ring
<Receiver>
4
5
6
Function
Mounting hole dimensions
<On emitter> <On receiver>
24mm 24mm
The mounting holes in the emitter and
receiver are bilaterally symmetric.
