Read Instructions Before Using Your New Badger 100

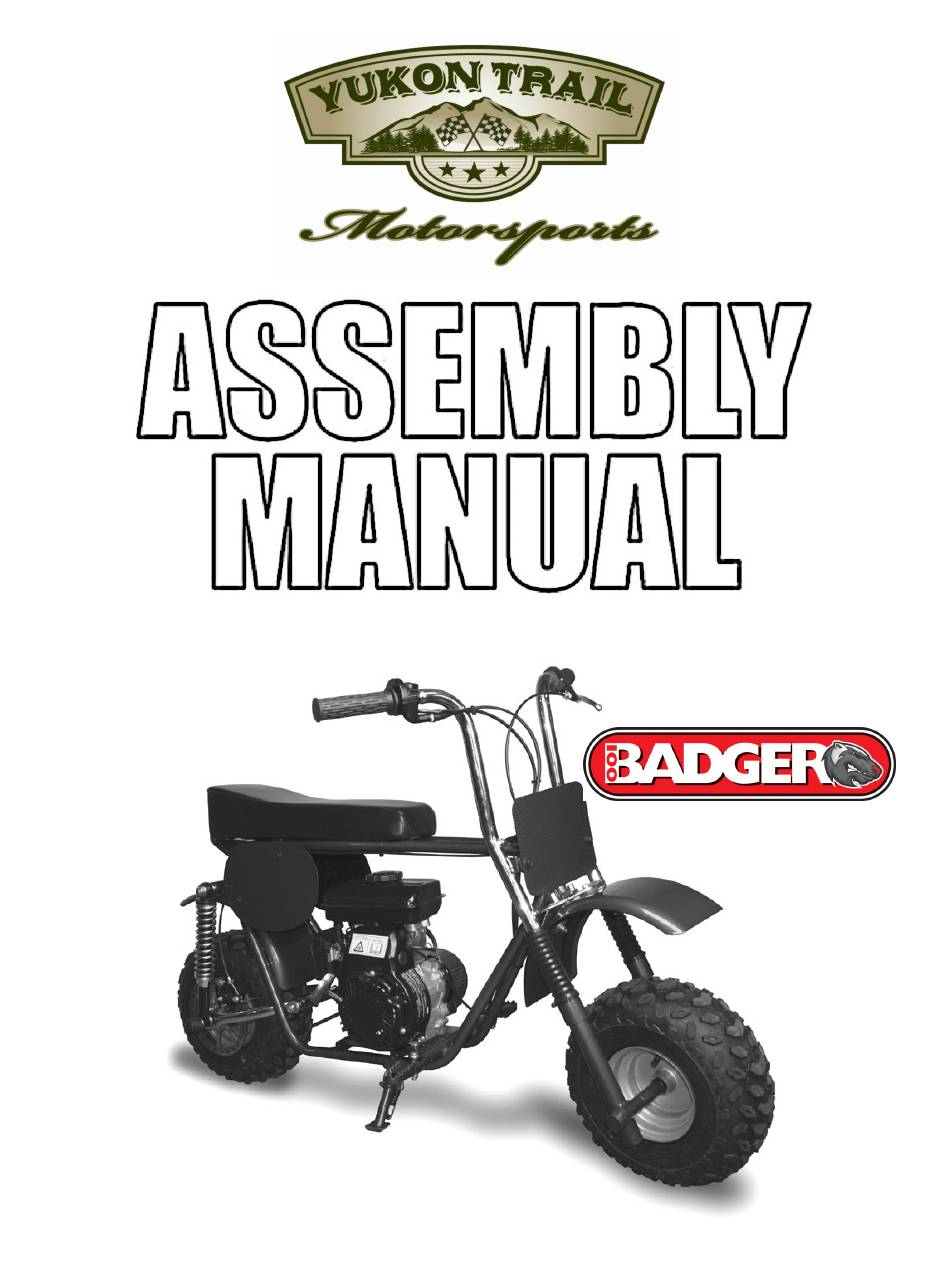

Page 1 Read Instructions Before Using Your New Badger 100...
Page 2 Badger 100 Mini Bike Assembly Manual 1) Open the carton box, taking out the vehicle and its accessories box. 2) Release the steel wire on the footrest, and let the footrest return to the original position. DO NOT RETURN STORE. For questions regarding assembly and use,...
Page 3 3) Loosen the steel wire for packing the front fork, and put the front fork on the frame. 4) Taking out the front fork assembly set in the accessories box. The bolt assembles the fork onto frame as the following order: the washer, ring, upper bar on the fork, holder on the frame, ring, bellow bar on the fork, and washer, at last tighten the locknut.
Page 4 5) Take off the front fender in the carton. Assembling the fender on the front fork by bolts, rubber washers and lock nuts. The rubber washers are put on the both side of fender. Please note that the warning label should be forward.
Page 5 /locknuts. Congratulations! Your Badger 100 Mini Bike is ready for use. DO NOT RETURN STORE. For questions regarding assembly and use,...
