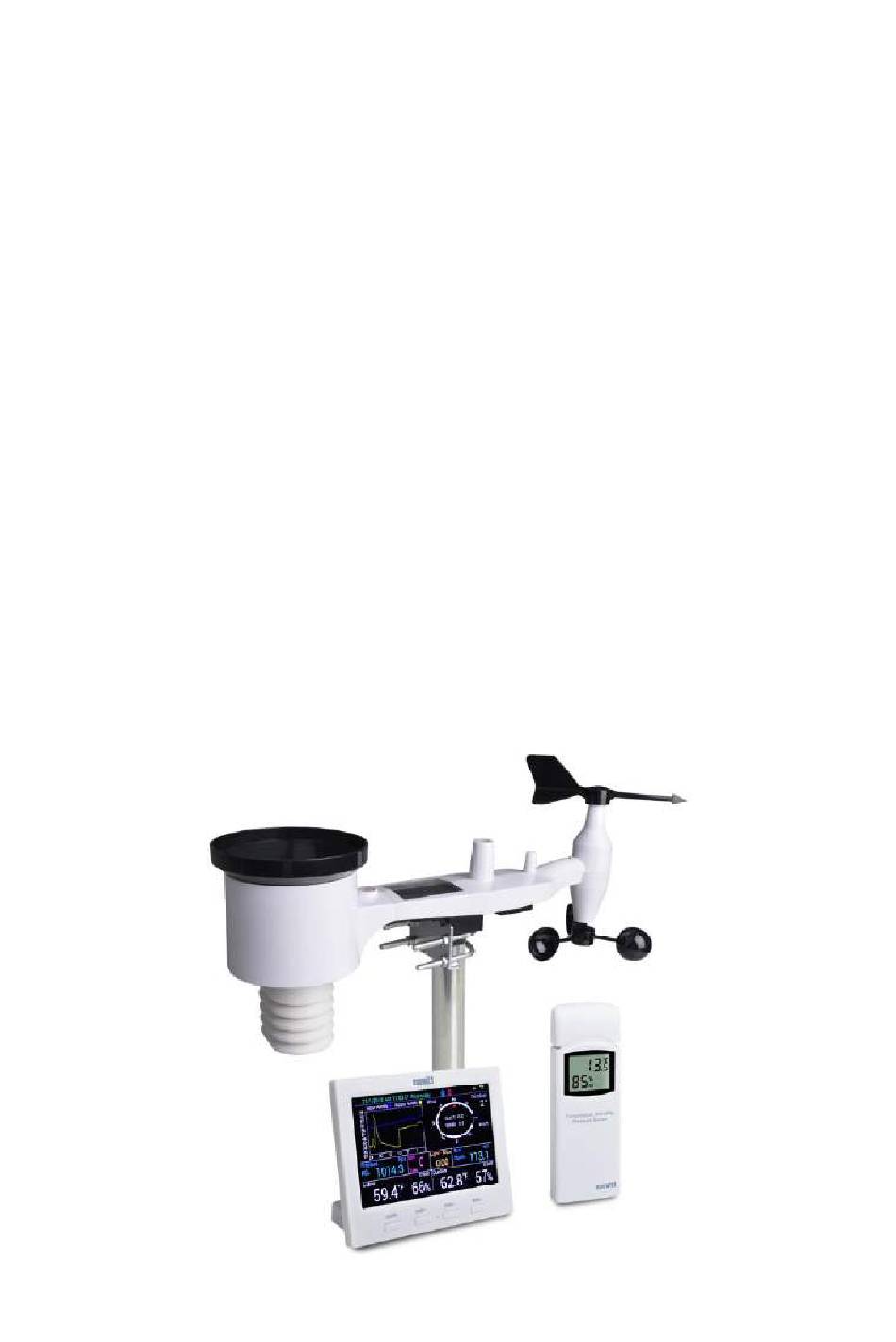

TFT COLOR DISPLAY WIFI WEATHER
STATION

Operation Manual

Model: HP3500
Thank you for purchasing this TFT Color Display Weather Station! This
device provides accurate weather readings and is Wi-Fi capable to stream data
from the weather station to Internet based weather services.
This manual will guide you, step-by-step, through setting up your weather
station and console, and understanding the operation of your weather station.
Use this manual to become familiar with your professional weather station
and save it for future reference.
