To remove the screen (continued from previous procedure)

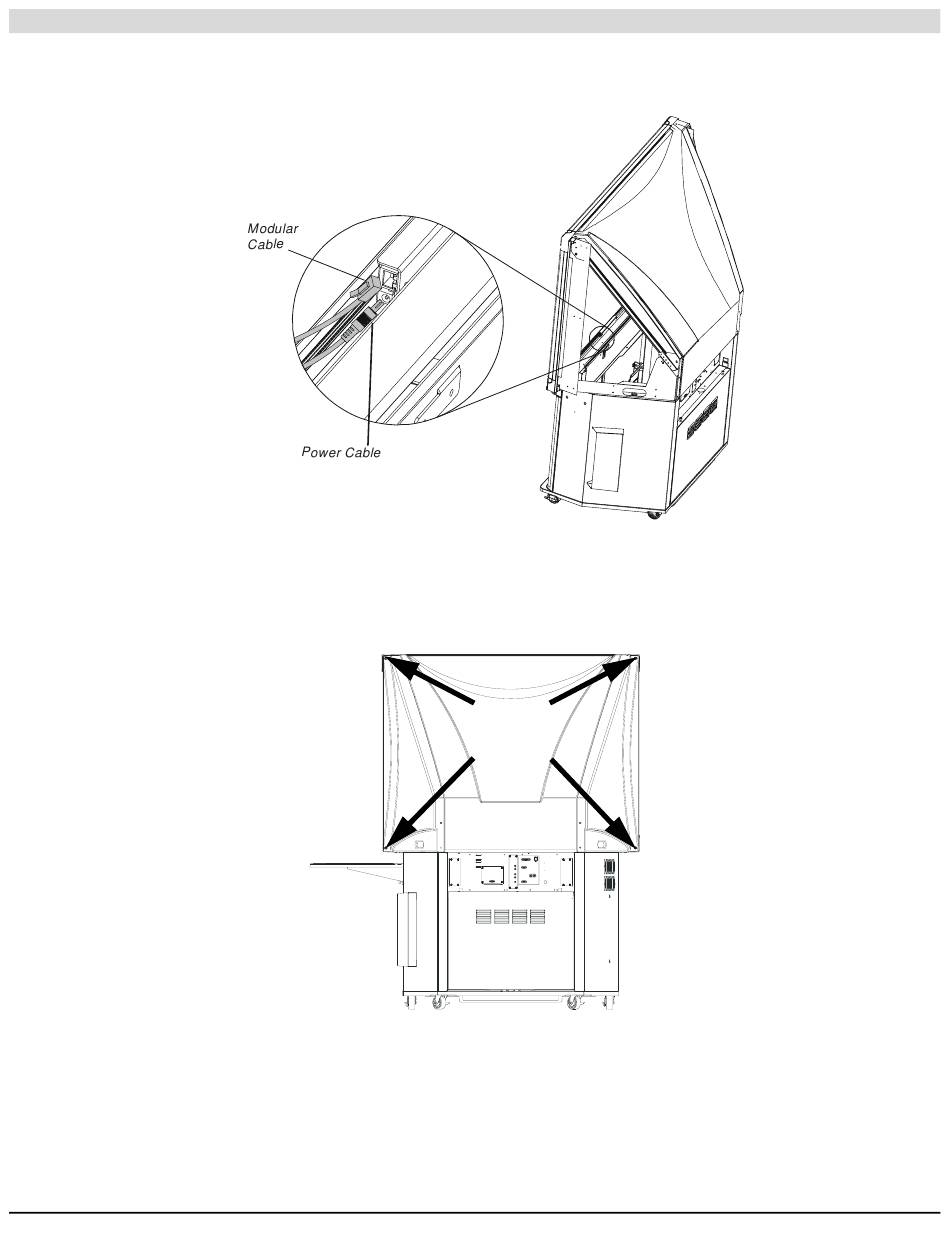

1. Reach inside the cabinet to disconnect the modular and power cables at the bottom of the screen. Don't touch the back
of the screen.
2. Loosen the four captive fasteners on the back corners of the interactive whiteboard using a Phillips® No. 2 screwdriver.
Start with the two bottom fasteners; then loosen the two at the top (you may require a step stool to reach these
fasteners).
NOTE: Maintain constant pressure on the screwdriver to avoid damaging the screw heads.
NOTE: Even after you completely loosen the captive fasteners, the screen remains suspended on two keyhole slots
near the top of the cabinet.
4 of 6 Removing the Side Panel, Screen and Cabinet Top of a 3000i
Corner
Captive
Fasteners
